37、Flink项目 2、实时热门商品统计

一、 项目剖析

基本需求:
统计近1小时内的热门商品,每5分钟更新一次
热门度用浏览次数(“pv”)来衡量

解决思路
在所有用户行为数据中,过滤出浏览(“pv”)行为进行统计

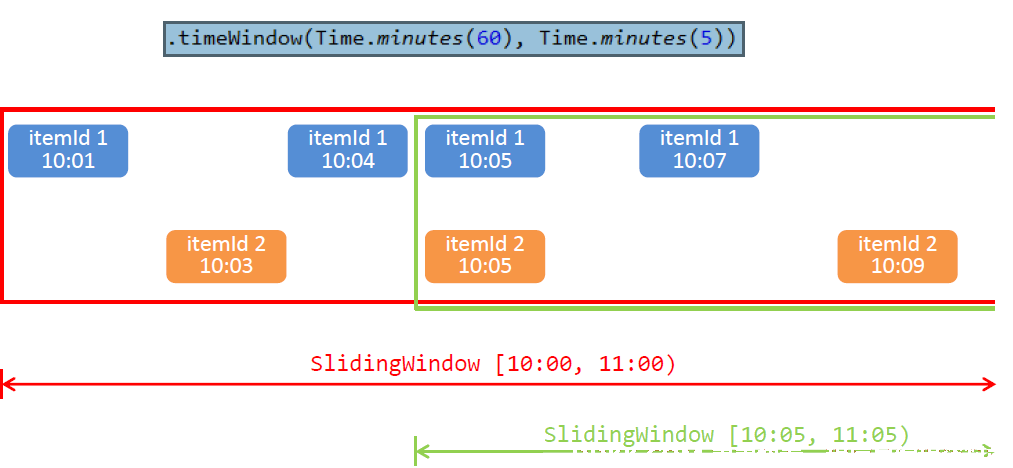

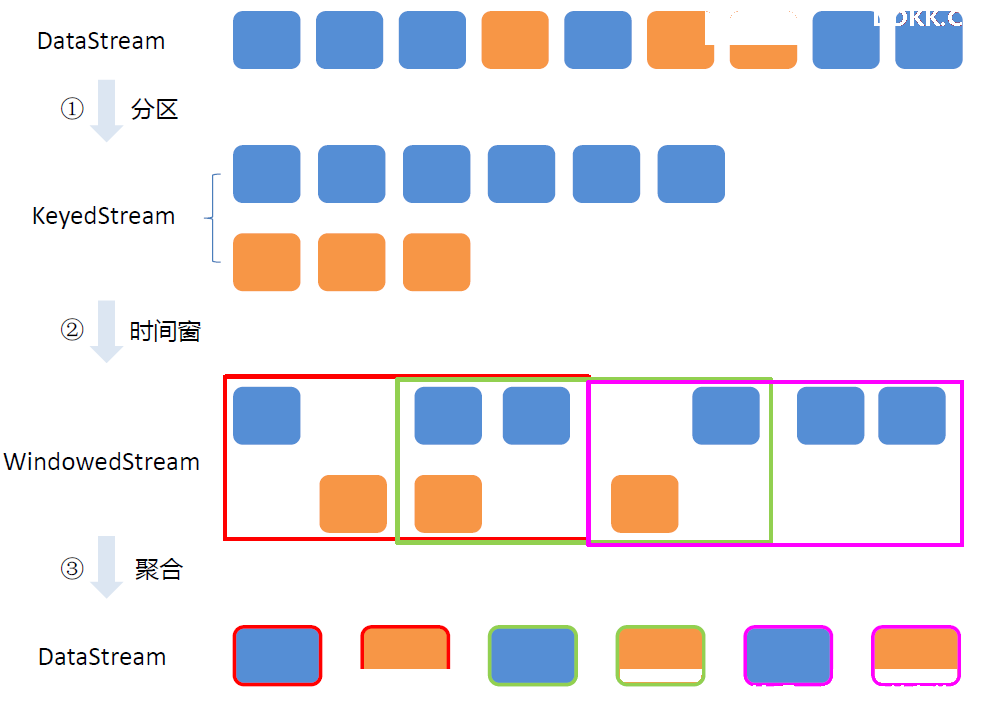

构建滑动窗口,窗口长度为1小时,滑动距离为5分钟

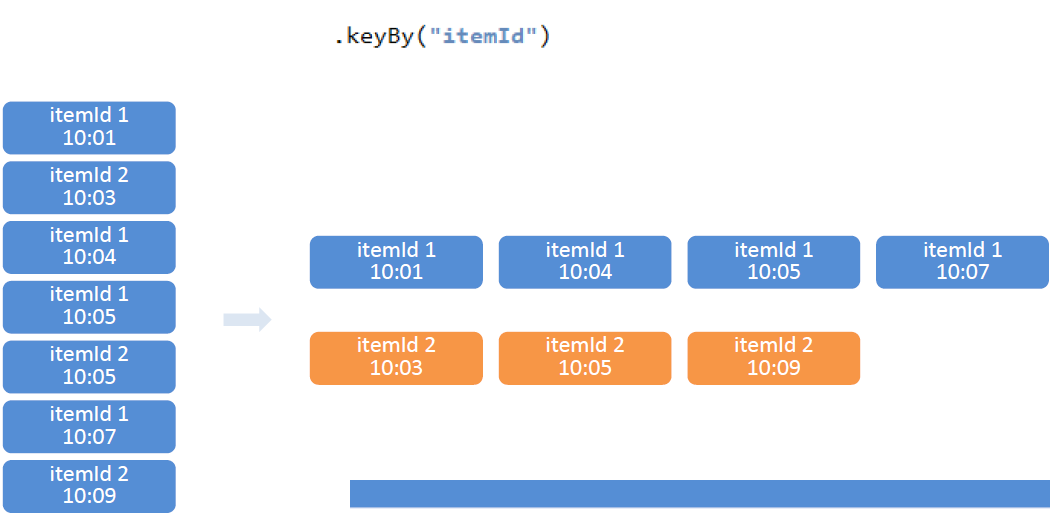

按照商品Id进行分区


设置时间窗口


时间窗口(timeWindow)区间为左闭右开

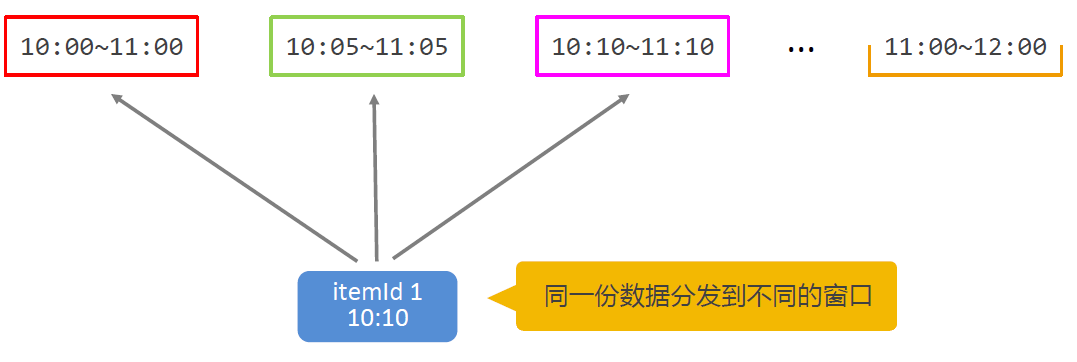

同一份数据会被分发到不同的窗口


窗口聚合


窗口聚合策略——每出现一条记录就加一


实现 AggregateFunction 接口
in t e r f a c e A g g r e g a t e F u n c t i o n < I N , A C C , O U T > \color{red}{interface AggregateFunction<IN, ACC, OUT>} interfaceAggregateFunction<IN,ACC,OUT>

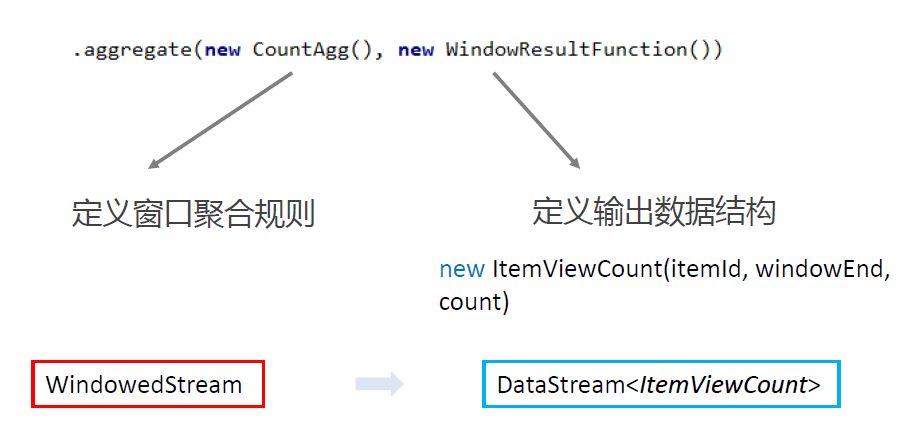

定义输出结构 —— ItemViewCount(itemId, windowEnd, count)

实现 WindowFunction 接口
 in t e r f a c e W i n d o w F u n c t i o n < I N , O U T , K E Y , W e x t e n d s W i n d o w > \color{red}{interface WindowFunction<IN, OUT, KEY, W extends Window>} interfaceWindowFunction<IN,OUT,KEY,WextendsWindow>
•IN: 输入为累加器的类型,Long
•OUT: 窗口累加以后输出的类型为 ItemViewCount(itemId: Long, windowEnd: Long, count: Long), windowEnd为窗口的 结束时间,也是窗口的唯一标识
•KEY: Tuple泛型,在这里是 itemId,窗口根据itemId聚合
•W: 聚合的窗口,w.getEnd 就能拿到窗口的结束时间

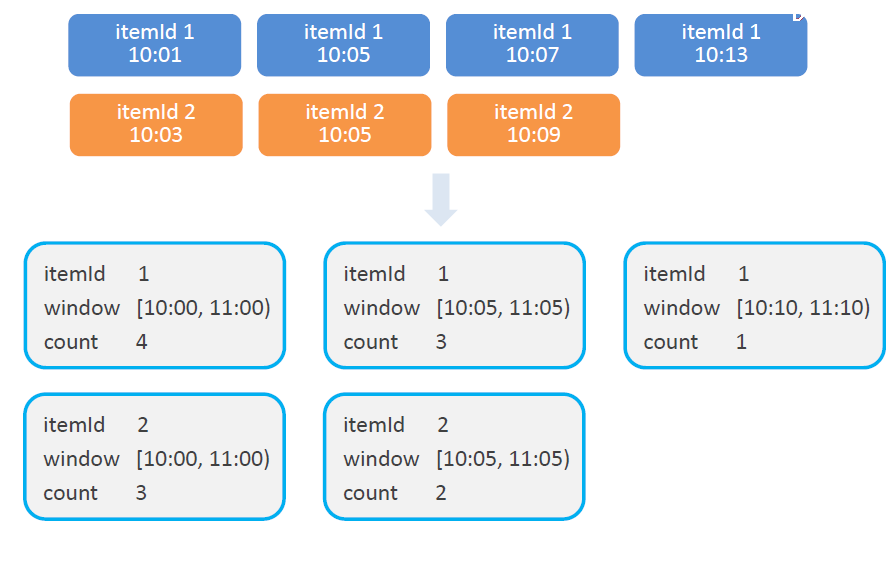

窗口聚合示例

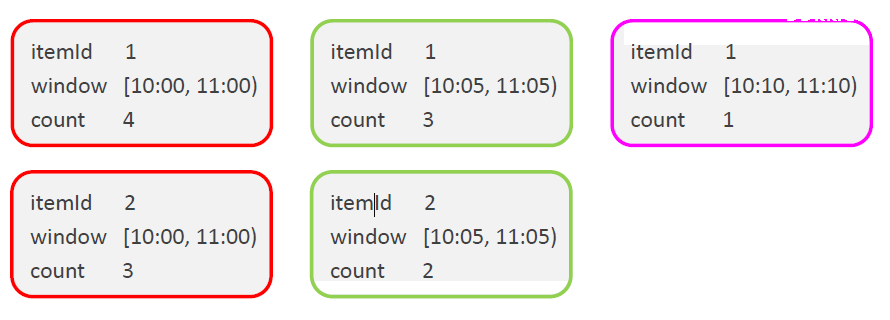

进行统计整理 —— keyBy(“windowEnd”)


状态编程


最终排序输出——keyedProcessFunction

1、 针对有状态流的底层API;
2、 KeyedProcessFunction会对分区后的每一条子流进行处理;

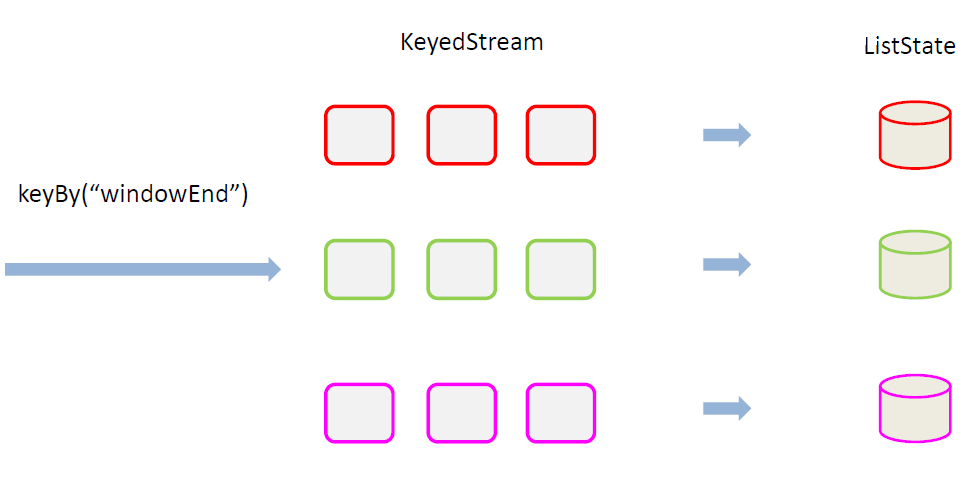

3、 以windowEnd作为key,保证分流以后每一条流的数据都在一个时间窗口内;
4、 从ListState中读取当前流的状态,存储数据进行排序输出;

用ProcessFunction定义KeyedStream的处理逻辑

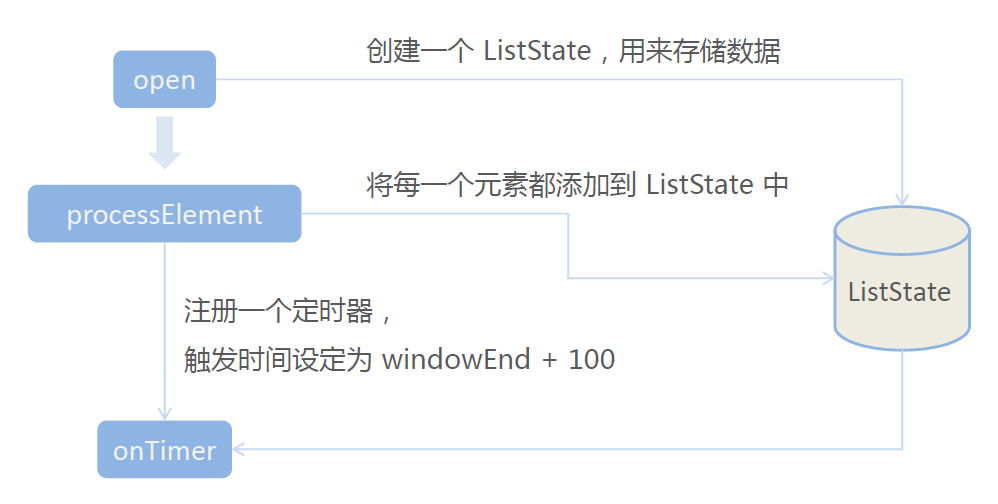

分区之后,每个KeyedStream都有其自己的生命周期

1、 open:初始化,在这里可以获取当前流的状态;
2、 processElement:处理流中每一个元素时调用;
3、 onTimer:定时调用,注册定时器Timer并触发之后的回调操作;



二、pom文件配置

依赖配置:

<dependency>
      <groupId>org.apache.flink</groupId>
      <artifactId>flink-java</artifactId>
      <version>1.10.1</version>
      <scope>provided</scope>
    </dependency>
    <dependency>
      <groupId>org.apache.flink</groupId>
      <artifactId>flink-streaming-java_2.11</artifactId>
      <version>1.10.1</version>
      <scope>provided</scope>
    </dependency>
    <dependency>
      <groupId>org.apache.flink</groupId>
      <artifactId>flink-connector-kafka_2.11</artifactId>
      <version>1.10.1</version>
    </dependency>
    <dependency>
      <groupId>org.apache.flink</groupId>
      <artifactId>flink-core</artifactId>
      <version>1.10.1</version>
    </dependency>
    <dependency>
      <groupId>org.apache.flink</groupId>
      <artifactId>flink-clients_2.11</artifactId>
      <version>1.10.1</version>
    </dependency>
    <dependency>
      <groupId>org.apache.flink</groupId>
      <artifactId>flink-connector-redis_2.11</artifactId>
      <version>1.1.5</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/mysql/mysql-connector-java -->
    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>8.0.19</version>
    </dependency>
    <dependency>
      <groupId>org.apache.flink</groupId>
      <artifactId>flink-statebackend-rocksdb_2.11</artifactId>
      <version>1.10.1</version>
    </dependency>
    <!-- Table API 和 Flink SQL -->
    <dependency>
      <groupId>org.apache.flink</groupId>
      <artifactId>flink-table-planner-blink_2.11</artifactId>
      <version>1.10.1</version>
    </dependency>
    <dependency>
      <groupId>org.apache.flink</groupId>
      <artifactId>flink-table-planner_2.11</artifactId>
      <version>1.10.1</version>
    </dependency>
    <dependency>
      <groupId>org.apache.flink</groupId>
      <artifactId>flink-table-api-java-bridge_2.11</artifactId>
      <version>1.10.1</version>
    </dependency>
    <dependency>
      <groupId>org.apache.flink</groupId>
      <artifactId>flink-streaming-scala_2.11</artifactId>
      <version>1.10.1</version>
    </dependency>
    <dependency>
      <groupId>org.apache.flink</groupId>
      <artifactId>flink-table-common</artifactId>
      <version>1.10.1</version>
    </dependency>
    <dependency>
      <groupId>org.apache.flink</groupId>
      <artifactId>flink-csv</artifactId>
      <version>1.10.1</version>
    </dependency>

三、代码

3.1 POJO类

UserBehavior

package com.zqs.flink.project.hotitemanalysis.beans;

/**
 * @remark  定义一个输入类型的class
 */

public class UserBehavior {


    // 定义私有属性
    private Long userId;
    private Long itemId;
    private Integer categoryId;
    private String behavior;
    private Long timestamp;

    public UserBehavior() {


    }

    public UserBehavior(Long userId, Long itemId, Integer categoryId, String behavior, Long timestamp) {


        this.userId = userId;
        this.itemId = itemId;
        this.categoryId = categoryId;
        this.behavior = behavior;
        this.timestamp = timestamp;
    }

    public Long getUserId() {


        return userId;
    }

    public void setUserId(Long userId) {


        this.userId = userId;
    }

    public Long getItemId() {


        return itemId;
    }

    public void setItemId(Long itemId) {


        this.itemId = itemId;
    }

    public Integer getCategoryId() {


        return categoryId;
    }

    public void setCategoryId(Integer categoryId) {


        this.categoryId = categoryId;
    }

    public String getBehavior() {


        return behavior;
    }

    public void setBehavior(String behavior) {


        this.behavior = behavior;
    }

    public Long getTimestamp() {


        return timestamp;
    }

    public void setTimestamp(Long timestamp) {


        this.timestamp = timestamp;
    }

    @Override
    public String toString() {


        return "UserBehavior{" +
                "userId=" + userId +
                ", itemId=" + itemId +
                ", categoryId=" + categoryId +
                ", behavior='" + behavior + '\'' +
                ", timestamp=" + timestamp +
                '}';
    }
}

ItemViewCount

package com.zqs.flink.project.hotitemanalysis.beans;

/**
 * @remark  定义一个输出类型的class
 */

public class ItemViewCount {


    private Long itemId;
    private Long windowEnd;
    private Long count;

    public ItemViewCount() {


    }

    public ItemViewCount(Long itemId, Long windowEnd, Long count) {


        this.itemId = itemId;
        this.windowEnd = windowEnd;
        this.count = count;
    }

    public Long getItemId() {


        return itemId;
    }

    public void setItemId(Long itemId) {


        this.itemId = itemId;
    }

    public Long getWindowEnd() {


        return windowEnd;
    }

    public void setWindowEnd(Long windowEnd) {


        this.windowEnd = windowEnd;
    }

    public Long getCount() {


        return count;
    }

    public void setCount(Long count) {


        this.count = count;
    }

    @Override
    public String toString() {


        return "ItemViewCount{" +
                "itemId=" + itemId +
                ", windowEnd=" + windowEnd +
                ", count=" + count +
                '}';
    }
}

3.2 热门商品-纯Java代码

HotItems

package com.zqs.flink.project.hotitemanalysis;

import com.zqs.flink.project.hotitemanalysis.beans.ItemViewCount;
import com.zqs.flink.project.hotitemanalysis.beans.UserBehavior;
import org.apache.flink.streaming.api.TimeCharacteristic;
import org.apache.flink.api.common.functions.AggregateFunction;
import org.apache.flink.api.common.serialization.SimpleStringSchema;
import org.apache.flink.api.common.state.ListState;
import org.apache.flink.api.common.state.ListStateDescriptor;
import org.apache.flink.api.java.tuple.Tuple;
import org.apache.flink.configuration.Configuration;
import org.apache.flink.shaded.guava18.com.google.common.collect.Lists;
import org.apache.flink.streaming.api.TimeCharacteristic;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.KeyedProcessFunction;
import org.apache.flink.streaming.api.functions.timestamps.AscendingTimestampExtractor;
import org.apache.flink.streaming.api.functions.windowing.WindowFunction;
import org.apache.flink.streaming.api.windowing.time.Time;
import org.apache.flink.streaming.api.windowing.windows.TimeWindow;
import org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumer;
import org.apache.flink.util.Collector;

import java.sql.Timestamp;
import java.util.ArrayList;
import java.util.Comparator;
import java.util.Properties;
public class HotItems {


    public static void main(String[] args) throws Exception {


        // 1. 创建执行环境
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);
        env.setStreamTimeCharacteristic(TimeCharacteristic.EventTime);

        // 2. 读取数据,创建DataStream
        DataStream<String> inputStream = env.readTextFile("C:\\Users\\Administrator\\IdeaProjects\\FlinkProject\\src\\main\\resources\\UserBehavior.csv");

        //Properties properties = new Properties();
        //properties.setProperty("bootstrap.servers", "localhost:9092");
        //properties.setProperty("group.id", "consumer");
        //properties.setProperty("key.deserializer", "org.apache.kafka.common.serialization.StringDeserializer");
        //properties.setProperty("value.deserializer", "org.apache.kafka.common.serialization.StringDeserializer");
        //properties.setProperty("auto.offset.reset", "latest");

        //DataStream<String> inputStream = env.addSource(new FlinkKafkaConsumer<String>("hotitems", new SimpleStringSchema(), properties));


        // 3. 转换为POJO,分配时间戳和watermark
        DataStream<UserBehavior> dataStream = inputStream
                .map(line -> {


                    String[] fields = line.split(",");
                    return new UserBehavior(new Long(fields[0]), new Long(fields[1]), new Integer(fields[2]), fields[3], new Long(fields[4]));
                })
                .assignTimestampsAndWatermarks(new AscendingTimestampExtractor<UserBehavior>() {


                    @Override
                    public long extractAscendingTimestamp(UserBehavior element) {


                        return element.getTimestamp() * 1000L;
                    }
                });

        // 4. 分组开窗聚合,得到每个窗口内各个商品的count值
        DataStream<ItemViewCount> windowAggStream = dataStream
                .filter(data -> "pv".equals(data.getBehavior()))    // 过滤pv行为
                .keyBy("itemId")    // 按商品ID分组
                .timeWindow(Time.hours(1), Time.minutes(5))    // 开滑窗
                .aggregate(new ItemCountAgg(), new WindowItemCountResult());

        // 5. 收集同一窗口的所有商品count数据,排序输出top n
        DataStream<String> resultStream = windowAggStream
                .keyBy("windowEnd")    // 按照窗口分组
                .process(new TopNHotItems(5));   // 用自定义处理函数排序取前5

        resultStream.print();

        env.execute("hot items analysis");
    }

    // 实现自定义增量聚合函数

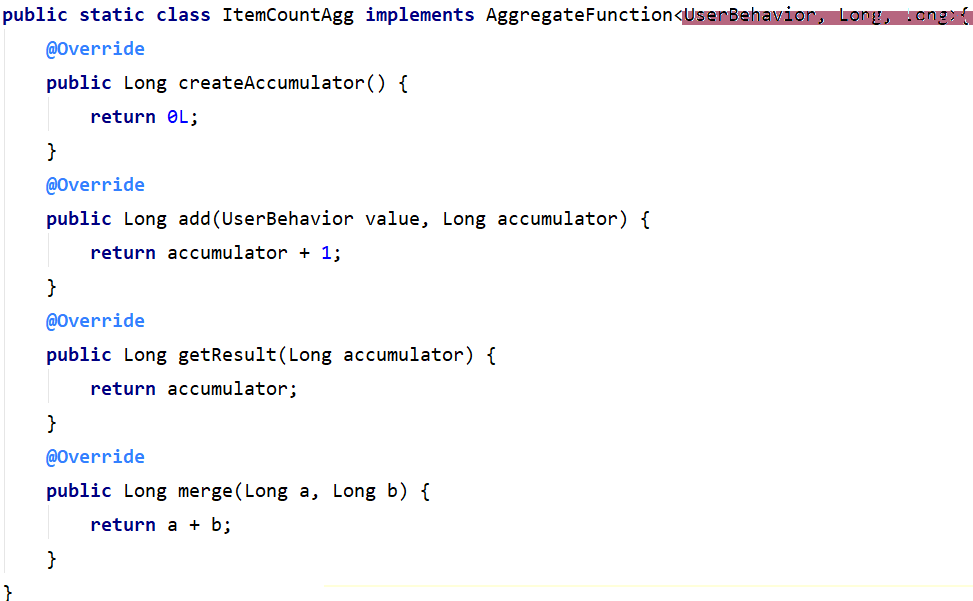

    public static class ItemCountAgg implements AggregateFunction<UserBehavior, Long, Long> {


        @Override
        public Long createAccumulator() {


            return 0L;
        }

        @Override
        public Long add(UserBehavior value, Long accumulator) {


            return accumulator + 1;
        }

        @Override
        public Long getResult(Long accumulator) {


            return accumulator;
        }

        @Override
        public Long merge(Long a, Long b) {


            return a + b;
        }
    }

    // 自定义全窗口函数

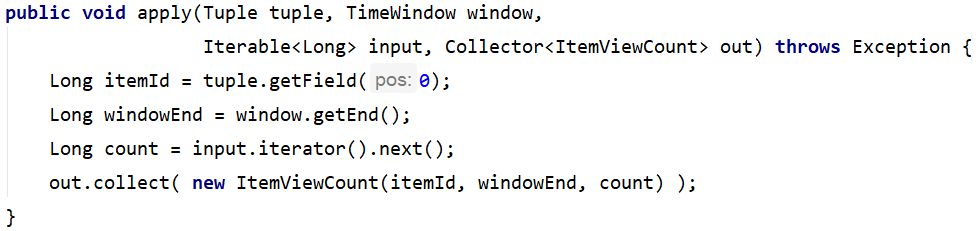

    public static class WindowItemCountResult implements WindowFunction<Long, ItemViewCount, Tuple, TimeWindow> {


        @Override
        public void apply(Tuple tuple, TimeWindow window, Iterable<Long> input, Collector<ItemViewCount> out) throws Exception {


            Long itemId = tuple.getField(0);
            Long windowEnd = window.getEnd();
            Long count = input.iterator().next();
            out.collect(new ItemViewCount(itemId, windowEnd, count));
        }
    }

    // 实现自定义KeyedProcessFunction
    public static class TopNHotItems extends KeyedProcessFunction<Tuple, ItemViewCount, String>{


        // 定义属性,top n的大小
        private Integer topSize;

        public TopNHotItems(Integer topSize) {


            this.topSize = topSize;
        }

        // 定义列表状态,保存当前窗口内所有输出的ItemViewCount
        ListState<ItemViewCount> itemViewCountListState;

        @Override
        public void open(Configuration parameters) throws Exception {


            itemViewCountListState = getRuntimeContext().getListState(new ListStateDescriptor<ItemViewCount>("item-view-count-list", ItemViewCount.class));
        }

        @Override
        public void processElement(ItemViewCount value, Context ctx, Collector<String> out) throws Exception {


            // 每来一条数据,存入List中,并注册定时器
            itemViewCountListState.add(value);
            ctx.timerService().registerEventTimeTimer( value.getWindowEnd() + 1 );
        }

        @Override
        public void onTimer(long timestamp, OnTimerContext ctx, Collector<String> out) throws Exception {


            // 定时器触发,当前已收集到所有数据,排序输出
            ArrayList<ItemViewCount> itemViewCounts = Lists.newArrayList(itemViewCountListState.get().iterator());

            itemViewCounts.sort(new Comparator<ItemViewCount>() {


                @Override
                public int compare(ItemViewCount o1, ItemViewCount o2) {


                    return o2.getCount().intValue() - o1.getCount().intValue();
                }
            });

            // 将排名信息格式化成String,方便打印输出
            StringBuilder resultBuilder = new StringBuilder();
            resultBuilder.append("===================================\n");
            resultBuilder.append("窗口结束时间:").append( new Timestamp(timestamp - 1)).append("\n");

            // 遍历列表,取top n输出
            for( int i = 0; i < Math.min(topSize, itemViewCounts.size()); i++ ){


                ItemViewCount currentItemViewCount = itemViewCounts.get(i);
                resultBuilder.append("NO ").append(i+1).append(":")
                        .append(" 商品ID = ").append(currentItemViewCount.getItemId())
                        .append(" 热门度 = ").append(currentItemViewCount.getCount())
                        .append("\n");
            }
            resultBuilder.append("===============================\n\n");

            // 控制输出频率
            Thread.sleep(1000L);

            out.collect(resultBuilder.toString());
        }
    }
}

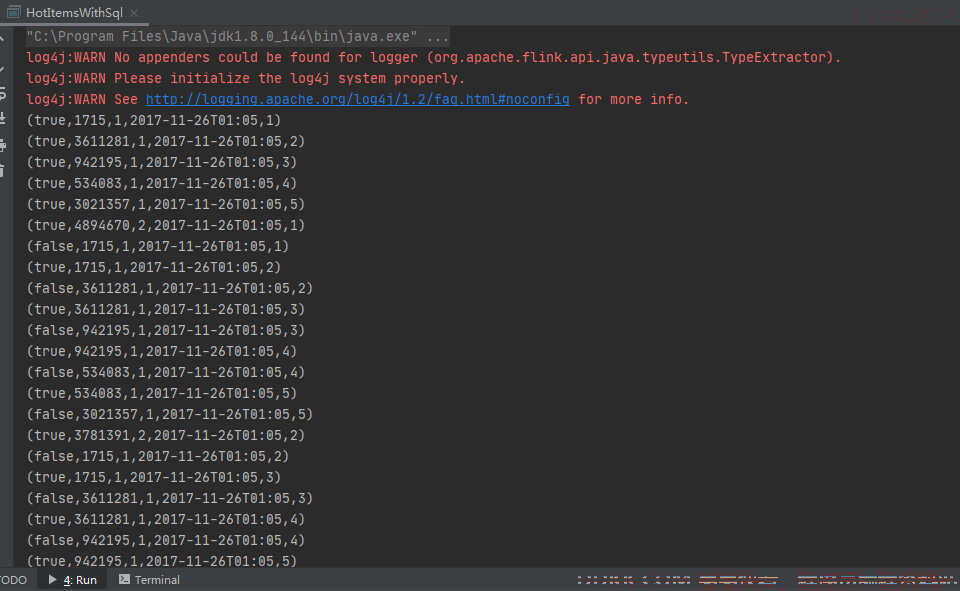

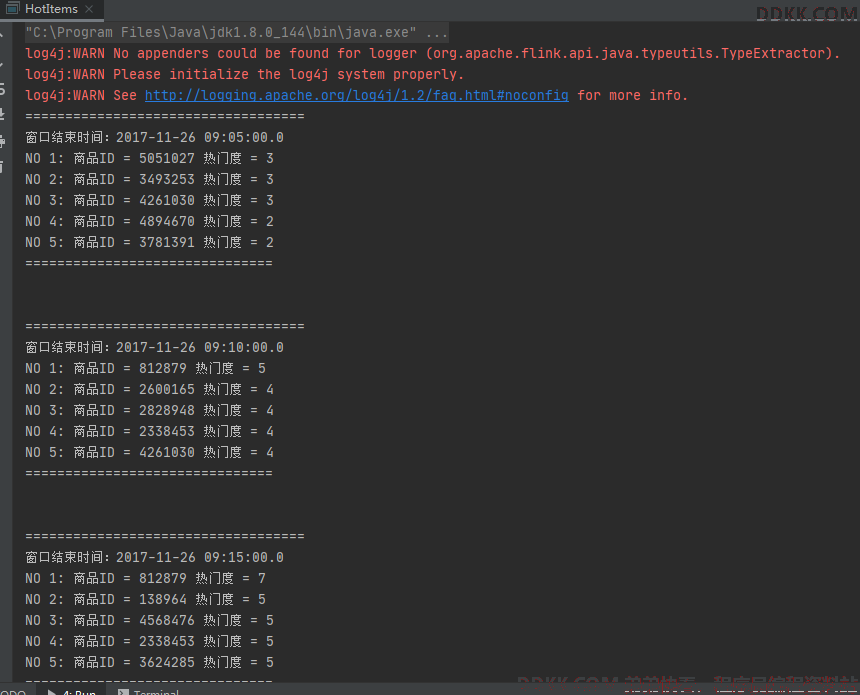

运行记录:


2.3 热门商品-Table API和Flink SQL实现

HotItemsWithSql

package com.zqs.flink.project.hotitemanalysis;

import com.zqs.flink.project.hotitemanalysis.beans.UserBehavior;
import org.apache.flink.streaming.api.TimeCharacteristic;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.timestamps.AscendingTimestampExtractor;
import org.apache.flink.table.api.EnvironmentSettings;
import org.apache.flink.table.api.Slide;
import org.apache.flink.table.api.Table;
import org.apache.flink.table.api.java.StreamTableEnvironment;
import org.apache.flink.types.Row;

public class HotItemsWithSql {


    public static void main(String[] args) throws Exception {


        // 1. 创建执行环境
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);
        env.setStreamTimeCharacteristic(TimeCharacteristic.EventTime);

        // 2. 读取数据,创建DataStream
        DataStream<String> inputStream = env.readTextFile("C:\\Users\\Administrator\\IdeaProjects\\FlinkProject\\src\\main\\resources\\UserBehavior.csv");

        // 3. 转换为POJO, 分配时间戳和watermark
        DataStream<UserBehavior> dataStream = inputStream
                .map(line -> {


                    String[] fields = line.split(",");
                    return new UserBehavior(new Long(fields[0]), new Long(fields[1]), new Integer(fields[2]), fields[3], new Long(fields[4]));
                })
                .assignTimestampsAndWatermarks(new AscendingTimestampExtractor<UserBehavior>() {


                    @Override
                    public long extractAscendingTimestamp(UserBehavior element) {


                        return element.getTimestamp() * 1000L;
                    }
                });

        // 4. 创建表执行环境,用blink版本
        EnvironmentSettings settings = EnvironmentSettings.newInstance()
                .useBlinkPlanner()
                .inStreamingMode()
                .build();
        StreamTableEnvironment tableEnv = StreamTableEnvironment.create(env, settings);

        // 5. 将流转换为表
        Table dataTable = tableEnv.fromDataStream(dataStream, "itemId, behavior, timestamp.rowtime as ts");

        // 6. 分组开窗
        // table api
        Table windowAggTable = dataTable
                .filter("behavior = 'pv'")
                .window(Slide.over("1.hours").every("5.minutes").on("ts").as("w"))
                .groupBy("itemId, w")
                .select("itemId, w.end as windowEnd, itemId.count as cnt");

        // 7. 利用开窗函数,对count值进行排序并获取Row number, 得到Top N
        // SQL
        DataStream<Row> aggStream = tableEnv.toAppendStream(windowAggTable, Row.class);
        tableEnv.createTemporaryView("agg", aggStream, "itemId, windowEnd, cnt");

        Table resultTable = tableEnv.sqlQuery("select * from " +
                "  ( select *, ROW_NUMBER() over (partition by windowEnd order by cnt desc) as row_num " +
                "  from agg) " +
                " where row_num <= 5 ");

        // 纯SQL实现
        tableEnv.createTemporaryView("data_table", dataStream, "itemId, behavior, timestamp.rowtime as ts");
        Table resultSqlTable = tableEnv.sqlQuery("select * from " +
                "  ( select *, ROW_NUMBER() over (partition by windowEnd order by cnt desc) as row_num " +
                "  from ( " +
                "    select itemId, count(itemId) as cnt, HOP_END(ts, interval '5' minute, interval '1' hour) as windowEnd " +
                "    from data_table " +
                "    where behavior = 'pv' " +
                "    group by itemId, HOP(ts, interval '5' minute, interval '1' hour)" +
                "    )" +
                "  ) " +
                " where row_num <= 5 ");

        tableEnv.toRetractStream(resultSqlTable, Row.class).print();

        env.execute("hot items with sql job");
    }
}

测试记录:


2.4 将文件写入kafka

真实环境一般是flink直连kafka,然后将处理的数据输出

KafkaProducerUtil

package com.zqs.flink.project.hotitemanalysis;

import org.apache.kafka.clients.producer.KafkaProducer;
import org.apache.kafka.clients.producer.ProducerRecord;

import java.io.BufferedReader;
import java.io.FileReader;
import java.util.Properties;

/**
 * @remark 读取文件数据写入到kafka
 */

public class KafkaProducerUtil {


    public static void main(String[] args) throws Exception {


        writeToKafka("hotitems");
    }

    // 包装一个写入kafka的方法
    public static void writeToKafka(String topic) throws Exception{


        // kafka配置
        Properties properties = new Properties();
        properties.setProperty("bootstrap.servers", "10.31.1.124:9092,10.31.1.125:9092,10.31.1.126:9092");
        properties.setProperty("key.serializer", "org.apache.kafka.common.serialization.StringSerializer");
        properties.setProperty("value.serializer", "org.apache.kafka.common.serialization.StringSerializer");

        // 定义一个Kafka Producer
        KafkaProducer<String, String> kafkaProducer = new KafkaProducer<>(properties);

        // 用缓冲方式读取文本
        BufferedReader bufferedReader = new BufferedReader(new FileReader("C:\\Users\\Administrator\\IdeaProjects\\FlinkProject\\src\\main\\resources\\UserBehavior.csv"));
        String line;
        while ((line = bufferedReader.readLine()) != null ){


            ProducerRecord<String, String> producerRecord = new ProducerRecord<>(topic, line);
            //用producer发送数据
            kafkaProducer.send(producerRecord);
        }
        kafkaProducer.close();
    }
}

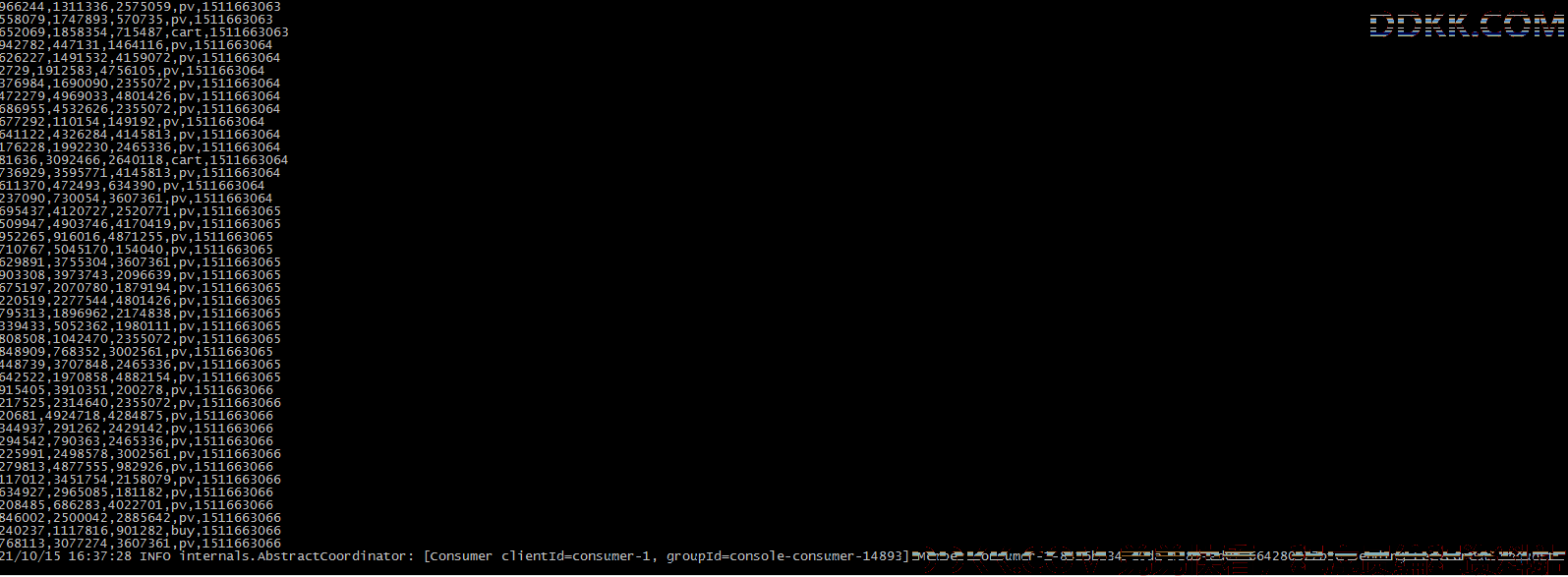

测试记录:
