19、Kubernetes - 实战：ServiceMesh之使用Ingress Nginx暴露Kubernetes上的gRPC服务
一、前言
Ingress Nginx支持gRPC服务的暴露，低于0.21的版本使用如下的annotation支持gRPC：
nginx.ingress.kubernetes.io/grpc-backend: "true"
0、 21版本以上使用如下annotation支持gRPC：；
nginx.ingress.kubernetes.io/backend-protocol: "GRPC"
本文基于Ingress Ngixn版本0.30.0(quay.io/kubernetes-ingress-controller/nginx-ingress-controller:0.30.0)进行部署和测试
二、部署gRPC服务
2.1 服务端代码和镜像构建
server.go
package main
import (
"context"
"fmt"
"os/signal"
"log"
"net"
"os"
"github.com/javiramos1/grpcapi"
"google.golang.org/grpc"
"google.golang.org/grpc/reflection"
)
type grpcServer struct{}
func (*grpcServer) GrpcService(ctx context.Context, req *grpcapi.GrpcRequest) (*grpcapi.GrpcResponse, error) {
fmt.Printf("grpcServer %v\n", req)
name, _ := os.Hostname()
input := req.GetInput()
result := "Got input " + input + " server host: " + name
res := &grpcapi.GrpcResponse{
Response: result,
}
return res, nil
}
func main() {
fmt.Println("Starting Server...")
log.SetFlags(log.LstdFlags | log.Lshortfile)
hostname := os.Getenv("SVC_HOST_NAME")
if len(hostname) <= 0 {
hostname = "0.0.0.0"
}
port := os.Getenv("SVC_PORT")
if len(port) <= 0 {
port = "50051"
}
lis, err := net.Listen("tcp", hostname+":"+port)
if err != nil {
log.Fatalf("Failed to listen: %v", err)
}
opts := []grpc.ServerOption{}
s := grpc.NewServer(opts...)
grpcapi.RegisterGrpcServiceServer(s, &grpcServer{})
// reflection service on gRPC server.
reflection.Register(s)
go func() {
fmt.Println("Server running on ", (hostname + ":" + port))
if err := s.Serve(lis); err != nil {
log.Fatalf("failed to serve: %v", err)
}
}()
// Wait for Control C to exit
ch := make(chan os.Signal, 1)
signal.Notify(ch, os.Interrupt)
// Block until a signal is received
<-ch
fmt.Println("Stopping the server")
s.Stop()
fmt.Println("Closing the listener")
lis.Close()
fmt.Println("Server Shutdown")
}
Dockerfile
FROM iron/go
WORKDIR /app
ADD grpc_server /app/
CMD [ "./grpc_server" ]
构建binary和镜像：
CGO_ENABLED=0 GOOS=linux go build -o grpc_server -ldflags "-s -w -X 'main.build=$(git rev-parse --short HEAD)' -X 'main.buildDate=$(date --rfc-3339=seconds)'" -a -installsuffix cgo server.go
docker build -t myregistry.com/grpc_server .
docker push myregistry.comgrpc_server
2、 2部署gRPC服务；
apiVersion: v1
kind: Service
metadata:
name: grpcserver
spec:
ports:
- port: 50051
protocol: TCP
targetPort: 50051
selector:
run: grpcserver
---
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
run: grpcserver
name: grpcserver
spec:
replicas: 2
selector:
matchLabels:
run: grpcserver
template:
metadata:
labels:
run: grpcserver
spec:
containers:
- image: myregistry.com/grpc_server:latest
name: grpcserver
ports:
- containerPort: 50051

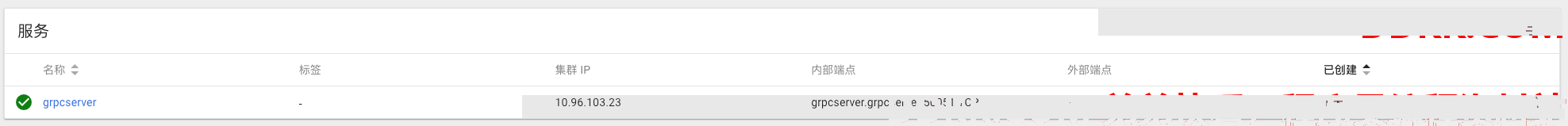

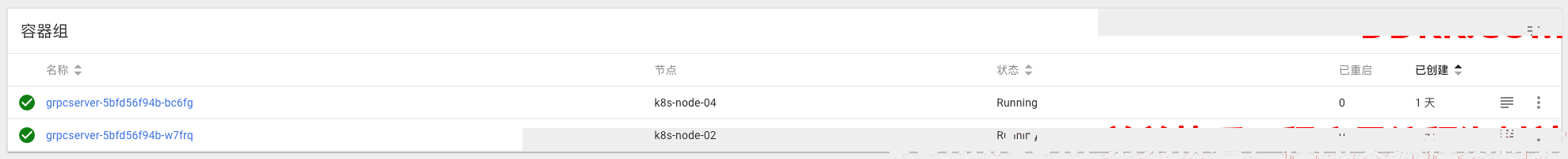

包含两个replica和一个cluster service：
三、通过Ingress Nginx暴露gRPC服务
参考文档：
https://kubernetes.github.io/ingress-nginx/examples/grpc/
3.1 Ingress Nginx暴露gRPC服务的TLS要求
Ingress Nginx暴露gRPC服务的时候，暂时只支持TLS(HTTPS)的方式，而不能通过普通HTTP方式，所以我们要配置TLS secret
生成key
openssl req -x509 -nodes -days 3650 -newkey rsa:2048 -keyout sslforingress.key -out sslforingress.pem -subj "/CN=grpc.test.com"
生成secret
kubectl create secret tls grpcserver-secret --cert sslforingress.pem --key sslforingress.key -n grpcserver
3.2 部署Ingress
暴露的地址是 grpc.test.com:443
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
annotations:
kubernetes.io/ingress.class: nginx
nginx.ingress.kubernetes.io/ssl-redirect: "true"
nginx.ingress.kubernetes.io/backend-protocol: "GRPC"
name: grpcserver
namespace: grpcserver
spec:
rules:
- host: grpc.test.com
http:
paths:
- backend:
serviceName: grpcserver
servicePort: 50051
tls:
# This secret must exist beforehand
# The cert must also contain the subj-name grpc.test.com
# https://github.com/kubernetes/ingress-nginx/blob/master/docs/examples/PREREQUISITES.md#tls-certificates
- secretName: grpcserver-secret
hosts:
- grpc.test.com
nginx.conf生成的内容：
start server grpc.test.com
server {
server_name grpc.test.com ;
listen 80 ;
listen [::]:80 ;
listen 443 ssl http2 ;
listen [::]:443 ssl http2 ;
set $proxy_upstream_name "-";
ssl_certificate_by_lua_block {
certificate.call()
}
location / {
set $namespace "grpcserver";
set $ingress_name "grpcserver";
set $service_name "grpcserver";
set $service_port "50051";
set $location_path "/";
... ...
Allow websocket connections
grpc_set_header Upgrade $http_upgrade;
grpc_set_header Connection $connection_upgrade;
grpc_set_header X-Request-ID $req_id;
grpc_set_header X-Real-IP $remote_addr;
grpc_set_header X-Forwarded-For $remote_addr;
grpc_set_header X-Forwarded-Host $best_http_host;
grpc_set_header X-Forwarded-Port $pass_port;
grpc_set_header X-Forwarded-Proto $pass_access_scheme;
grpc_set_header X-Scheme $pass_access_scheme;
Pass the original X-Forwarded-For
grpc_set_header X-Original-Forwarded-For $http_x_forwarded_for;
mitigate HTTPoxy Vulnerability
https://www.nginx.com/blog/mitigating-the-httpoxy-vulnerability-with-nginx/
grpc_set_header Proxy "";
Custom headers to proxied server
... ...
}
}
end server grpc.test.com
四、通过Ingress Nginx访问gRPC服务
4.1 安装grpcurl
https://github.com/fullstorydev/grpcurl
go get github.com/fullstorydev/grpcurl
go install github.com/fullstorydev/grpcurl/cmd/grpcurl
运行之后在go的PATH里面会有grpcurl的binary，将grpcurl拷贝到/usr/local/bin
4.2 通过grpcurl访问Kubernetes的gRPC服务
查看服务暴露的gRPC方法：
grpcurl -insecure grpc.test.com:443 list
greet.GrpcService
grpc.reflection.v1alpha.ServerReflection
调用服务：
[root@k8s-node-01 ~]# grpcurl -insecure grpc.test.com:443 greet.GrpcService/grpcService
{
"response": "Got input server host: grpcserver-5bfd56f94b-bc6fg"
}
[root@k8s-node-01 ~]# grpcurl -insecure grpc.test.com:443 greet.GrpcService/grpcService
{
"response": "Got input server host: grpcserver-5bfd56f94b-w7frq"
}
可以看到服务在两个节点之间轮转
五、通过API访问Ingress Nginx暴露的gRPC服务
5.1 访问基于TLS的gRPC服务
建立连接的时候加上如下代码，可以忽略SSL证书的有效性：
config := &tls.Config{
InsecureSkipVerify: true,
}
cc, err := grpc.Dial(hostname+":"+port, grpc.WithTransportCredentials(credentials.NewTLS(config)))
5.2 通过短连接访问gRPC服务
client_short_connection.go
package main
import (
"context"
"fmt"
"log"
"os"
"github.com/javiramos1/grpcapi"
"google.golang.org/grpc"
"google.golang.org/grpc/credentials"
"crypto/tls"
)
func main() {
fmt.Println("Starting client...")
hostname := os.Getenv("SVC_HOST_NAME")
if len(hostname) <= 0 {
hostname = "0.0.0.0"
}
port := os.Getenv("SVC_PORT")
if len(port) <= 0 {
port = "50051"
}
config := &tls.Config{
InsecureSkipVerify: true,
}
cc, err := grpc.Dial(hostname+":"+port, grpc.WithTransportCredentials(credentials.NewTLS(config)))
if err != nil {
log.Fatalf("could not connect: %v", err)
}
defer cc.Close()
c := grpcapi.NewGrpcServiceClient(cc)
fmt.Printf("Created client: %f", c)
callService(c)
}
func callService(c grpcapi.GrpcServiceClient) {
fmt.Println("callService...")
req := &grpcapi.GrpcRequest{
Input: "test",
}
res, err := c.GrpcService(context.Background(), req)
if err != nil {
log.Fatalf("error while calling gRPC: %v", err)
}
log.Printf("Response from Service: %v", res.Response)
}
编译：
CGO_ENABLED=0 GOOS=linux go build -o grpc_client_short_connection -ldflags "-s -w -X 'main.build=$(git rev-parse --short HEAD)' -X 'main.buildDate=$(date --rfc-3339=seconds)'" -a -installsuffix cgo client.go
运行：
export SVC_HOST_NAME=grpc.test.com
export SVC_PORT=443
while true; do ./grpc_client_short_connection; sleep 1;done
2020/05/12 13:21:39 Response from Service: Got input test server host: grpcserver-5bfd56f94b-w7frq
2020/05/12 13:21:40 Response from Service: Got input test server host: grpcserver-5bfd56f94b-bc6fg
2020/05/12 13:21:41 Response from Service: Got input test server host: grpcserver-5bfd56f94b-bc6fg
2020/05/12 13:21:42 Response from Service: Got input test server host: grpcserver-5bfd56f94b-w7frq
2020/05/12 13:21:43 Response from Service: Got input test server host: grpcserver-5bfd56f94b-w7frq
2020/05/12 13:21:44 Response from Service: Got input test server host: grpcserver-5bfd56f94b-bc6fg
2020/05/12 13:21:45 Response from Service: Got input test server host: grpcserver-5bfd56f94b-w7frq
2020/05/12 13:21:46 Response from Service: Got input test server host: grpcserver-5bfd56f94b-w7frq
2020/05/12 13:21:47 Response from Service: Got input test server host: grpcserver-5bfd56f94b-w7frq
2020/05/12 13:21:48 Response from Service: Got input test server host: grpcserver-5bfd56f94b-bc6fg
2020/05/12 13:21:49 Response from Service: Got input test server host: grpcserver-5bfd56f94b-bc6fg
2020/05/12 13:21:50 Response from Service: Got input test server host: grpcserver-5bfd56f94b-bc6fg
同时可以看到系统存在大量端口被短连接占用之后等待关闭：
netstat -anp | grep 443 -w
tcp 0 0 172.3.0.11:41984 172.2.2.11:443 TIME_WAIT -
tcp 0 0 172.3.0.11:41948 172.2.2.11:443 TIME_WAIT -
tcp 0 0 172.3.0.11:41910 172.2.2.11:443 TIME_WAIT -
tcp 0 0 172.3.0.11:41974 172.2.2.11:443 TIME_WAIT -
tcp 0 0 172.3.0.11:41934 172.2.2.11:443 TIME_WAIT -
tcp 0 0 172.3.0.11:41970 172.2.2.11:443 TIME_WAIT -
tcp 0 0 172.3.0.11:41928 172.2.2.11:443 TIME_WAIT -
tcp 0 0 172.3.0.11:41912 172.2.2.11:443 TIME_WAIT -
tcp 0 0 172.3.0.11:41940 172.2.2.11:443 TIME_WAIT -
tcp 0 0 172.3.0.11:41942 172.2.2.11:443 TIME_WAIT -
tcp 0 0 172.3.0.11:41976 172.2.2.11:443 TIME_WAIT -
tcp 0 0 172.3.0.11:41994 172.2.2.11:443 TIME_WAIT -
tcp 0 0 172.3.0.11:41980 172.2.2.11:443 TIME_WAIT -
tcp 0 0 172.3.0.11:41988 172.2.2.11:443 TIME_WAIT -
tcp 0 0 172.3.0.11:41998 172.2.2.11:443 TIME_WAIT -
tcp 0 0 172.3.0.11:41916 172.2.2.11:443 TIME_WAIT -
tcp 0 0 172.3.0.11:41978 172.2.2.11:443 TIME_WAIT -
tcp 0 0 172.3.0.11:41924 172.2.2.11:443 TIME_WAIT -
tcp 0 0 172.3.0.11:41922 172.2.2.11:443 TIME_WAIT -
tcp 0 0 172.3.0.11:41996 172.2.2.11:443 TIME_WAIT -
tcp 0 0 172.3.0.11:41986 172.2.2.11:443 TIME_WAIT -
tcp 0 0 172.3.0.11:41962 172.2.2.11:443 TIME_WAIT -
tcp 0 0 172.3.0.11:41906 172.2.2.11:443 TIME_WAIT -
tcp 0 0 172.3.0.11:41960 172.2.2.11:443 TIME_WAIT -

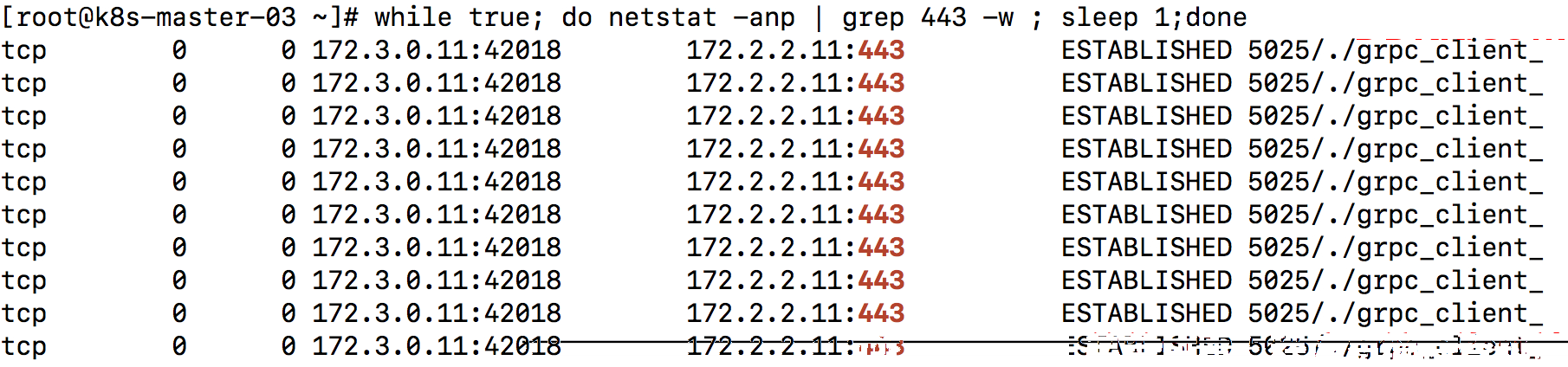

5.3 通过长连接访问gRPC服务
client_longlive_connection.go
package main
import (
"context"
"fmt"
"log"
"os"
"time"
"github.com/javiramos1/grpcapi"
"google.golang.org/grpc"
"google.golang.org/grpc/credentials"
"crypto/tls"
)
func main() {
fmt.Println("Starting client...")
hostname := os.Getenv("SVC_HOST_NAME")
if len(hostname) <= 0 {
hostname = "0.0.0.0"
}
port := os.Getenv("SVC_PORT")
if len(port) <= 0 {
port = "50051"
}
config := &tls.Config{
InsecureSkipVerify: true,
}
cc, err := grpc.Dial(hostname+":"+port, grpc.WithTransportCredentials(credentials.NewTLS(config)))
if err != nil {
log.Fatalf("could not connect: %v", err)
}
defer cc.Close()
c := grpcapi.NewGrpcServiceClient(cc)
fmt.Printf("Created client: %f", c)
for i := 1; i <= 100; i++ {
callService(c)
time.Sleep(2000 * time.Millisecond)
}
}
func callService(c grpcapi.GrpcServiceClient) {
fmt.Println("callService...")
req := &grpcapi.GrpcRequest{
Input: "test",
}
res, err := c.GrpcService(context.Background(), req)
if err != nil {
log.Fatalf("error while calling gRPC: %v", err)
}
log.Printf("Response from Service: %v", res.Response)
}
编译并运行：
CGO_ENABLED=0 GOOS=linux go build -o grpc_client_longlive_connection -ldflags "-s -w -X 'main.build=$(git rev-parse --short HEAD)' -X 'main.buildDate=$(date --rfc-3339=seconds)'" -a -installsuffix cgo client.go
export SVC_HOST_NAME=grpc.test.com
export SVC_PORT=443
./grpc_client_longlive
2020/05/12 13:40:06 Response from Service: Got input test server host: grpcserver-5bfd56f94b-bc6fg
callService...
2020/05/12 13:40:08 Response from Service: Got input test server host: grpcserver-5bfd56f94b-w7frq
callService...
2020/05/12 13:40:10 Response from Service: Got input test server host: grpcserver-5bfd56f94b-bc6fg
callService...
2020/05/12 13:40:12 Response from Service: Got input test server host: grpcserver-5bfd56f94b-w7frq
callService...
2020/05/12 13:40:14 Response from Service: Got input test server host: grpcserver-5bfd56f94b-bc6fg
callService...
2020/05/12 13:40:16 Response from Service: Got input test server host: grpcserver-5bfd56f94b-w7frq
callService...
2020/05/12 13:40:18 Response from Service: Got input test server host: grpcserver-5bfd56f94b-bc6fg
callService...
2020/05/12 13:40:20 Response from Service: Got input test server host: grpcserver-5bfd56f94b-w7frq
callService...
2020/05/12 13:40:22 Response from Service: Got input test server host: grpcserver-5bfd56f94b-bc6fg
callService...
2020/05/12 13:40:24 Response from Service: Got input test server host: grpcserver-5bfd56f94b-w7frq
整个运行过程中只有一个到443端口的长连接：
这说明客户端到Ingress Nginx建立了gRPC长连接，而Ingress Nginx解码了七层gRPC数据包并进行负载均衡到gRPC 服务的两个replica POD
