14、Jenkins 进阶：SonarSQube项目管理

一、创建质量配置及关联项目

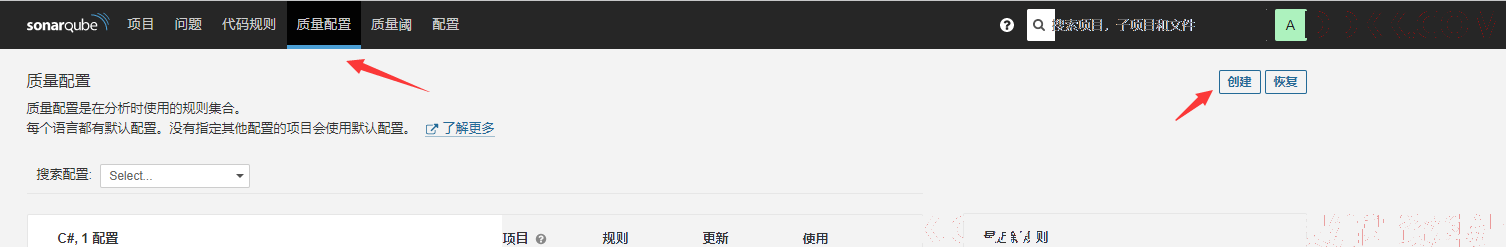

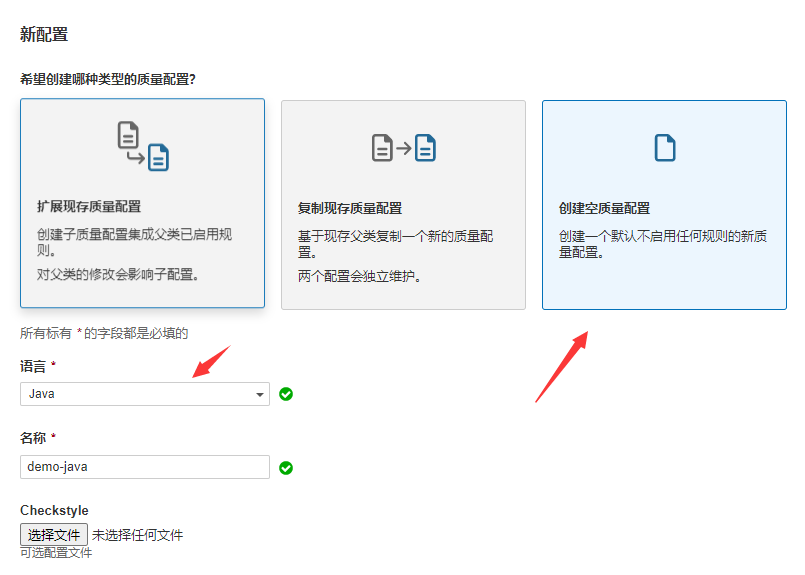

1.新建一个java代码质量配置

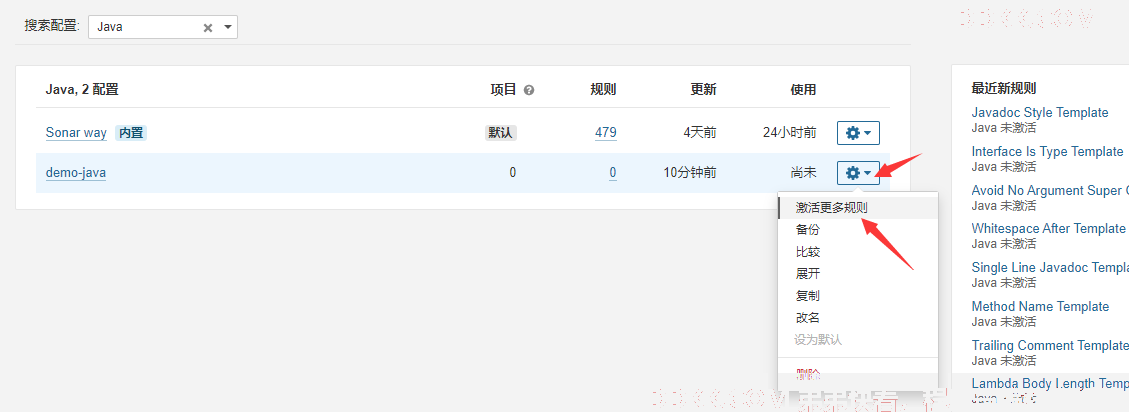

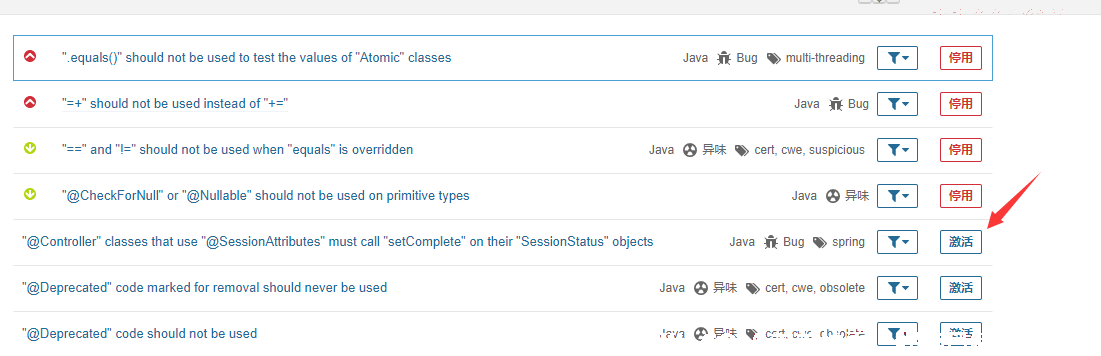

2.为配置添加规则

确认有4条规则了

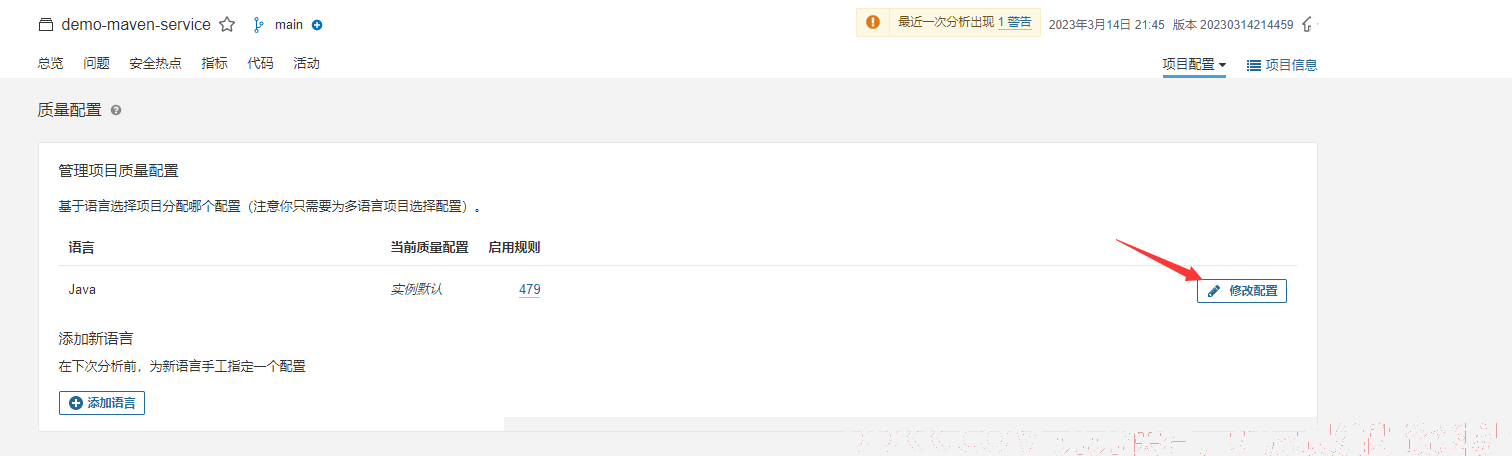

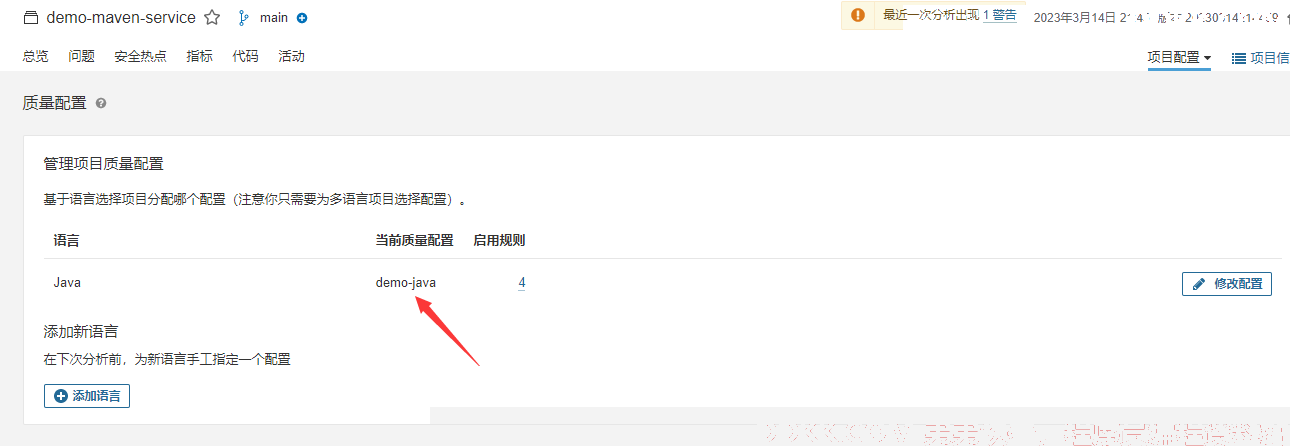

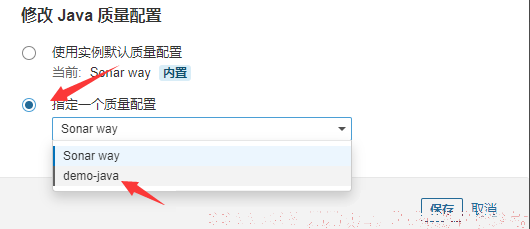

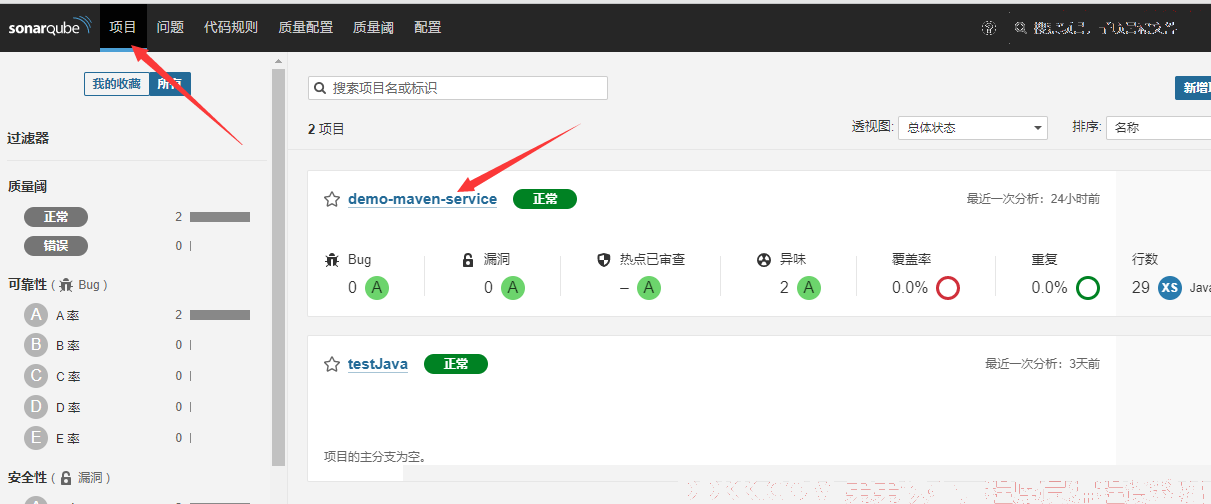

为项目更换扫描配置

二、创建质量阈关联项目

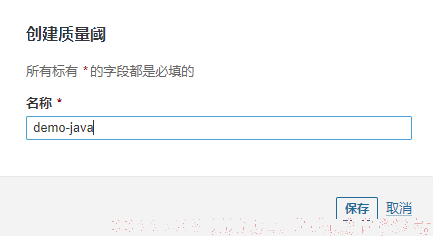

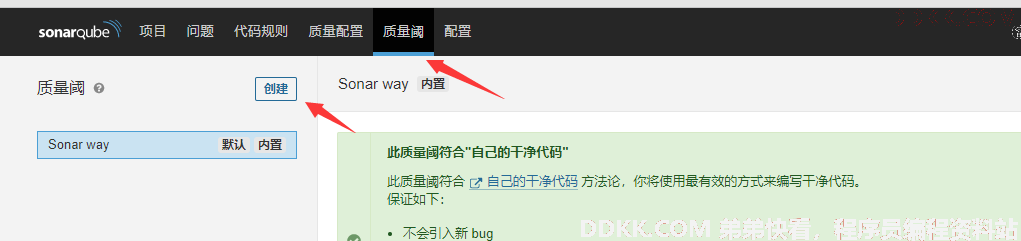

1.创建质量阈

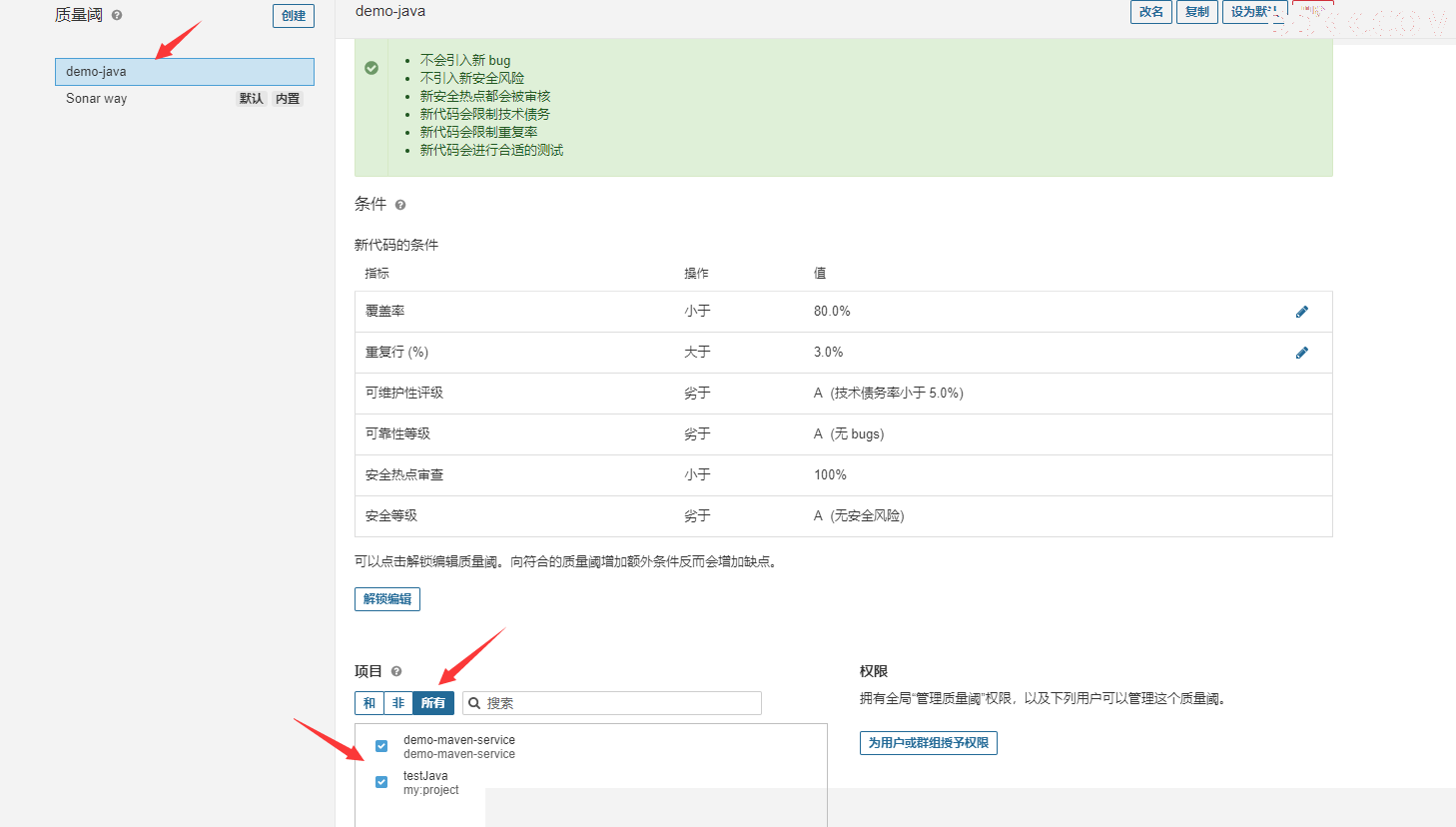

2.管理项目

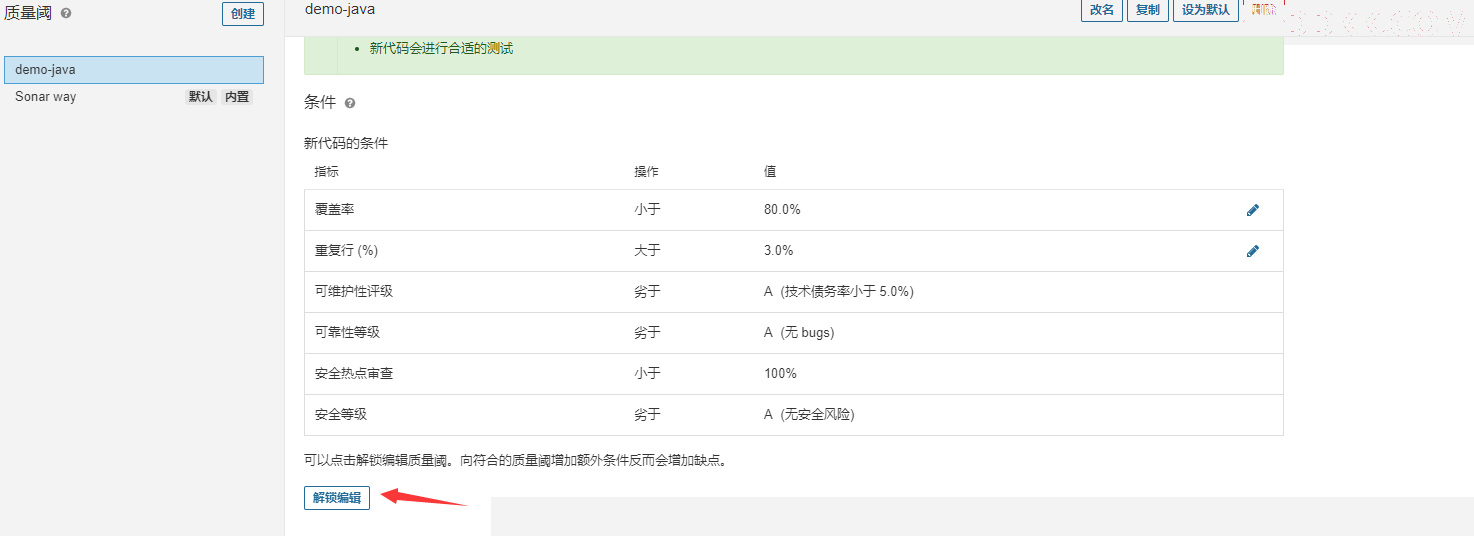

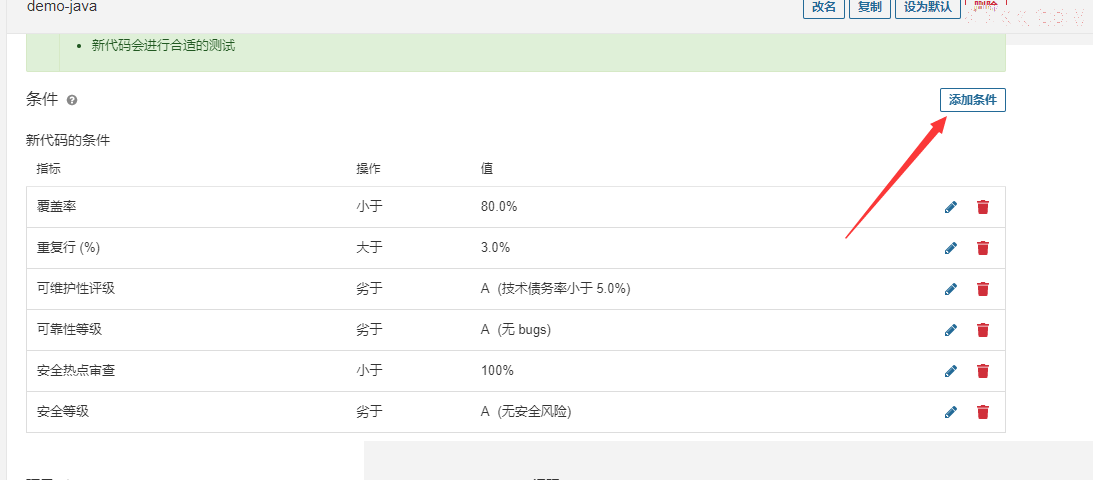

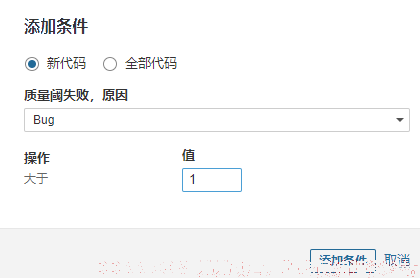

3.添加指标

三、SonarSQube集成到pipeline

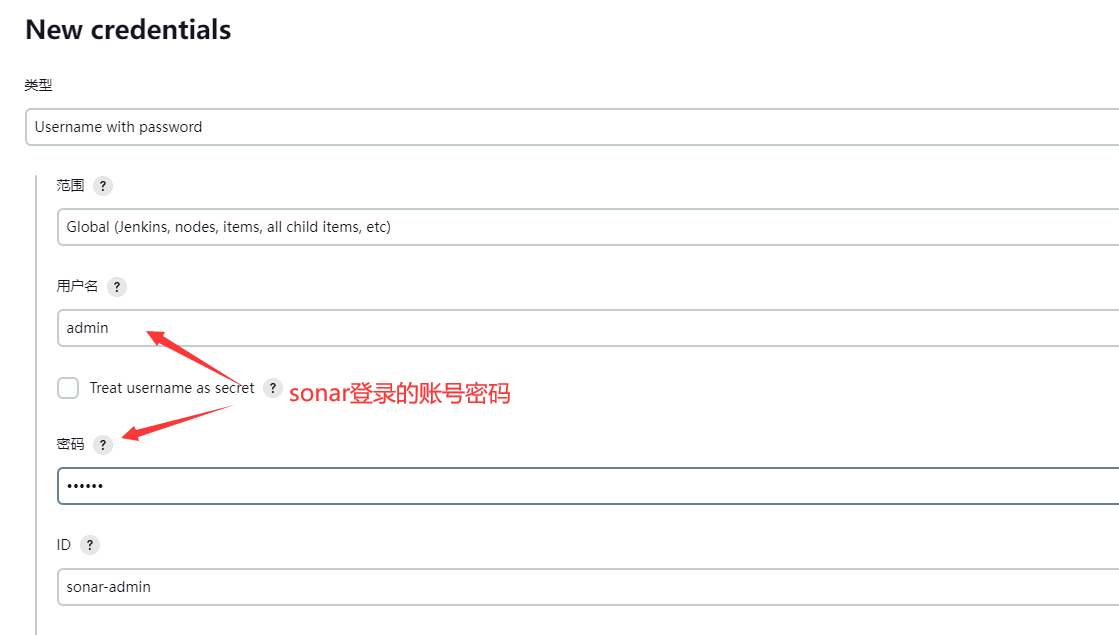

1.创建API访问凭证

2.创建sharelibrary

//封装HTTP

def HttpReq(reqType,reqUrl,reqBody){
    def sonarServer = "http://192.168.1.134:9000/api"

    result = httpRequest authentication: 'sonar-admin',
            httpMode: reqType,
            contentType: "APPLICATION_JSON",
            consoleLogResponseBody: true,
            ignoreSslErrors: true,
            requestBody: reqBody,
            url: "${sonarServer}/${reqUrl}"
            //quiet: true

    return result
}
//获取Sonar质量阈状态
def GetProjectStatus(projectName){
    // http://192.168.1.134:9000/api/project_branches/list?project=demo-maven-service
    // {"branches":[{"name":"main","isMain":true,"type":"BRANCH","status":{"qualityGateStatus":"OK"},"analysisDate":"2023-03-15T21:54:57+0800","excludedFromPurge":true}]}

    apiUrl = "project_branches/list?project=${projectName}"
    response = HttpReq("GET",apiUrl,'')

    response = readJSON text: """${response.content}"""
    result = response["branches"][0]["status"]["qualityGateStatus"]

    //println(response)

   return result
}

3.修改jenkinsfile，新增以下内容

def sonarapi = new org.devops.sonarapi()

                    sleep 3
                    tools.PrintMes("获取扫描结果","green")
                    result = sonarapi.GetProjectStatus("${JOB_NAME}")


                    println(result)
                    if (result.toString() == "ERROR"){
                        toemail.Email("代码质量阈错误！请及时修复！",userEmail)
                        error " 代码质量阈错误！请及时修复！"


                    } else {
                        println(result)
                    }

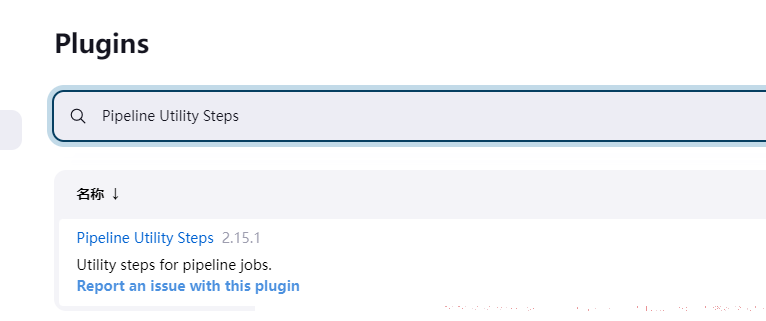

4.安装插件

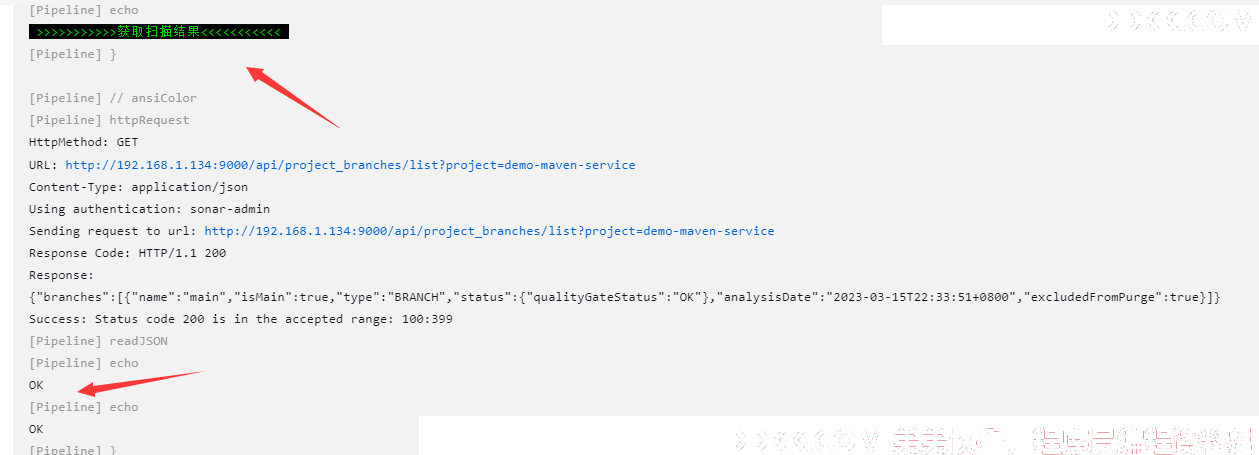

5.验证

参考文档：

https://docs.sonarqube.org/latest/analyzing-source-code/analysis-parameters/

https://docs.sonarqube.org/latest/analyzing-source-code/languages/java/
