24、SpringBoot 源码分析 - RequestMappingHandlerMapping的初始化二

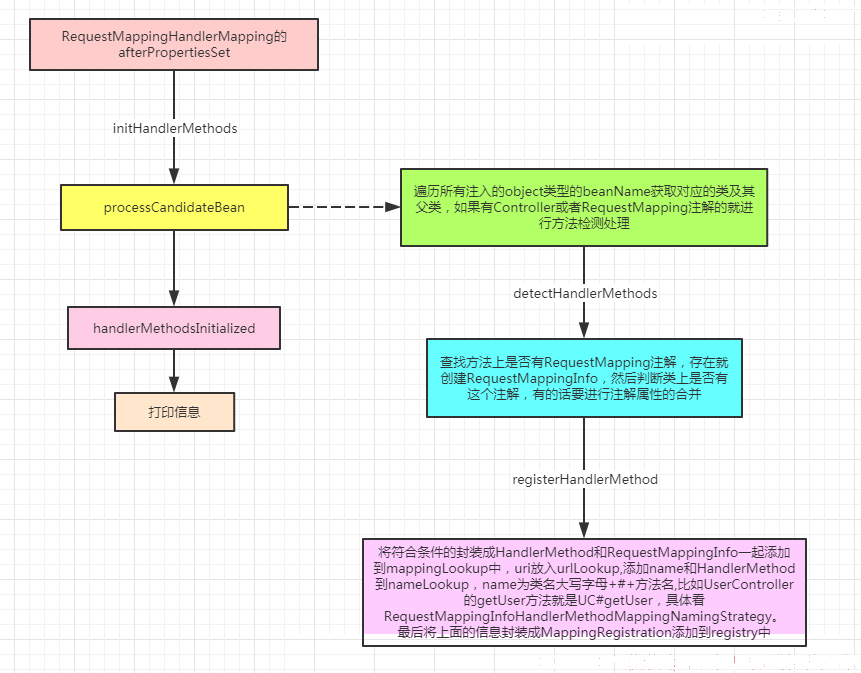

简单流程图

RequestMappingHandlerMapping的createRequestMappingInfo创建映射

首先获取RequestMapping注解，如果存在就创建一个RequestMappingInfo否则就返回null 。

	@Nullable
	private RequestMappingInfo createRequestMappingInfo(AnnotatedElement element) {


		RequestMapping requestMapping = AnnotatedElementUtils.findMergedAnnotation(element, RequestMapping.class);
		RequestCondition<?> condition = (element instanceof Class ?
				getCustomTypeCondition((Class<?>) element) : getCustomMethodCondition((Method) element));
		return (requestMapping != null ? createRequestMappingInfo(requestMapping, condition) : null);
	}

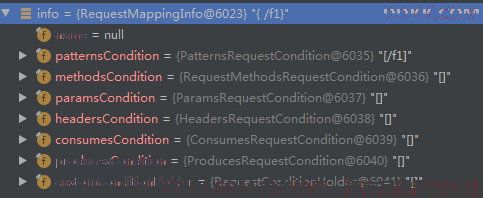

其实就是封装方法的RequestMappingInfo注解的属性啦：

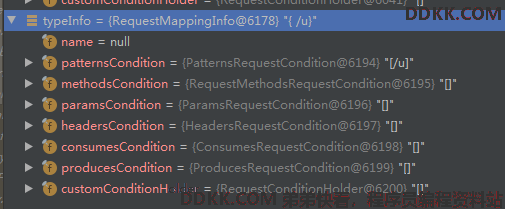

然后是类上的：

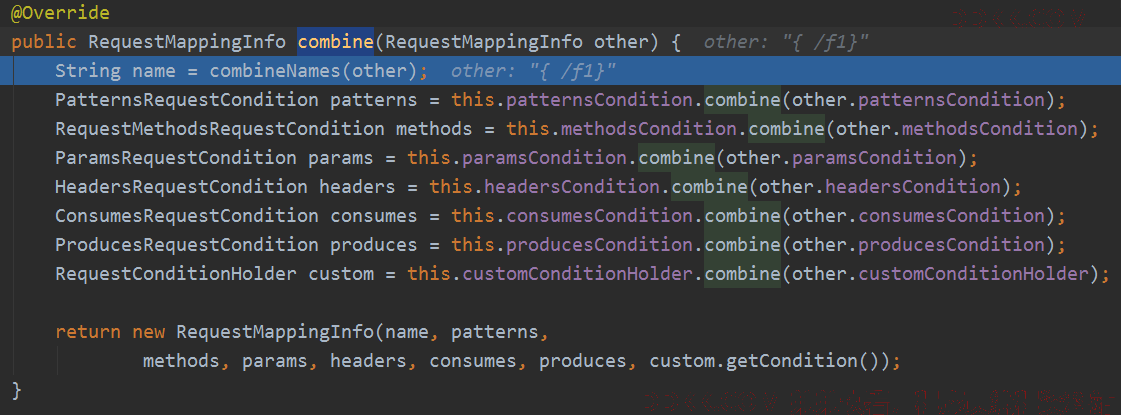

combine合并属性

具体怎么合并的细节就不看了。

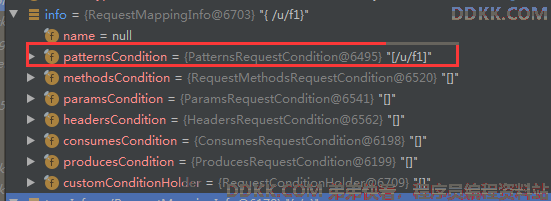

合并后的结果，我们常用的就是uri拼起来了：

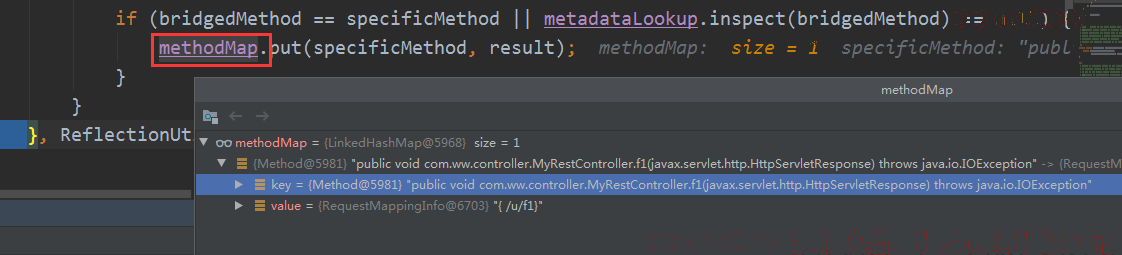

最后放入methodMap返回：

registerHandlerMethod

注册方法，最终是注册到MappingRegistry中的。

	@Override
	protected void registerHandlerMethod(Object handler, Method method, RequestMappingInfo mapping) {


		super.registerHandlerMethod(handler, method, mapping);
		updateConsumesCondition(mapping, method);
	}
	protected void registerHandlerMethod(Object handler, Method method, T mapping) {


		this.mappingRegistry.register(mapping, handler, method);
	}

MappingRegistry的register

注册各种类型的映射。

		private final Map<T, MappingRegistration<T>> registry = new HashMap<>();

		private final Map<T, HandlerMethod> mappingLookup = new LinkedHashMap<>();

		private final MultiValueMap<String, T> urlLookup = new LinkedMultiValueMap<>();

		private final Map<String, List<HandlerMethod>> nameLookup = new ConcurrentHashMap<>();

		public void register(T mapping, Object handler, Method method) {


			...
			this.readWriteLock.writeLock().lock();
			try {


				HandlerMethod handlerMethod = createHandlerMethod(handler, method);//创建HandlerMethod
				validateMethodMapping(handlerMethod, mapping);//验证唯一性
				this.mappingLookup.put(mapping, handlerMethod);//方法映射，放入mappingLookup

				List<String> directUrls = getDirectUrls(mapping);
				for (String url : directUrls) {


					this.urlLookup.add(url, mapping);//url映射，放入mappingLookup，可以多对一
				}

				String name = null;
				if (getNamingStrategy() != null) {


					name = getNamingStrategy().getName(handlerMethod, mapping);
					addMappingName(name, handlerMethod);//名字映射，name为类名大写字母+#+方法名，比如UserController的getUser方法就是UC#getUser
				}
				...
				this.registry.put(mapping, new MappingRegistration<>(mapping, handlerMethod, directUrls, name));//封装成MappingRegistration放入registry
			}
			finally {


				this.readWriteLock.writeLock().unlock();
			}
		}

AbstractHandlerMethodMapping的createHandlerMethod

根据是处理器是String还是对象类型进行不同的HandlerMethod封装，一般初始化的时候还没有实例，只是名字。

	protected HandlerMethod createHandlerMethod(Object handler, Method method) {


		if (handler instanceof String) {

     //如果是bean名字
			return new HandlerMethod((String) handler,
					obtainApplicationContext().getAutowireCapableBeanFactory(), method);
		}
		return new HandlerMethod(handler, method);
	}

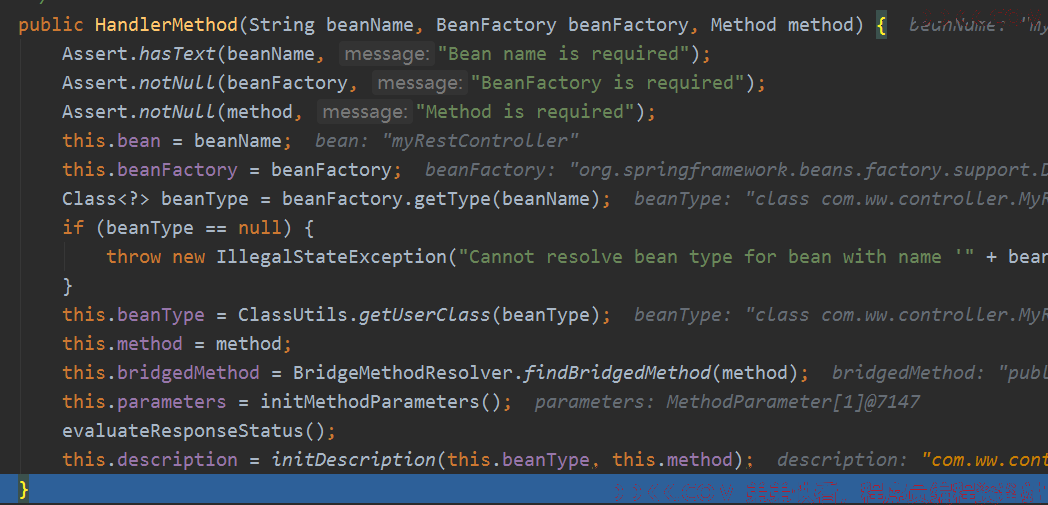

处理器名字创建：
内部会获取名字对应的类型，进行方法参数信息的封装和ResponseStatus注解相关处理。

MappingRegistry的validateMethodMapping检查唯一性

如果uri映射HandlerMethod已经存在，且不是同一个HandlerMethod要报异常。

private void validateMethodMapping(HandlerMethod handlerMethod, T mapping) {


			// Assert that the supplied mapping is unique.
			HandlerMethod existingHandlerMethod = this.mappingLookup.get(mapping);
			if (existingHandlerMethod != null && !existingHandlerMethod.equals(handlerMethod)) {


				throw new IllegalStateException(
						"Ambiguous mapping. Cannot map '" + handlerMethod.getBean() + "' method \n" +
						handlerMethod + "\nto " + mapping + ": There is already '" +
						existingHandlerMethod.getBean() + "' bean method\n" + existingHandlerMethod + " mapped.");
			}
		}

好了，今天就到这里了，希望对学习理解有帮助，大神看见勿喷，仅为自己的学习理解，能力有限，请多包涵。
