25、Spring Security 实战 - 解决Spring Security环境中的跨域问题

前言

上一章节中, 给各位讲解了同源策略和跨域问题,以及跨域问题的解决方案,在本篇文章中,我会带大家进行代码实现,看看在Spring Security环境中如何解决跨域问题。

一. 启用Spring Security 的CORS支持

1. 创建web接口

我先在SpringBoot环境中,创建一个端口号为8080的web项目,注意这个web项目没有引入Spring Security的依赖包。然后在其中创建一个IndexController,定义两个测试接口以便被ajax进行跨域访问。

@RestController
public class IndexController {

    @GetMapping("/hello")
    public String hello() {

        return "get hello";
    }

    @PostMapping("/hello")
    public String hello2() {

        return "post hello";
    }

}

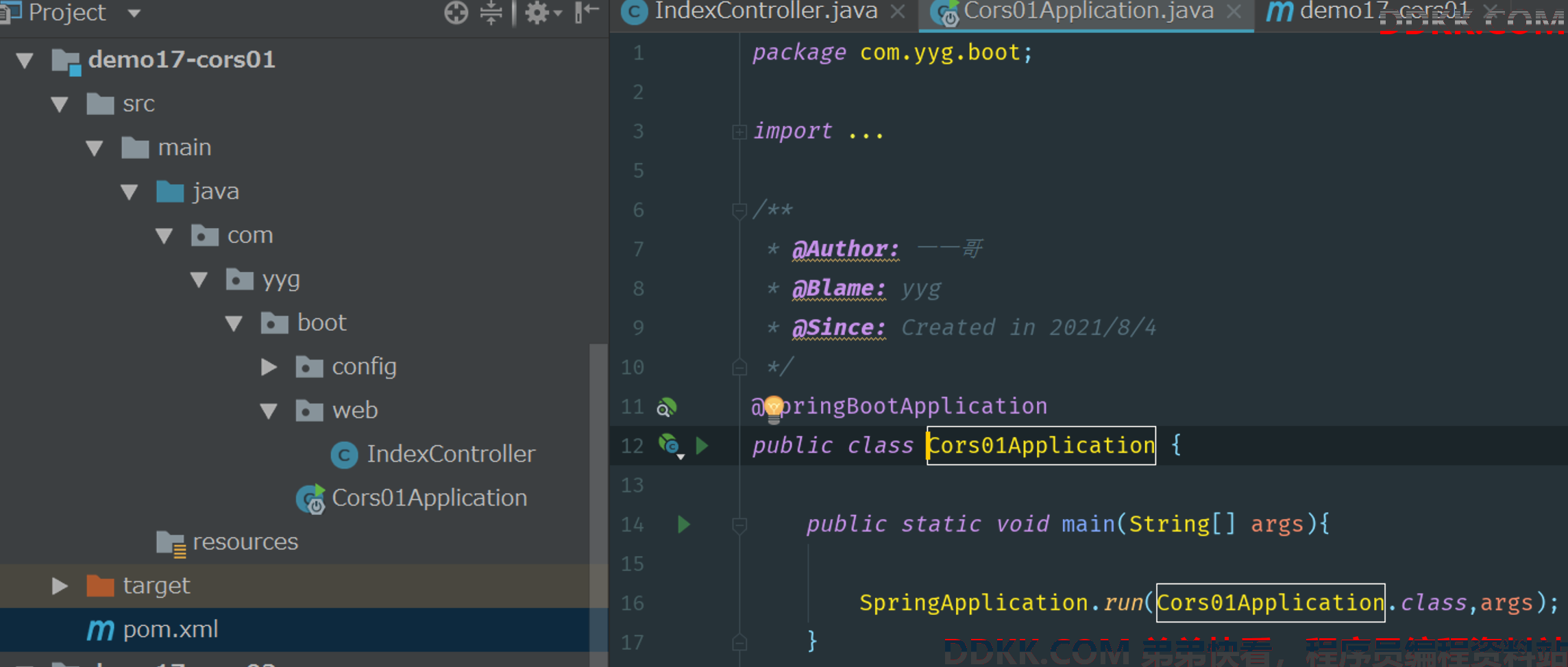

8080项目的代码结构:

请参考如下代码结构进行项目创建。



2. 执行ajax请求

我们接下来再创建另一个端口号为8082的web项目,注意这个web项目也没有引入Spring Security的依赖包。接着在这里定义一个index.html页面,利用ajax跨域访问8080项目中的web接口。

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Index</title>
    <script type="text/javascript" src="jquery-2.1.0.js"></script>
</head>
<body>
<div id="app"></div>
<input type="button" onclick="btnClick()" value="get请求">
<input type="button" onclick="btnClick2()" value="post请求">

<script>
    function btnClick() {
        $.get('http://localhost:8080/hello', function (msg) {
            $("#app").html(msg);
        });
    }

    function btnClick2() {
        $.post('http://localhost:8080/hello', function (msg) {
            $("#app").html(msg);
        });
    }
</script>

</body>
</html>

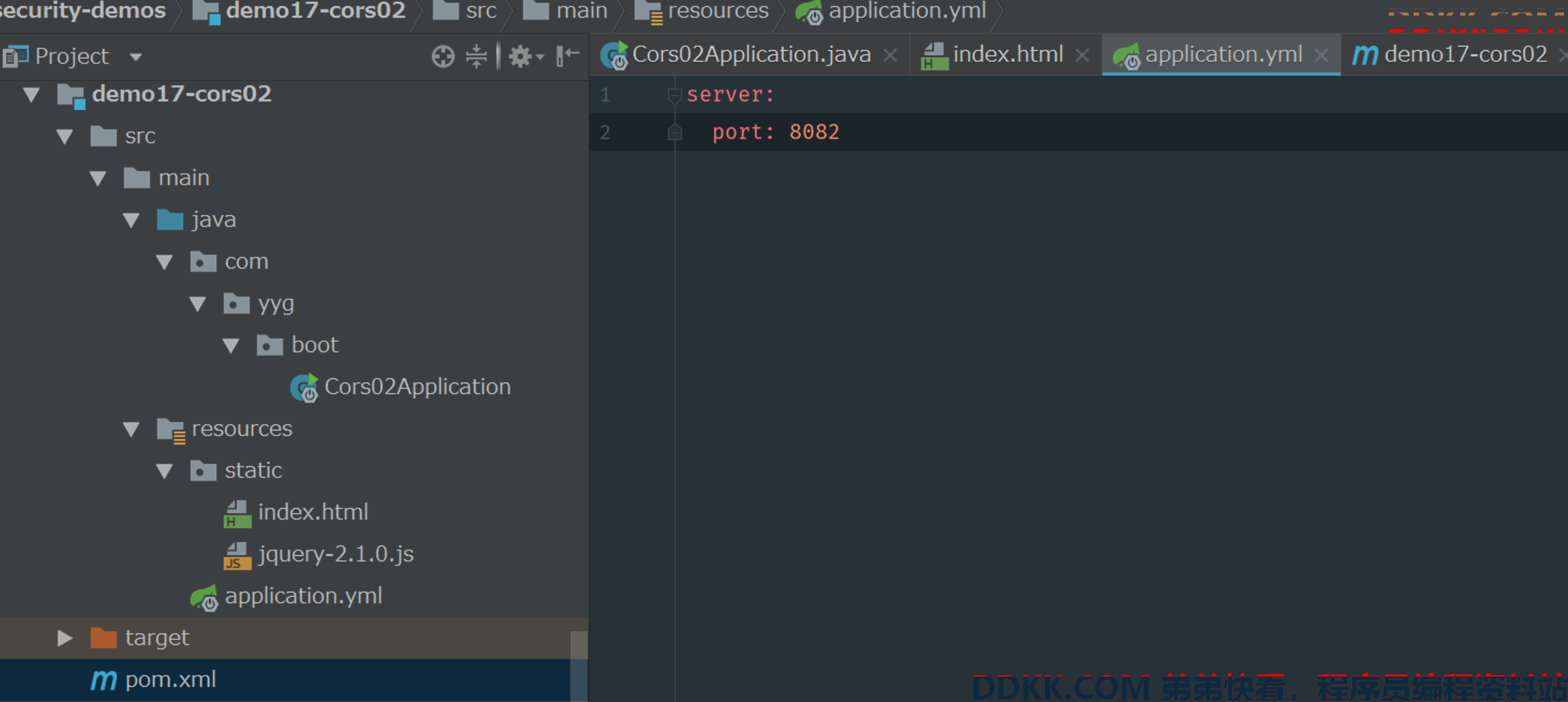

8082项目的代码结构:

请参考如下代码结构进行项目创建。



3. 发起跨域请求

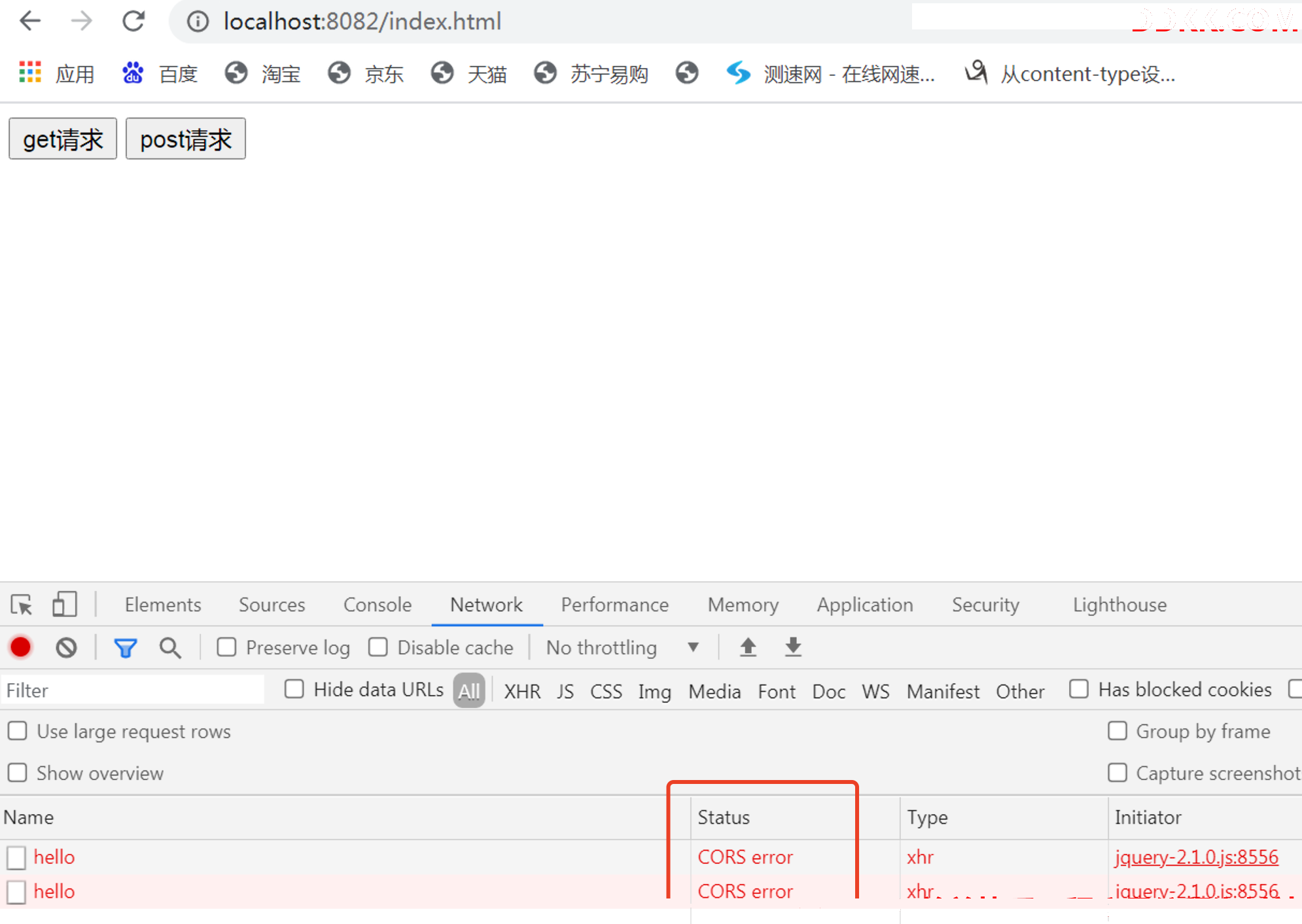

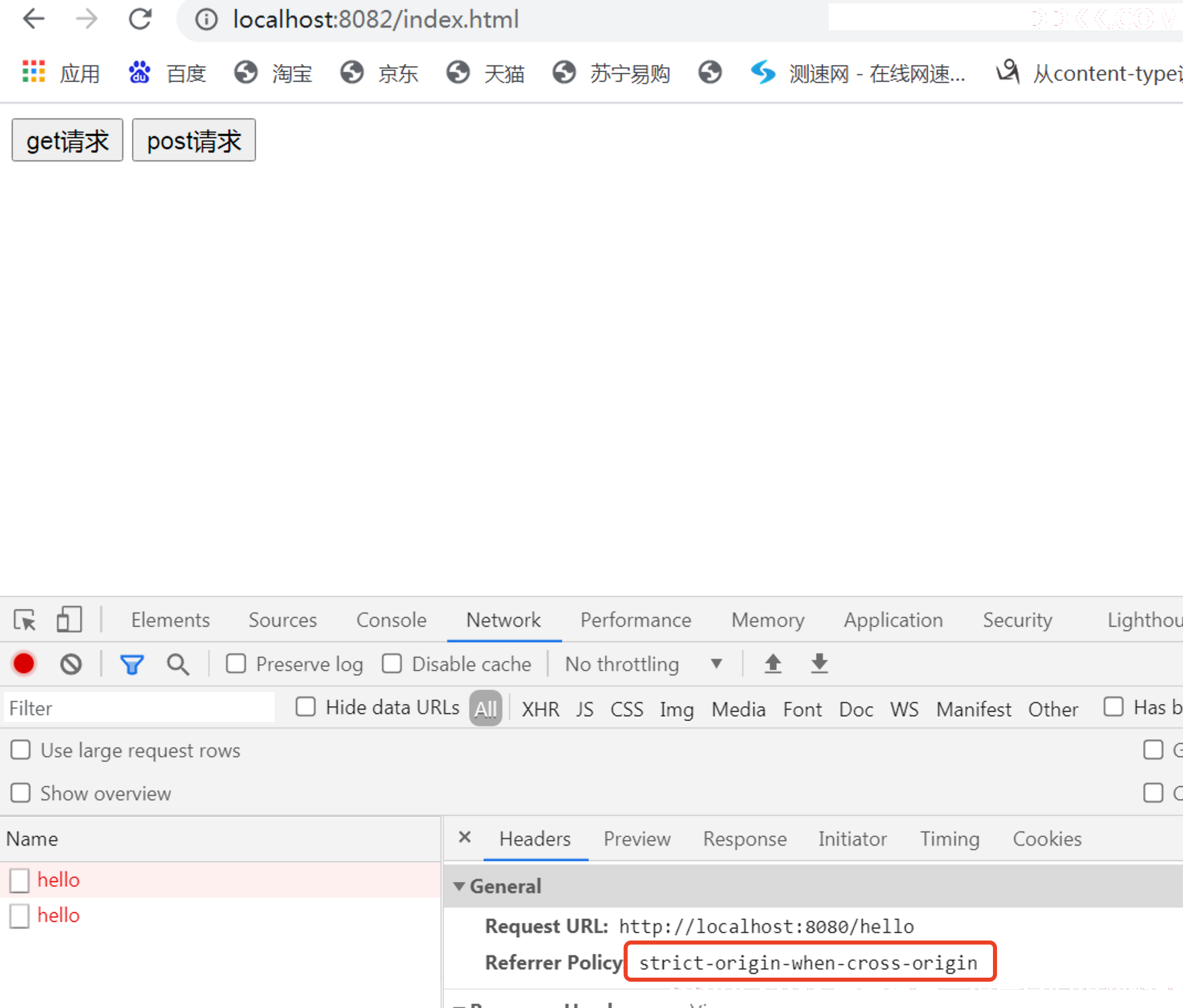

我们访问8082项目中的index.html页面,然后分别执行get与post请求,这时候就可以在浏览器的控制台上看到产生了CORS跨域问题,出现了CORS error状态,在请求头中出现了Referer Policy: strict-origin-when-cross-origin。





4. 解决跨域问题

既然现在产生了跨域问题,那么该怎么解决呢?其实我们可以采用如下两种方式之一来解决跨域问题。

方式1:在接口方法上利用@CrossOrigin注解解决跨域问题

@RestController
public class IndexController {

    @CrossOrigin(value = "http://localhost:8082")
    @GetMapping("/hello")
    public String hello() {

        return "get hello";
    }

    @CrossOrigin(value = "http://localhost:8082")
    @PostMapping("/hello")
    public String hello2() {

        return "post hello";
    }

}

方式2:通过实现***WebMvcConfigurer接口来解决跨域问题***

@Configuration
public class WebMvcConfig implements WebMvcConfigurer {

    @Override
    public void addCorsMappings(CorsRegistry registry) {
        registry.addMapping("/**")
                .allowedOrigins("http://localhost:8082")
                .allowedMethods("*")
                .allowedHeaders("*");
    }

}

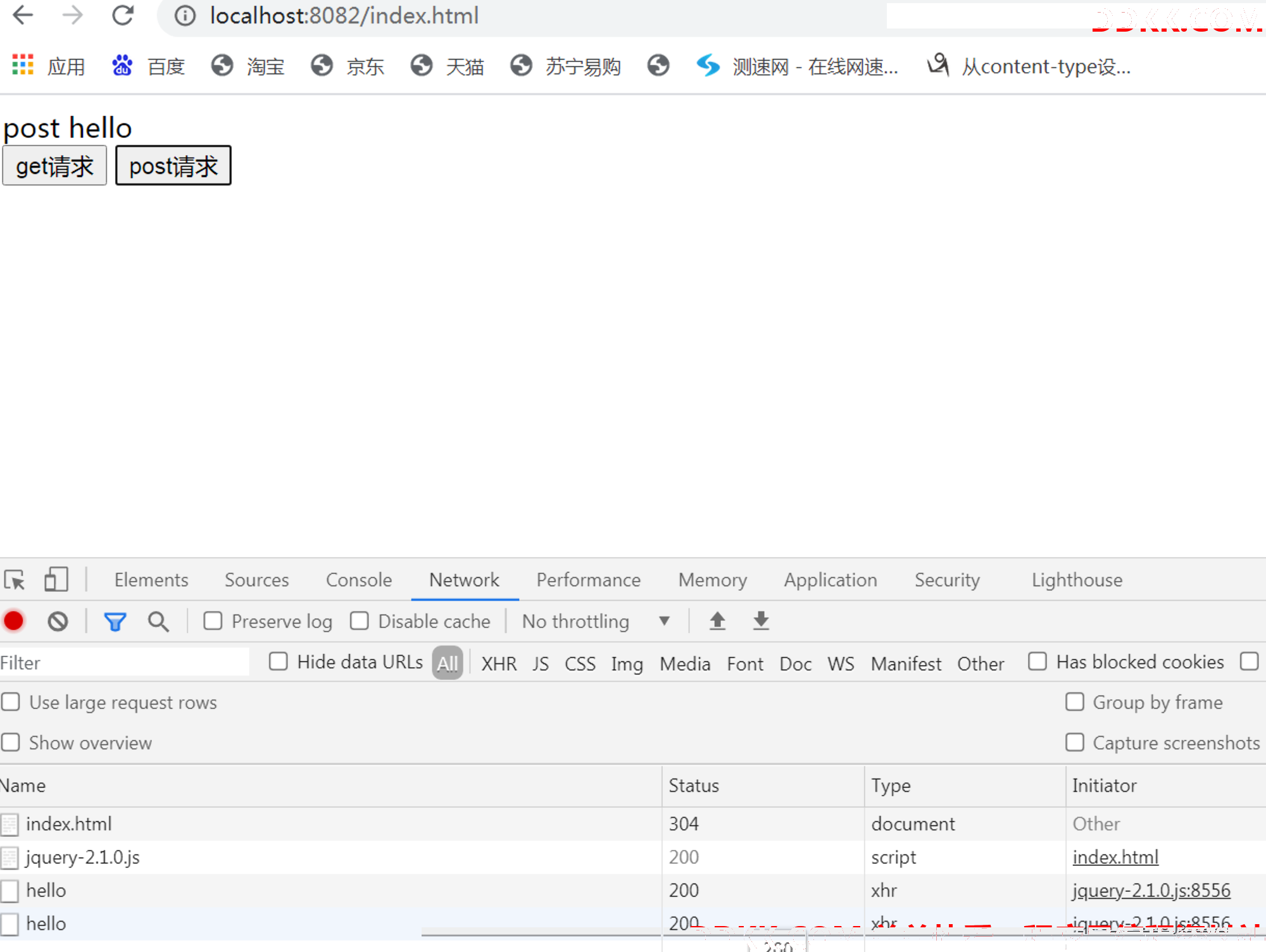

当进行了跨域设置之后,我们再次进行跨域请求,就可以看到请求成功了。



二. Spring Security环境下的跨域问题解决

1. 引入Spring Security依赖

通过上面的配置,我们已经解决了Ajax的跨域请求问题,但是这个案例中也有潜在的威胁存在,常见的就是 CSRF(Cross-site request forgery) 跨站请求伪造。跨站请求伪造也被称为 one-click attack 或者 session riding,通常缩写为 CSRF 或者 XSRF,是一种挟制用户在当前已登录的 Web 应用程序上执行非本意的操作的攻击方法

所以为了提高网站的安全性,我在上面Spring Boot项目的基础之上,添加Spring Security的依赖包,但是暂时不进行任何别的操作。

<dependencies>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-security</artifactId>
    </dependency>
</dependencies>

2. 重启8080项目进行测试

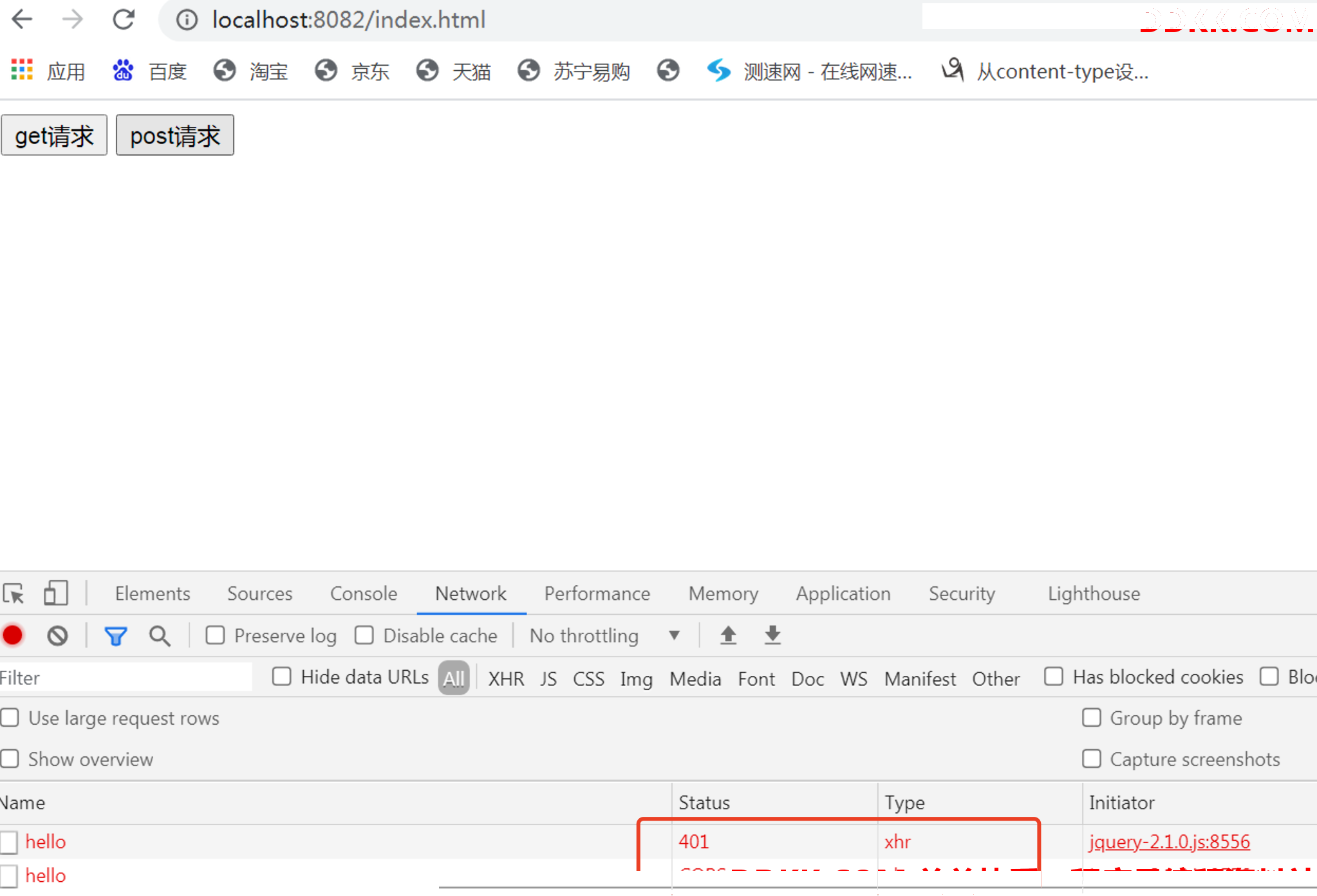

接着我就重启8080这个Spring Boot项目,然后在8082项目中再次进行跨域请求,我们会发现在引入Spring Security后,再次产生了跨域问题。



3. 解决Spring Security环境下跨域问题的3种方案

通过实验可知,如果使用了 Spring Security,上面的跨域配置会失效,因为请求会被 Spring Security 拦截。那么在Spring Security环境中,如何解决跨域问题呢?这里我们有3种方式可以开启 Spring Security 对跨域的支持。

3.1 方式一:开启cors方法

我们在上面的案例之上,编写一个SecurityConfig配置类,在configure方法中,利用cors() 开启Spring Security 对 CORS 的支持:

@EnableWebSecurity
public class SecurityConfig extends WebSecurityConfigurerAdapter {

    @Override
    protected void configure(HttpSecurity http) throws Exception {
        http.authorizeRequests()
                .anyRequest()
                .permitAll()
                .and()
                .formLogin()
                .permitAll()
                .and()
                .httpBasic()
                .and()
                //支持跨域访问
                .cors()
                .and()
                .csrf()
                .disable();
    }

}

3.2 方式二:进行全局配置

第二种方式是去除上面的跨域配置,直接在 Spring Security 中做全局配置,如下:

@EnableWebSecurity
public class SecurityConfig extends WebSecurityConfigurerAdapter {

    @Override
    protected void configure(HttpSecurity http) throws Exception {
        http.authorizeRequests()
                .anyRequest()
                .permitAll()
                .and()
                .formLogin()
                .permitAll()
                .and()
                .httpBasic()
                .and()
                //支持跨域访问
                .cors()
                .configurationSource(corsConfigurationSource())
                .and()
                .csrf()
                .disable();
    }

    @Bean
    public CorsConfigurationSource corsConfigurationSource() {
        UrlBasedCorsConfigurationSource source = new UrlBasedCorsConfigurationSource();
        CorsConfiguration configuration = new CorsConfiguration();
        configuration.setAllowCredentials(true);
        configuration.setAllowedOrigins(Collections.singletonList("*"));
        configuration.setAllowedMethods(Collections.singletonList("*"));
        configuration.setAllowedHeaders(Collections.singletonList("*"));
        configuration.setMaxAge(Duration.ofHours(1));
        source.registerCorsConfiguration("/**", configuration);
        return source;
    }

}

以上2个方法,都可以实现在Spring Security环境下的跨域访问。

3.3 方式三:支持OAuth2的跨域访问

我们开发时,还有一种情况就是支持 OAuth2 相关接口的跨域,比如用户要访问 OAuth2 中的 /oauth/token 等接口。我们可以配置一个全局的 CorsFilter 跨域过滤器类,核心代码如下:

/**
* 跨域配置方式3:定义全局跨域过滤器
**/
@Configuration
public class GlobalCorsConfiguration {

    @Bean
    public CorsFilter corsFilter() {
        CorsConfiguration corsConfiguration = new CorsConfiguration();
        corsConfiguration.setAllowCredentials(true);
        corsConfiguration.addAllowedOrigin("*");
        corsConfiguration.addAllowedHeader("*");
        corsConfiguration.addAllowedMethod("*");
        UrlBasedCorsConfigurationSource urlBasedCorsConfigurationSource = new UrlBasedCorsConfigurationSource();
        urlBasedCorsConfigurationSource.registerCorsConfiguration("/**", corsConfiguration);
        return new CorsFilter(urlBasedCorsConfigurationSource);
    }

}

@EnableWebSecurity
public class SecurityConfig extends WebSecurityConfigurerAdapter {

    @Override
    protected void configure(HttpSecurity http) throws Exception {
        //跨域方式3:
        http.requestMatchers()
                .antMatchers(HttpMethod.OPTIONS, "/oauth/**")
                .and()
                .csrf()
                .disable()
                .formLogin()
                .and()
                .cors();
    }

}

该方式也可以实现Spring Security中的跨域访问。

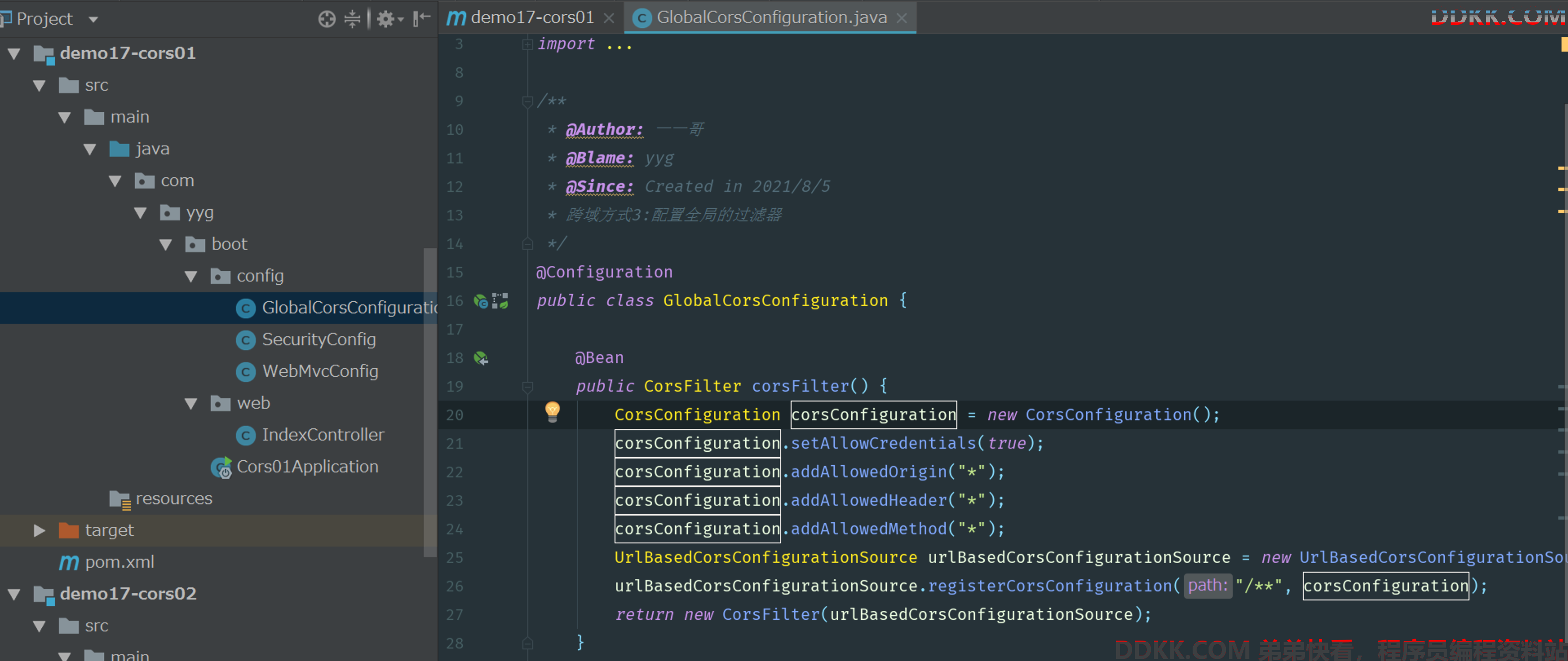

4. 代码结构

以下是本案例的代码结构,可以参考下图进行项目创建:



至此,我就带各位解决了Spring Security环境中的跨域问题,你学会了吗?
