02、Spring Security 源码解析 - 接口认证

一、上篇回顾

在Spring Security 源码解析 - （上）：登录授权 文章我们配置了如何登录，以及登录后获取JWT令牌，但是对于普通的请求依然无法访问，原因是我们并没有去校验令牌去认证请求的合法性，这一篇就来说说请求的认证。

二、接口认证逻辑

我们再来捋一下流程，首先用户进行登录授权之后会返回JWT令牌，客户端请求资源接口需要带上这个令牌，而后台要做的就是校验这个令牌的有效性。所以本篇需求也很清晰，校验JWT，其实也是只需要写一个JWT过滤器，将过滤器同上一篇一样的方式配置到过滤器链中。Github项目地址：spring-security-demo，修改记录：

JWT认证过滤器

和登录时候创建过滤器一样，包括JWT过滤器本身（JwtAuthenticationFilter），认证用的Provider（JwtAuthenticationProvider），登录成功处理器（JwtRefreshSuccessHandler），登录失败处理器（共用HttpStatusLoginFailureHandler），还有最后一个过滤器配置器（JwtLoginConfigurer）。

• JWT过滤器：和登录过滤器不一样，它继承的是 OncePerRequestFilter ，这里主要进行一个流程控制，URL白名单、匿名用户URL判断

public class JwtAuthenticationFilter extends OncePerRequestFilter{



	private String tokenName;

	/**
	 * 白名单
	 */
	private List<RequestMatcher> permissiveRequestMatchers;

	/**
	 * 匿名登录也可以访问
	 */
	private List<RequestMatcher> anonymityRequestMatchers;

	private AuthenticationManager authenticationManager;

	private AuthenticationSuccessHandler successHandler = new SavedRequestAwareAuthenticationSuccessHandler();
	private AuthenticationFailureHandler failureHandler = new SimpleUrlAuthenticationFailureHandler();

	public JwtAuthenticationFilter(String tokenName) {


		this.tokenName = tokenName;
	}

	@Override
	public void afterPropertiesSet() {


		Assert.notNull(authenticationManager, "AuthenticationManager must be specified");
		Assert.notNull(successHandler, "AuthenticationSuccessHandler must be specified");
		Assert.notNull(failureHandler, "AuthenticationFailureHandler must be specified");
	}

	protected String getJwtToken(HttpServletRequest request) {


		return request.getHeader(tokenName);
	}

	@Override
	protected void doFilterInternal(HttpServletRequest request, HttpServletResponse response, FilterChain filterChain)
			throws ServletException, IOException {



		// 是否是白名单URL
		if (permissiveRequest(request)) {


			filterChain.doFilter(request, response);
			return;
		}

		Authentication authResult = null;
		AuthenticationException failed = null;
		try {


			String token = getJwtToken(request);
			if (StringUtils.isNotBlank(token)) {


				JwtAuthenticationToken authToken = new JwtAuthenticationToken(JWT.decode(token));
				authResult = this.getAuthenticationManager().authenticate(authToken);
			} else {


				failed = LoginAuthenticationException.JWT_IS_EMPTY;
			}
		} catch (JWTDecodeException e) {



			logger.error("JWT format error", e);
			failed = LoginAuthenticationException.JWT_FORMAT_ERROR;

		} catch (InternalAuthenticationServiceException e) {



			logger.error("An internal error occurred while trying to authenticate the user.");
			failed = LoginAuthenticationException.AUTH_ERROR;

		} catch (AuthenticationException e) {



			failed = e;
		}

		if (authResult != null) {


			successfulAuthentication(request, response, filterChain, authResult);
		} else {


			// 是否是匿名用户访问的URL
			if (!anonymityRequest(request)) {


				unsuccessfulAuthentication(request, response, failed);
				return;
			}
		}

		filterChain.doFilter(request, response);
	}
	protected void unsuccessfulAuthentication(HttpServletRequest request,
											  HttpServletResponse response, AuthenticationException failed)
			throws IOException, ServletException {


		SecurityContextHolder.clearContext();
		failureHandler.onAuthenticationFailure(request, response, failed);
	}

	protected void successfulAuthentication(HttpServletRequest request,
											HttpServletResponse response, FilterChain chain, Authentication authResult)
			throws IOException, ServletException {


		SecurityContextHolder.getContext().setAuthentication(authResult);
		successHandler.onAuthenticationSuccess(request, response, authResult);
	}

	protected AuthenticationManager getAuthenticationManager() {


		return authenticationManager;
	}

	public void setAuthenticationManager(AuthenticationManager authenticationManager) {


		this.authenticationManager = authenticationManager;
	}

	protected boolean requiresAuthentication(HttpServletRequest request,
											 HttpServletResponse response) {


		return StringUtils.isNotBlank(this.getJwtToken(request));
	}

	/**
	 * 白名单
	 *
	 * @param request
	 * @return
	 */
	protected boolean permissiveRequest(HttpServletRequest request) {


		if (permissiveRequestMatchers == null) {


			return false;
		}

		for (RequestMatcher permissiveMatcher : permissiveRequestMatchers) {


			if (permissiveMatcher.matches(request)) {


				return true;
			}
		}
		return false;
	}

	public void setPermissiveUrl(String... urls) {


		if (permissiveRequestMatchers == null) {


			permissiveRequestMatchers = new ArrayList<>();
		}

		for (String url : urls) {


			permissiveRequestMatchers.add(new AntPathRequestMatcher(url));
		}

	}

	/**
	 * 匿名登录可访问的URL
	 *
	 * @param request
	 * @return
	 */
	protected boolean anonymityRequest(HttpServletRequest request) {


		if (anonymityRequestMatchers == null) {


			return false;
		}

		for (RequestMatcher anonymityMatcher : anonymityRequestMatchers) {


			if (anonymityMatcher.matches(request)) {


				return true;
			}
		}
		return false;
	}

	public void setAnonymityRequestMatchers(String... urls) {


		if (anonymityRequestMatchers == null) {


			anonymityRequestMatchers = new ArrayList<>();
		}

		for (String url : urls) {


			anonymityRequestMatchers.add(new AntPathRequestMatcher(url));
		}
	}

	public void setAuthenticationSuccessHandler(
			AuthenticationSuccessHandler successHandler) {


		Assert.notNull(successHandler, "successHandler cannot be null");
		this.successHandler = successHandler;
	}

	public void setAuthenticationFailureHandler(
			AuthenticationFailureHandler failureHandler) {


		Assert.notNull(failureHandler, "failureHandler cannot be null");
		this.failureHandler = failureHandler;
	}

	protected AuthenticationSuccessHandler getSuccessHandler() {


		return successHandler;
	}

	protected AuthenticationFailureHandler getFailureHandler() {


		return failureHandler;
	}

}

• JWT认证Provider：主要校验令牌是否过期，对令牌进行解密校验是否合法。

public class JwtAuthenticationProvider implements AuthenticationProvider{



	private SecurityConfig securityConfig;

	public JwtAuthenticationProvider(SecurityConfig securityConfig) {


		this.securityConfig = securityConfig;
	}

	@Override
	public Authentication authenticate(Authentication authentication) throws AuthenticationException {



		DecodedJWT jwt = ((JwtAuthenticationToken) authentication).getToken();
		// 令牌过期
		if(jwt.getExpiresAt().before(Calendar.getInstance().getTime())) {


			throw LoginAuthenticationException.JWT_EXPIRED;
		}

		try {


			// 校验令牌的合法性
			Algorithm algorithm = Algorithm.HMAC256(securityConfig.getTokenEncryptSalt());
			JwtUserLoginDTO loginResultDTO = JwtUserLoginDTO.fromDecodeJWT(jwt, algorithm);
			return new JwtAuthenticationToken(loginResultDTO, jwt, null);
        } catch (Exception e) {


            throw new BadCredentialsException("JWT token verify fail", e);
        }
	}

	@Override
	public boolean supports(Class<?> authentication) {


		return authentication.isAssignableFrom(JwtAuthenticationToken.class);
	}

}

• 认证成功处理器：主要校验是否需要刷新，需要的话用最新的过期时间重新生成JWT给到客户端。

public class JwtRefreshSuccessHandler implements AuthenticationSuccessHandler{



	private SecurityConfig securityConfig;

	public JwtRefreshSuccessHandler(SecurityConfig securityConfig) {


		this.securityConfig = securityConfig;
	}

	@Override
	public void onAuthenticationSuccess(HttpServletRequest request, HttpServletResponse response,
										Authentication authentication) throws IOException, ServletException {



		DecodedJWT jwt = ((JwtAuthenticationToken) authentication).getToken();
		boolean shouldRefresh = shouldTokenRefresh(jwt.getIssuedAt());

		if (shouldRefresh) {


			Algorithm algorithm = Algorithm.HMAC256(securityConfig.getTokenEncryptSalt());
			Date expiredDate = new Date(System.currentTimeMillis() + securityConfig.getTokenExpireTimeInSecond() * 1000);
			// 重新生成一个JWT返回给客户端
			String token = ((JwtAuthenticationToken) authentication).getJwtUserLoginDTO().sign(algorithm, expiredDate);
			response.setHeader(securityConfig.getTokenName(), token);
		}
	}

	protected boolean shouldTokenRefresh(Date issueAt){


        LocalDateTime issueTime = LocalDateTime.ofInstant(issueAt.toInstant(), ZoneId.systemDefault());
        return LocalDateTime.now().minusSeconds(securityConfig.getTokenRefreshIntervalInSecond()).isAfter(issueTime);
    }

}

• 过滤器配置器：和登录时配置一样，继承 AbstractHttpConfigurer 抽象类，实现 configure() 方法。主要配置成功处理器和失败处理器，同时将JWT过滤器配置进 HttpSecurity，注意还要将白名单URL匿名用户URL传入。

public class JwtLoginConfigurer<T extends JwtLoginConfigurer<T, B>, B extends HttpSecurityBuilder<B>> extends AbstractHttpConfigurer<T, B> {



	private SecurityConfig securityConfig;

	public JwtLoginConfigurer(SecurityConfig securityConfig) {


		this.securityConfig = securityConfig;
	}

	@Override
	public void configure(B http) throws Exception {



		JwtAuthenticationFilter authFilter = new JwtAuthenticationFilter(securityConfig.getTokenName());
		authFilter.setAuthenticationManager(http.getSharedObject(AuthenticationManager.class));

		// 配置白名单
		authFilter.setPermissiveUrl(securityConfig.getPermitUrls());
		// 配置匿名用户可访问的接口
		authFilter.setAnonymityRequestMatchers(securityConfig.getAnonymousUrls());

		// 成功处理器
		authFilter.setAuthenticationSuccessHandler(new JwtRefreshSuccessHandler(securityConfig));
		// 失败处理器
		authFilter.setAuthenticationFailureHandler(new HttpStatusLoginFailureHandler());

		JwtAuthenticationFilter filter = postProcess(authFilter);
		http.addFilterAfter(filter, AnonymousAuthenticationFilter.class);
	}

}

配置过滤器连

• 和登录一样的，将 JwtLoginConfigurer 配置进过滤器链。

@EnableWebSecurity
@EnableGlobalMethodSecurity(prePostEnabled = true)
public class WebSecurityConfig extends WebSecurityConfigurerAdapter {



	@Autowired
	private SecurityConfig securityConfig;

	@Override
	protected void configure(HttpSecurity http) throws Exception {


		http.authorizeRequests()
				// 配置白名单（比如登录接口）
				.antMatchers(securityConfig.getPermitUrls()).permitAll()
				// 匿名访问的URL，即不用登录也可以访问（比如广告接口）
				.antMatchers(securityConfig.getAnonymousUrls()).permitAll()
				// 其他URL需要认证通过才能访问后台资源
				.anyRequest().authenticated()
				.and()
				// 禁用跨站点伪造请求
				.csrf().disable()
				// 启用跨域资源共享
				.cors()
				.and()
				// 添加请求头
				.headers().addHeaderWriter(
				new StaticHeadersWriter(Collections.singletonList(
						new Header("Access-control-Allow-Origin", "*"))))
				.and()
				// 自定义的登录过滤器，不同的登录方式创建不同的登录过滤器，一样的配置方式
				.apply(new UserLoginConfigurer<>(securityConfig))
				.and()
				// 自定义的JWT令牌认证过滤器
				.apply(new JwtLoginConfigurer<>(securityConfig))
				.and()
				// 登出过滤器
				.logout()
				// 登出成功处理器
				.logoutSuccessHandler(new HttpStatusReturningLogoutSuccessHandler())
				.and()
				// 禁用Session会话机制（我们这个demo用的是JWT令牌的方式）
				.sessionManagement().disable()
				// 禁用SecurityContext，这个配置器实际上认证信息会保存在Session中，但我们并不用Session机制，所以也禁用
				.securityContext().disable();
	}

	@Override
	protected void configure(AuthenticationManagerBuilder auth) throws Exception {


		auth.authenticationProvider(userAuthenticationProvider())
				.authenticationProvider(jwtAuthenticationProvider());
	}

	@Bean
	protected AuthenticationProvider userAuthenticationProvider() throws Exception {


		return new UserAuthenticationProvider();
	}

	@Bean
	protected AuthenticationProvider jwtAuthenticationProvider() throws Exception {


		return new JwtAuthenticationProvider(securityConfig);
	}

	@Override
	public AuthenticationManager authenticationManagerBean() throws Exception {


		return super.authenticationManagerBean();
	}

	@Bean
	protected CorsConfigurationSource corsConfigurationSource() {


		CorsConfiguration configuration = new CorsConfiguration();
		configuration.setAllowedOrigins(Collections.singletonList("*"));
		configuration.setAllowedMethods(Arrays.asList("GET", "POST", "HEAD", "DELETE", "PUT", "OPTION"));
		configuration.setAllowedHeaders(Collections.singletonList("*"));
		UrlBasedCorsConfigurationSource source = new UrlBasedCorsConfigurationSource();
		source.registerCorsConfiguration("/**", configuration);
		return source;
	}

}

三、请求演示

接口定义

定义了三个接口，其中前两个是登录之后才能访问，后面那个广告接口不用登录的匿名用户也能访问。

• Demo类接口定义

@SpringBootApplication
@RestController
public class DemoApplication {



    public static void main(String[] args) {


        SpringApplication.run(DemoApplication.class, args);
    }

    /**
     * 用户登录才可访问
     *
     * @return
     */
    @GetMapping("/hello")
    public String hello() {


        return "Hello Spring Security!";
    }

    /**
     * 用户登录才可访问
     *
     * @return
     */
    @GetMapping("/bye")
    public String bye() {


        return "Bye Spring Security!";
    }

    /**
     * 广告接口，匿名用户可以访问
     *
     * @return
     */
    @GetMapping("/ad")
    public String no() {


        return "妈妈再也不用担心我的学习！";
    }
}

• 配置白名单URL和匿名用户URL

public class SecurityConfig {



    /**
     * 配置白名单（比如登录接口）
     */
    protected String[] permitUrls = Arrays.asList("/user/login").toArray(new String[1]);

    /**
     * 匿名访问的URL，即不用登录也可以访问（比如广告接口）
     */
    protected String[] anonymousUrls = Arrays.asList("/ad").toArray(new String[1]);

}

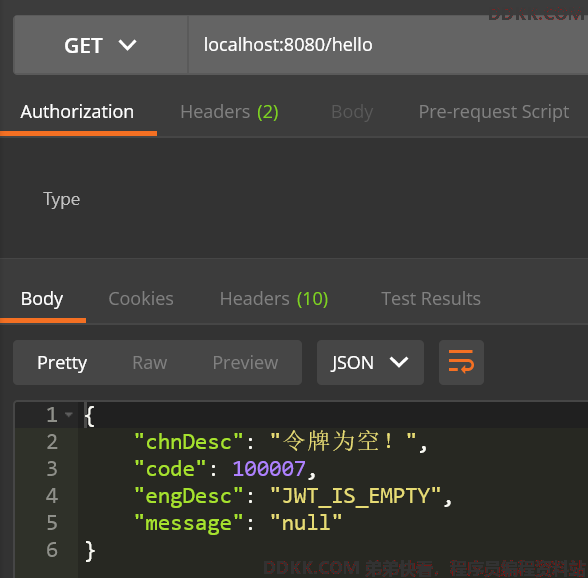

未登录时

• hello接口：/hello

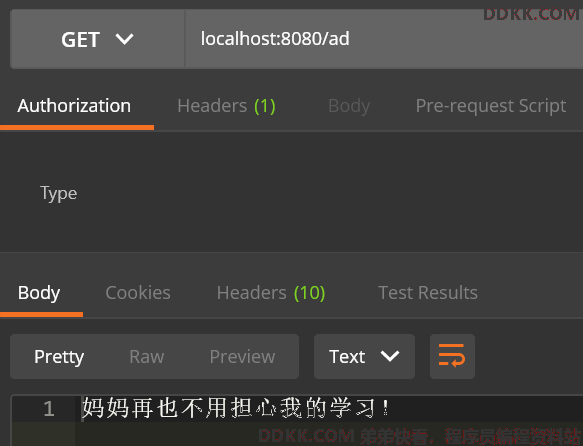

• 广告接口（匿名用户可访问）：/ad

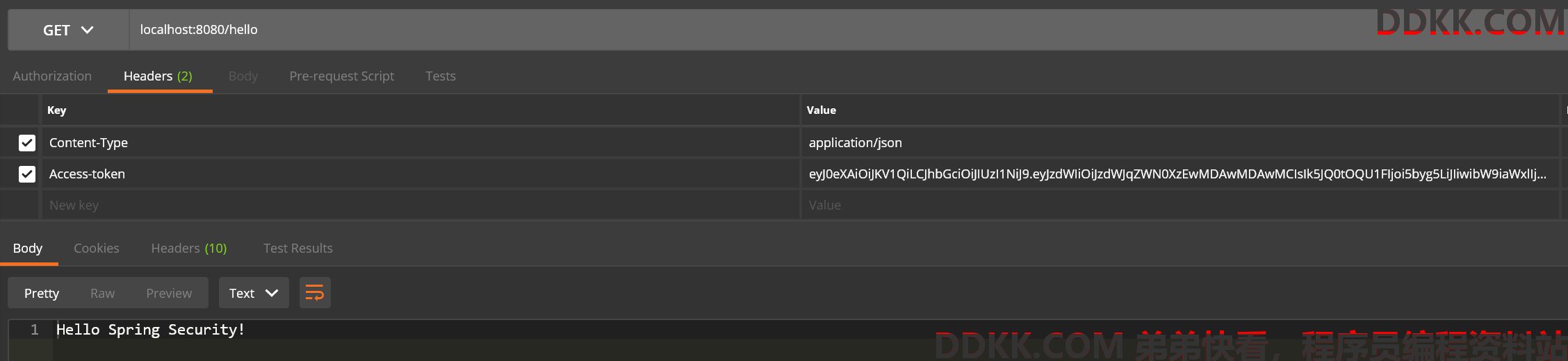

登录之后

• hello接口：/hello，将JWT令牌加入请求头（注意请求头名称是后台设置的）
