28、Kubernetes 实战 - Kubernetes Dashboard的部署

前言

在kubernetes中完成的所有操作都是通过命令工具kubectl完成的。其实，为了提供更丰富的用户体验，kubernetes还开发了一个基于web的用户界面(Dashboard)。用户可以使用Dashboard部署容器化的应用，还可以监控应用的状态，执行故障排查以及管理kubernetes中各种资源。

部署Dashboard

1、 下载yaml，并运行Dashboard；

wget  https://raw.githubusercontent.com/kubernetes/dashboard/v2.0.0/aio/deploy/recommended.yaml

*如果你无法下载这个文件，在文章结尾的附件资料可以找到

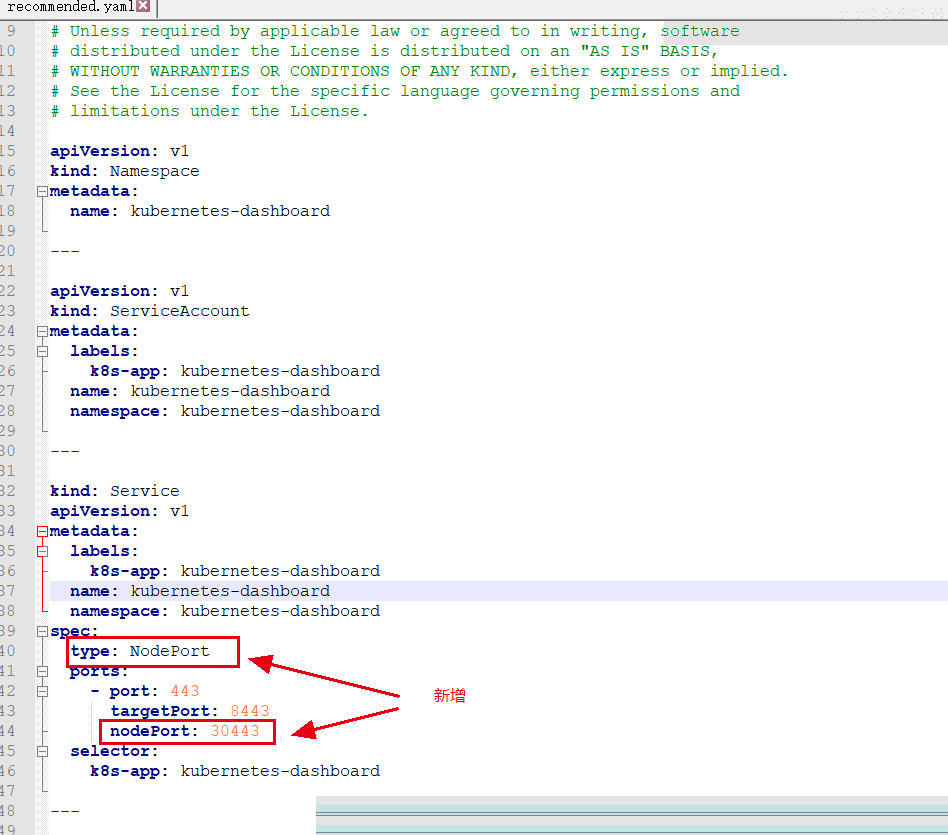

修改kubernetes-dashboard的Service类型

# 部署
[root@master ~]# kubectl create -f recommended.yaml
namespace/kubernetes-dashboard created
serviceaccount/kubernetes-dashboard created
service/kubernetes-dashboard created
secret/kubernetes-dashboard-certs created
secret/kubernetes-dashboard-csrf created
secret/kubernetes-dashboard-key-holder created
configmap/kubernetes-dashboard-settings created
role.rbac.authorization.k8s.io/kubernetes-dashboard created
clusterrole.rbac.authorization.k8s.io/kubernetes-dashboard created
rolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created
clusterrolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created
deployment.apps/kubernetes-dashboard created
service/dashboard-metrics-scraper created
deployment.apps/dashboard-metrics-scraper created

# 查看namespace下的kubernetes-dashboard下的资源
[root@master ~]# kubectl get pod,svc -n kubernetes-dashboard
NAME                                            READY   STATUS              RESTARTS   AGE
pod/dashboard-metrics-scraper-c79c65bb7-hghsv   0/1     ContainerCreating   0          25s
pod/kubernetes-dashboard-56484d4c5-fqlhl        0/1     ContainerCreating   0          25s

NAME                                TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)         AGE
service/dashboard-metrics-scraper   ClusterIP   10.102.77.66     <none>        8000/TCP        26s
service/kubernetes-dashboard        NodePort    10.108.251.231   <none>        443:30443/TCP   27s

2）创建访问账号，获取token

# 创建账号
[root@master ~]# kubectl create serviceaccount dashboard-admin -n kubernetes-dashboard
serviceaccount/dashboard-admin created

# 授权
[root@master ~]# kubectl create clusterrolebinding dashboard-admin-rb --clusterrole=cluster-admin --serviceaccount=kubernetes-dashboard:dashboard-admin
clusterrolebinding.rbac.authorization.k8s.io/dashboard-admin-rb created

# 获取token
[root@master ~]# kubectl describe secrets dashboard-admin-token-ggdpn -n kubernetes-dashboard
Name:         dashboard-admin-token-ggdpn
Namespace:    kubernetes-dashboard
Labels:       <none>
Annotations:  kubernetes.io/service-account.name: dashboard-admin
              kubernetes.io/service-account.uid: 5465bce4-e6ff-4cbe-a159-5c7c8761926e

Type:  kubernetes.io/service-account-token

Data
====
ca.crt:     1025 bytes
namespace:  20 bytes
token:      eyJhbGciOiJSUzI1NiIsImtpZCI6IjJkZDBwRU5vOU9Da3hBWHprc2cwZjM4SE9uYzV6dE4xal9wODBiTjltZkUifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJkYXNoYm9hcmQtYWRtaW4tdG9rZW4tZ2dkcG4iLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC5uYW1lIjoiZGFzaGJvYXJkLWFkbWluIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQudWlkIjoiNTQ2NWJjZTQtZTZmZi00Y2JlLWExNTktNWM3Yzg3NjE5MjZlIiwic3ViIjoic3lzdGVtOnNlcnZpY2VhY2NvdW50Omt1YmVybmV0ZXMtZGFzaGJvYXJkOmRhc2hib2FyZC1hZG1pbiJ9.lbsVxSUJls7nBRTXDWcfUAXzriGglvaCX4lzfI7ZXClvzRIojmTwQvP3ZH0ri7kid4Znbtw0T4yhA572hMxg3F5y4DdwBBb44tQXlG91rQYSz9j1LFdoeyHVh7HV3ap29sjDBcLUgyUF8ScR_FGy0ySlzrCi89EjR2_-iggY3A9fEw38WwmEW9kb77-YVgOjeAPJQosiAHXwD58LbwBI5use2QS4-w4SiuH26tZuX_WCY157BQhfEVffDoiBPrFhaDbUqBlgiJfPd9IYYIEgLSCMixofpcgjE5WNEmucmUCVfCZInFEdA060Asoj4R2yoMBK90glTZb6FfHDnKYrdg
[root@master ~]#

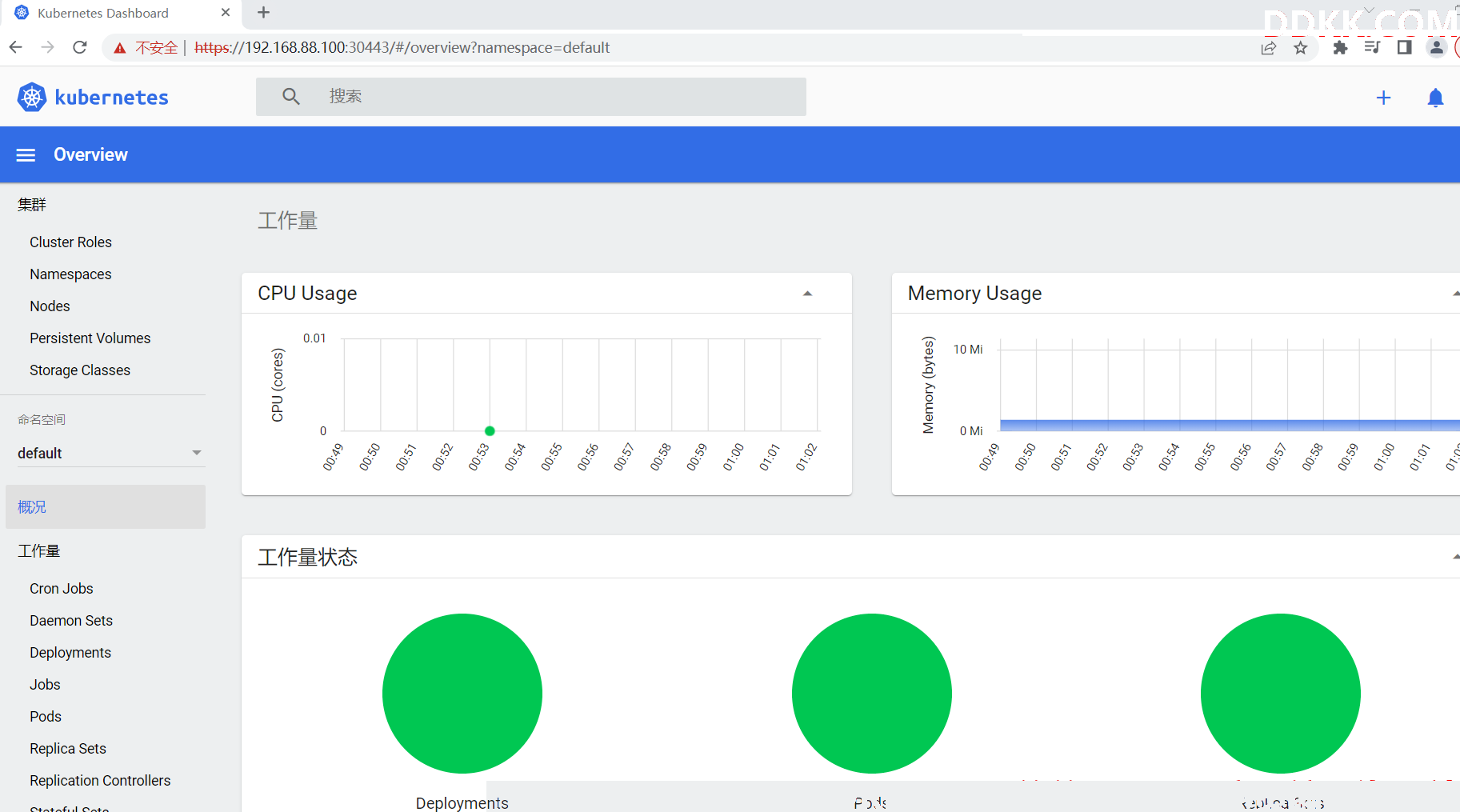

1、 登录KubernetesDashboard，打开浏览器访问：https://192.168.88.100:30443/，在第2步，我们获取到了token，此时我们就可以输入token登录到Dashboard了；

前面配置的30443端口，所以这里选择访问30443端口
