17、RocketMQ 源码解析 - 消费者启动
版本声明
基于rocketmq-all-4.3.1版本；
消费模式
1、 消费组；
- 一个消费组可以包含多个Consumer，一个消费组可以订阅多个Topic
- 消费组之间有集群和广播两种消费模式，集群模式下，Topic中的同一条消息只允许被其中一个Consumer消费。广播模式下，Topic中的同一条消息可以被集群中的所有Consumer消费。
2、 消费模式；
- 拉模式：消息到达Broker后，Consumer主动发起拉取请求
- 推模式：消息达到Broker后，由Broker推送给Consumer。RocketMQ中推模式的实现是基于拉模式，即一个拉取任务完成后开始下一个拉取任务
3、 集群模式下，多个Consumer需要对消息队列进行负载均衡一个消息队列同时只允许被一个Consumer消费，一个Consumer可以消费多个消息队列；
推模式消费
1、 DefaultMQPushConsumer是推模式核心入口类，主要委托DefaultMQPushConsumerImpl实现相关功能RocketMQ并没有真正实现推模式，而是Consumer主动向消息服务器拉取消息，RocketMQ推模式是循环向Broker端发送消息拉取请求；
2、 DefaultMQPushConsumer核心属性如下；
public class DefaultMQPushConsumer extends ClientConfig implements MQPushConsumer {
//委托类，大部分操作都是委托DefaultMQPushConsumerImpl
protected final transient DefaultMQPushConsumerImpl defaultMQPushConsumerImpl;
//消费组
private String consumerGroup;
// 消息消费模式，分为集群模式、广播模式，默认为集群模式。
private MessageModel messageModel = MessageModel.CLUSTERING;
/**
第一次消费时指定消费策略
CONSUME_FROM_LAST_OFFSET：此处分为两种情况，如果磁盘消息未过期且未被删除，则从最小偏移量开始消费。如果磁盘已过期并被删除，则从最大偏移量开始消费。
CONSUME_FROM_FIRST_OFFSET：从队列当前最小偏移量开始消费。
CONSUME_FROM_TIMESTAMP：从消费者指定时间戳开始消费。
如果从消息进度服务OffsetStore读取到MessageQueue中的偏移量不小于0，则使用读取到的偏移量拉取消息，只有在读到的偏移量小于0时，上述策略才会生效。
**/
private ConsumeFromWhere consumeFromWhere = ConsumeFromWhere.CONSUME_FROM_LAST_OFFSET;
private String consumeTimestamp = UtilAll.timeMillisToHumanString3(System.currentTimeMillis() - (1000 * 60 * 30));
// 集群模式下消息队列的负载策略
private AllocateMessageQueueStrategy allocateMessageQueueStrategy;
// 订阅信息
private Map<String /* topic */, String /* sub expression */> subscription = new HashMap<String, String>();
// 消息业务监听器。
private MessageListener messageListener;
// 消息消费进度存储器。
private OffsetStore offsetStore;
// 费者最小线程数
private int consumeThreadMin = 20;
// 消费者最大线程数
private int consumeThreadMax = 64;
private long adjustThreadPoolNumsThreshold = 100000;
//并发消息消费时处理队列最大跨度
private int consumeConcurrentlyMaxSpan = 2000;
//每1000次流控后打印流控日志
private int pullThresholdForQueue = 1000;
private int pullThresholdSizeForQueue = 100;
private int pullThresholdForTopic = -1;
private int pullThresholdSizeForTopic = -1;
// 推模式下拉取任务的间隔时间
private long pullInterval = 0;
//消息并发消费时一次消费消息的条数
private int consumeMessageBatchMaxSize = 1;
//每次消息拉取的条数
private int pullBatchSize = 32;
// 是否每次拉取消息都更新订阅信息，默认为false。
private boolean postSubscriptionWhenPull = false;
/**
* Whether the unit of subscription group
*/
private boolean unitMode = false;
// 最大消费重试次数
private int maxReconsumeTimes = -1;
// 延迟将该队列的消息提交到消费者线程的等待时间，默认延迟1s
private long suspendCurrentQueueTimeMillis = 1000;
// 息消费超时时间
private long consumeTimeout = 15;
启动流程
1、 DefaultMQPushConsumer启动就是委托DefaultMQPushConsumerImpl来实现的；
@Override
public void start() throws MQClientException {
this.defaultMQPushConsumerImpl.start();
}

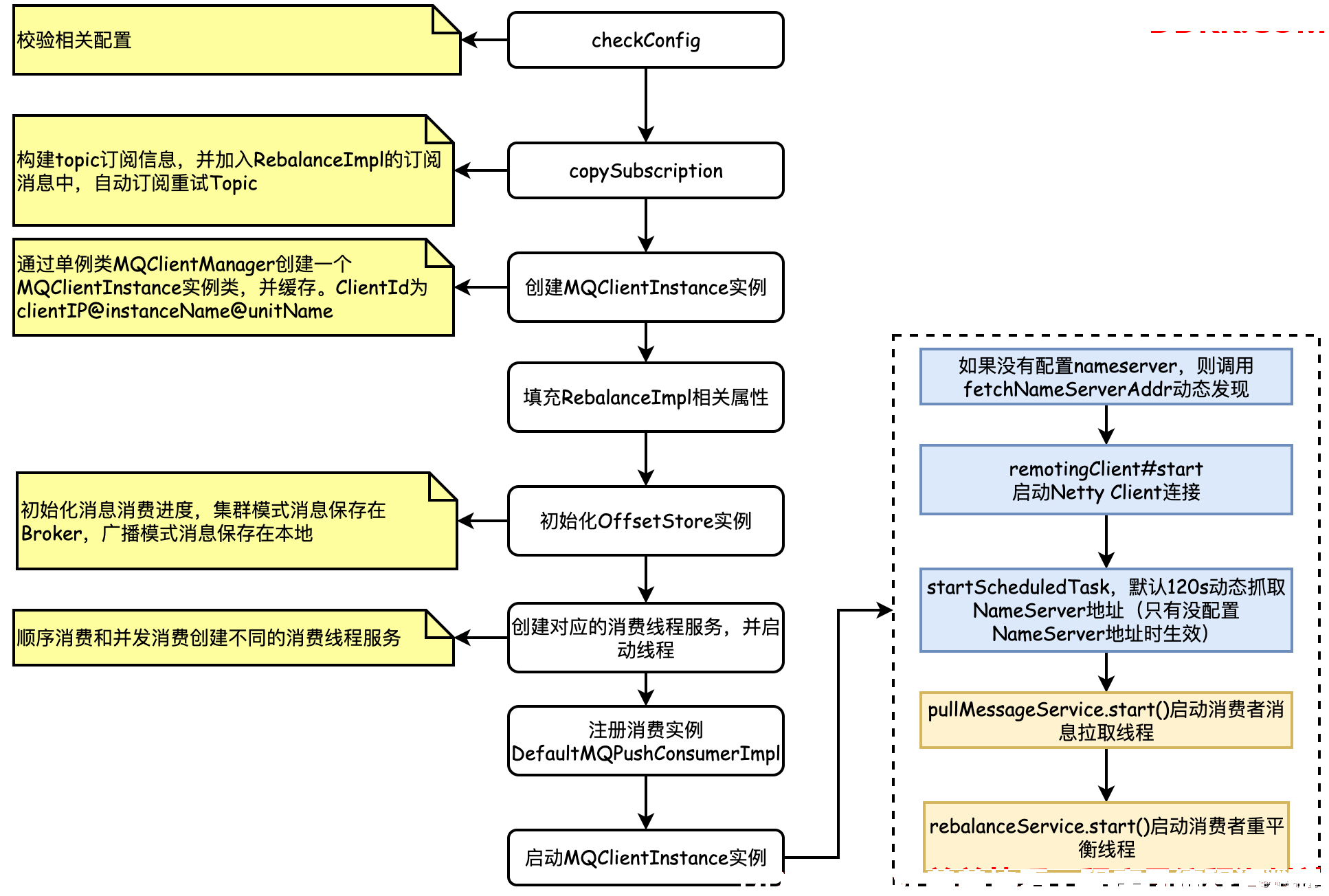

2、 DefaultMQPushConsumerImpl启动流程图；
1、 启动源码；
public synchronized void start() throws MQClientException {
switch (this.serviceState) {
case CREATE_JUST:
log.info("the consumer [{}] start beginning. messageModel={}, isUnitMode={}", this.defaultMQPushConsumer.getConsumerGroup(),
this.defaultMQPushConsumer.getMessageModel(), this.defaultMQPushConsumer.isUnitMode());
this.serviceState = ServiceState.START_FAILED;
//1. 检查配置
this.checkConfig();
//2. 构建订阅SubscriptionData信息，并加入到RebalanceImpl的订阅消息中
this.copySubscription();
if (this.defaultMQPushConsumer.getMessageModel() == MessageModel.CLUSTERING) {
this.defaultMQPushConsumer.changeInstanceNameToPID();
}
//3. 实例化MQClientInstance
this.mQClientFactory = MQClientManager.getInstance().getAndCreateMQClientInstance(this.defaultMQPushConsumer, this.rpcHook);
//4. 设置reblance属性
this.rebalanceImpl.setConsumerGroup(this.defaultMQPushConsumer.getConsumerGroup());
this.rebalanceImpl.setMessageModel(this.defaultMQPushConsumer.getMessageModel());
this.rebalanceImpl.setAllocateMessageQueueStrategy(this.defaultMQPushConsumer.getAllocateMessageQueueStrategy());
this.rebalanceImpl.setmQClientFactory(this.mQClientFactory);
//5. 设置pullAPIWrapper的消息过滤Hook
this.pullAPIWrapper = new PullAPIWrapper(
mQClientFactory,
this.defaultMQPushConsumer.getConsumerGroup(), isUnitMode());
this.pullAPIWrapper.registerFilterMessageHook(filterMessageHookList);
//6.
if (this.defaultMQPushConsumer.getOffsetStore() != null) {
this.offsetStore = this.defaultMQPushConsumer.getOffsetStore();
} else {
switch (this.defaultMQPushConsumer.getMessageModel()) {
case BROADCASTING:
//如果是广播模式则消费进度保存在本地
this.offsetStore = new LocalFileOffsetStore(this.mQClientFactory, this.defaultMQPushConsumer.getConsumerGroup());
break;
case CLUSTERING:
//集群模式消费进度保存在服务端
this.offsetStore = new RemoteBrokerOffsetStore(this.mQClientFactory, this.defaultMQPushConsumer.getConsumerGroup());
break;
default:
break;
}
this.defaultMQPushConsumer.setOffsetStore(this.offsetStore);
}
this.offsetStore.load();
// 顺序消费和并发消费，创建对应的消费线程服务
if (this.getMessageListenerInner() instanceof MessageListenerOrderly) {
this.consumeOrderly = true;
this.consumeMessageService =
new ConsumeMessageOrderlyService(this, (MessageListenerOrderly) this.getMessageListenerInner());
} else if (this.getMessageListenerInner() instanceof MessageListenerConcurrently) {
this.consumeOrderly = false;
this.consumeMessageService =
new ConsumeMessageConcurrentlyService(this, (MessageListenerConcurrently) this.getMessageListenerInner());
}
this.consumeMessageService.start();
// 向MQClientInstance注册消费者实例
boolean registerOK = mQClientFactory.registerConsumer(this.defaultMQPushConsumer.getConsumerGroup(), this);
if (!registerOK) {
this.serviceState = ServiceState.CREATE_JUST;
this.consumeMessageService.shutdown();
throw new MQClientException("The consumer group[" + this.defaultMQPushConsumer.getConsumerGroup()
+ "] has been created before, specify another name please." + FAQUrl.suggestTodo(FAQUrl.GROUP_NAME_DUPLICATE_URL),
null);
}
// 启动MQClientInstance实例
mQClientFactory.start();
log.info("the consumer [{}] start OK.", this.defaultMQPushConsumer.getConsumerGroup());
this.serviceState = ServiceState.RUNNING;
break;
case RUNNING:
case START_FAILED:
case SHUTDOWN_ALREADY:
throw new MQClientException("The PushConsumer service state not OK, maybe started once, "
+ this.serviceState
+ FAQUrl.suggestTodo(FAQUrl.CLIENT_SERVICE_NOT_OK),
null);
default:
break;
}
2、 检查配置；
private void checkConfig() throws MQClientException {
/**
* 1. 消费组名称不能为空
* 2. 消费组名称必须符合正则表达式**^[%|a-zA-Z0-9_-]+$
* 3. 消费组名称不能大于255
*/
Validators.checkGroup(this.defaultMQPushConsumer.getConsumerGroup());
//为什么又检查一遍？
if (null == this.defaultMQPushConsumer.getConsumerGroup()) {
throw new MQClientException(
"consumerGroup is null"
+ FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL),
null);
}
//消费组名称不能等于DEFAULT_CONSUMER
if (this.defaultMQPushConsumer.getConsumerGroup().equals(MixAll.DEFAULT_CONSUMER_GROUP)) {
throw new MQClientException(
"consumerGroup can not equal "
+ MixAll.DEFAULT_CONSUMER_GROUP
+ ", please specify another one."
+ FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL),
null);
}
//消费模式不能为空，集群或者广播，默认是集群模式
if (null == this.defaultMQPushConsumer.getMessageModel()) {
throw new MQClientException(
"messageModel is null"
+ FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL),
null);
}
//默认从上一个CONSUME_FROM_LAST_OFFSET
if (null == this.defaultMQPushConsumer.getConsumeFromWhere()) {
throw new MQClientException(
"consumeFromWhere is null"
+ FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL),
null);
}
//第一次启动，默认从半小时前消费
Date dt = UtilAll.parseDate(this.defaultMQPushConsumer.getConsumeTimestamp(), UtilAll.YYYYMMDDHHMMSS);
if (null == dt) {
throw new MQClientException(
"consumeTimestamp is invalid, the valid format is yyyyMMddHHmmss,but received "
+ this.defaultMQPushConsumer.getConsumeTimestamp()
+ " " + FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL), null);
}
// allocateMessageQueueStrategy
if (null == this.defaultMQPushConsumer.getAllocateMessageQueueStrategy()) {
throw new MQClientException(
"allocateMessageQueueStrategy is null"
+ FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL),
null);
}
// subscription
if (null == this.defaultMQPushConsumer.getSubscription()) {
throw new MQClientException(
"subscription is null"
+ FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL),
null);
}
// messageListener
if (null == this.defaultMQPushConsumer.getMessageListener()) {
throw new MQClientException(
"messageListener is null"
+ FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL),
null);
}
//顺序消费监听
boolean orderly = this.defaultMQPushConsumer.getMessageListener() instanceof MessageListenerOrderly;
//并发消费监听
boolean concurrently = this.defaultMQPushConsumer.getMessageListener() instanceof MessageListenerConcurrently;
if (!orderly && !concurrently) {
throw new MQClientException(
"messageListener must be instanceof MessageListenerOrderly or MessageListenerConcurrently"
+ FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL),
null);
}
// consumeThreadMin 最小消费线程数量只能在[1,1000]之间，默认20
if (this.defaultMQPushConsumer.getConsumeThreadMin() < 1
|| this.defaultMQPushConsumer.getConsumeThreadMin() > 1000) {
throw new MQClientException(
"consumeThreadMin Out of range [1, 1000]"
+ FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL),
null);
}
// consumeThreadMax 最大消费线程数量只能在[1,1000]之间，默认64
if (this.defaultMQPushConsumer.getConsumeThreadMax() < 1 || this.defaultMQPushConsumer.getConsumeThreadMax() > 1000) {
throw new MQClientException(
"consumeThreadMax Out of range [1, 1000]"
+ FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL),
null);
}
// consumeThreadMin can't be larger than consumeThreadMax
if (this.defaultMQPushConsumer.getConsumeThreadMin() > this.defaultMQPushConsumer.getConsumeThreadMax()) {
throw new MQClientException(
"consumeThreadMin (" + this.defaultMQPushConsumer.getConsumeThreadMin() + ") "
+ "is larger than consumeThreadMax (" + this.defaultMQPushConsumer.getConsumeThreadMax() + ")",
null);
}
//偏移量最大的消息与偏移量最小的消息跨度设置只能在[1,65535],默认2000
// consumeConcurrentlyMaxSpan
if (this.defaultMQPushConsumer.getConsumeConcurrentlyMaxSpan() < 1
|| this.defaultMQPushConsumer.getConsumeConcurrentlyMaxSpan() > 65535) {
throw new MQClientException(
"consumeConcurrentlyMaxSpan Out of range [1, 65535]"
+ FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL),
null);
}
//队列级别的流控阈值，默认每个消息队列缓存1000条消息，设置范围[1,65535]
// pullThresholdForQueue
if (this.defaultMQPushConsumer.getPullThresholdForQueue() < 1 || this.defaultMQPushConsumer.getPullThresholdForQueue() > 65535) {
throw new MQClientException(
"pullThresholdForQueue Out of range [1, 65535]"
+ FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL),
null);
}
//topic级别的流控，默认-1(无限制)，设置范围[1,6553500],如果设置为有限值，则根据pullThresholdForTopic来计算并覆盖pullThresholdForQueue的配置
// pullThresholdForTopic
if (this.defaultMQPushConsumer.getPullThresholdForTopic() != -1) {
if (this.defaultMQPushConsumer.getPullThresholdForTopic() < 1 || this.defaultMQPushConsumer.getPullThresholdForTopic() > 6553500) {
throw new MQClientException(
"pullThresholdForTopic Out of range [1, 6553500]"
+ FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL),
null);
}
}
//在队列级别限制消息大小，每个队列最多缓存100MB(默认)的消息，设置范围[1,1024].
// pullThresholdSizeForQueue
if (this.defaultMQPushConsumer.getPullThresholdSizeForQueue() < 1 || this.defaultMQPushConsumer.getPullThresholdSizeForQueue() > 1024) {
throw new MQClientException(
"pullThresholdSizeForQueue Out of range [1, 1024]"
+ FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL),
null);
}
//在topic级别限制消息大小,默认-1表示不限制，设置范围[1,102400].
if (this.defaultMQPushConsumer.getPullThresholdSizeForTopic() != -1) {
// pullThresholdSizeForTopic
if (this.defaultMQPushConsumer.getPullThresholdSizeForTopic() < 1 || this.defaultMQPushConsumer.getPullThresholdSizeForTopic() > 102400) {
throw new MQClientException(
"pullThresholdSizeForTopic Out of range [1, 102400]"
+ FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL),
null);
}
}
//推模式下，消息拉取的时间间隔，默认0，配置范围[0,65535]
// pullInterval
if (this.defaultMQPushConsumer.getPullInterval() < 0 || this.defaultMQPushConsumer.getPullInterval() > 65535) {
throw new MQClientException(
"pullInterval Out of range [0, 65535]"
+ FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL),
null);
}
//消息并发消费时，一次消费的消息条数，默认值为1，配置返回[1,1024]
// consumeMessageBatchMaxSize
if (this.defaultMQPushConsumer.getConsumeMessageBatchMaxSize() < 1
|| this.defaultMQPushConsumer.getConsumeMessageBatchMaxSize() > 1024) {
throw new MQClientException(
"consumeMessageBatchMaxSize Out of range [1, 1024]"
+ FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL),
null);
}
//每次消息拉取所拉取的条数，默认32，配置范围[1,1024]
// pullBatchSize
if (this.defaultMQPushConsumer.getPullBatchSize() < 1 || this.defaultMQPushConsumer.getPullBatchSize() > 1024) {
throw new MQClientException(
"pullBatchSize Out of range [1, 1024]"
+ FAQUrl.suggestTodo(FAQUrl.CLIENT_PARAMETER_CHECK_URL),
null);
}
}
拉模式消费
1、 DefaultMQPullConsumer是拉模式核心入口类，主要委托DefaultMQPullConsumerImpl实现相关功能拉模式启动通过MQPullConsumerScheduleService来进行调度；
2、 DefaultMQPushConsumer是推模式核心入口类，主要委托DefaultMQPushConsumerImpl实现相关功能RocketMQ并没有真正实现推模式，而是Consumer主动向消息服务器拉取消息，RocketMQ推模式是循环向Broker端发送消息拉取请求；
启动流程
1、 DefaultMQPullConsumer委托DefaultMQPullConsumerImpl启动；
@Override
public void start() throws MQClientException {
this.defaultMQPullConsumerImpl.start();
}
2、 DefaultMQPullConsumerImpl启动流程与DefaultMQPushConsumerImpl几乎一样,不再赘述；
配置参数总结
1、 消费组名称规则；
- 消费组(consumerGroup)名称不能为空
- 消费组(consumerGroup)名称必须符合正则表达式**1+$**
- 消费组(consumerGroup)名称不能大于255
- 消费组名称不能等于
DEFAULT_CONSUMER
2、 消费模式；
- 集群模式（默认）
- 广播模式
3、 consumeFromWhere:如果从消费进度OffsetStore读取到的MessageQueue中的偏移量小于0时，采取以下的配置策略；
- CONSUME_FROM_LAST_OFFSET:从队列当前最大偏移量开始消费(默认配置)
- CONSUME_FROM_FIRST_OFFSET:从队列当前最小偏移量开始消费
- CONSUME_FROM_TIMESTAMP:从Consumer启动时间戳开始消费
4、 消费线程；
- 最小消费线程数量只能在[1,1000]之间，默认20
- 最大消费线程数量只能在[1,1000]之间，默认64
5、 偏移量：偏移量最大的消息与偏移量最小的消息跨度设置只能在[1,65535],默认2000；
6、 队列级别的流控阈值，默认每个消息队列缓存1000条消息，设置范围[1,65535]；
7、 topic级别的流控，默认-1(无限制)，设置范围[1,6553500],如果设置为有限值，则根据pullThresholdForTopic来计算并覆盖pullThresholdForQueue的配置；
8、 在队列级别限制消息大小，每个队列最多缓存100MB(默认)的消息，设置范围[1,1024].；
9、 在topic级别限制消息大小,默认-1表示不限制，设置范围[1,102400].；
10、 推模式下，消息拉取的时间间隔，默认0，配置范围[0,65535]；
11、 消息并发消费时，一次消费的消息条数，默认值为1，配置返回[1,1024]；
12、 每次消息拉取所拉取的条数，默认32，配置范围[1,1024]；
1、 %|a-zA-Z0-9_-↩︎；
