09、RocketMQ 源码解析 - AllocateMappedFileService
简介
1、 AllocateMappedFileService继承了ServiceThread，说明它是服务线程类AllocateMappedFileService用于提前创建一个MappedFile和下一个MappedFile；
2、 核心属性；
public class AllocateMappedFileService extends ServiceThread {
private static final InternalLogger log = InternalLoggerFactory.getLogger(LoggerName.STORE_LOGGER_NAME);
//等待创建MappedFile的超时时间，默认5秒
private static int waitTimeOut = 1000 * 5;
//用来保存当前所有待处理的分配请求，其中key是filePath,value是分配请求AllocateRequest。
//如果分配请求被成功处理，即获取到映射文件则从请求会从requestTable中移除
private ConcurrentMap<String, AllocateRequest> requestTable =
new ConcurrentHashMap<String, AllocateRequest>();
private PriorityBlockingQueue<AllocateRequest> requestQueue =
new PriorityBlockingQueue<AllocateRequest>();
//创建MappedFile是否有异常
private volatile boolean hasException = false;
private DefaultMessageStore messageStore;
...省略...
}
3、 服务线程运行逻辑；
/**
* 此线程在DefaultMessageStore创建时启动
*/
public void run() {
log.info(this.getServiceName() + " service started");
while (!this.isStopped() && this.mmapOperation()) {
}
log.info(this.getServiceName() + " service end");
}

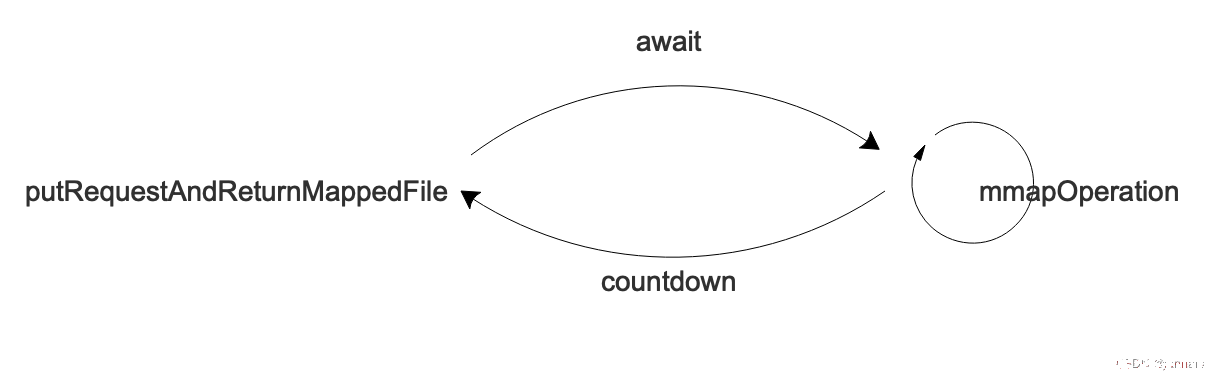

4、 AllocateMappedFileService有两个核心方法putRequestAndReturnMappedFile和mmapOperation两个方法配合实现MappedFile文件的的创建和预热MappedFile
；

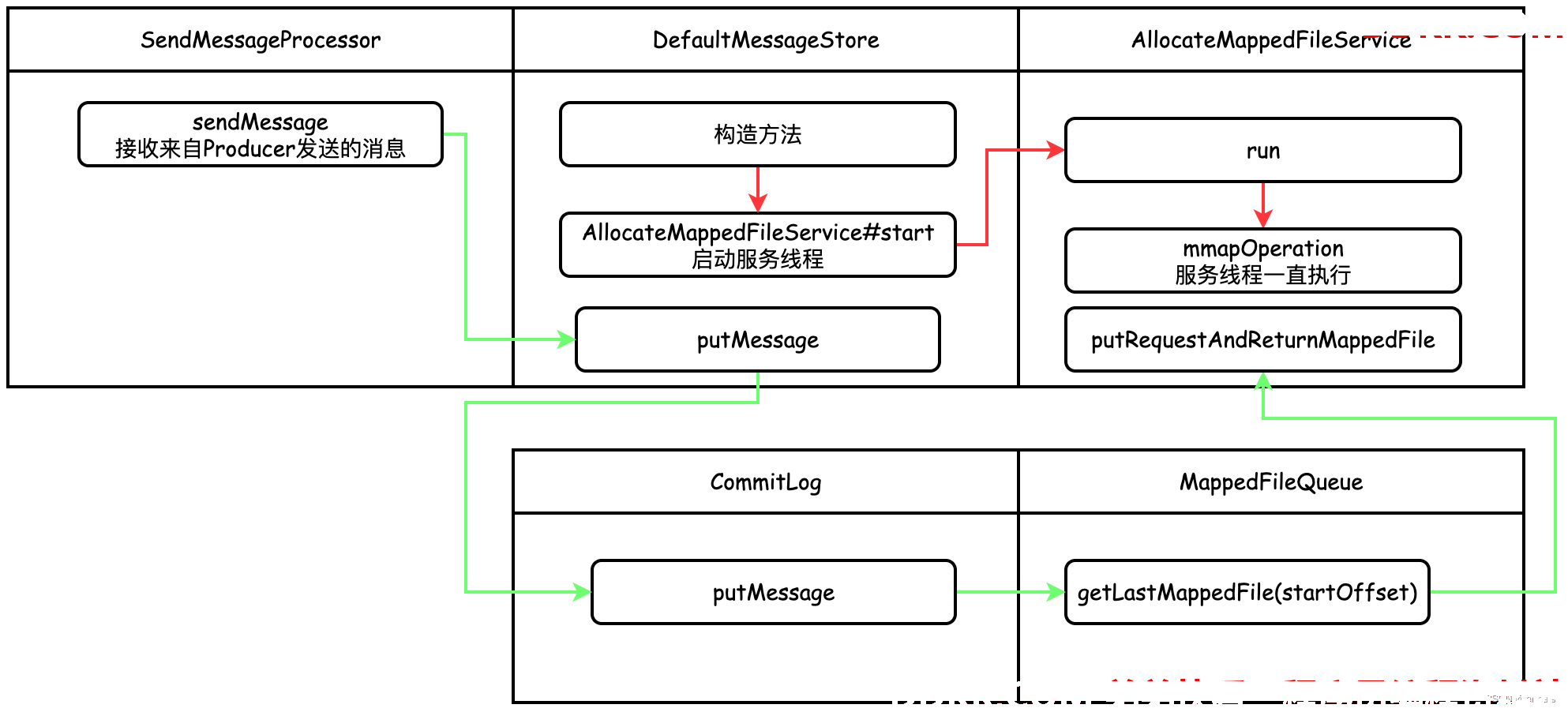

5、 流程图；
AllocateRequest
1、 AllocateRequest是AllocateMappedFileService的静态内部类，实现了Comparable接口，用于优先级队列；
static class AllocateRequest implements Comparable<AllocateRequest> {
// Full file path
private String filePath;
private int fileSize;
//为0表示MappedFile创建完成
private CountDownLatch countDownLatch = new CountDownLatch(1);
private volatile MappedFile mappedFile = null;
/**
* fileSize大的优先级高，文件大小相同，文件的offset越小优先级越高
*/
public int compareTo(AllocateRequest other) {
if (this.fileSize < other.fileSize)
return 1;
else if (this.fileSize > other.fileSize) {
return -1;
} else {
int mIndex = this.filePath.lastIndexOf(File.separator);
long mName = Long.parseLong(this.filePath.substring(mIndex + 1));
int oIndex = other.filePath.lastIndexOf(File.separator);
long oName = Long.parseLong(other.filePath.substring(oIndex + 1));
if (mName < oName) {
return -1;
} else if (mName > oName) {
return 1;
} else {
return 0;
}
}
// return this.fileSize < other.fileSize ? 1 : this.fileSize >
// other.fileSize ? -1 : 0;
}
}
putRequestAndReturnMappedFile
1、 putRequestAndReturnMappedFile是外部创建MappedFile的入口（MappedFileQueue#getLastMappedFile里调用，前提是allocateMappedFileService不为空），创建当前的MappedFile和下一个MappedFile
2、 putRequestAndReturnMappedFile只是将；
创建一个AllocateRequest，并放在待处理的缓存中（处理成功后会从缓存中移除）
如果在CountDownLatch#await前已经有异常（hasException使用volatile修饰，具备可见性），表示mmapOperation已经执行完成，此时直接返回null
执行CountDownLatch#await，默认等待5s。如果没有执行成功，直接返回null，但不移除requestTable（下次可以直接到wait这里）。如果执行成功，移除requestTable，直接返回创建好的MappedFile
3、 源码；
/**
* 提交MappedFile的创建请求。包含下一个和下下个MappedFile.
* @param nextFilePath 下一个文件的路径
* @param nextNextFilePath 下下个文件的路径
* @param fileSize
* @return
*/
public MappedFile putRequestAndReturnMappedFile(String nextFilePath, String nextNextFilePath, int fileSize) {
int canSubmitRequests = 2;
if (this.messageStore.getMessageStoreConfig().isTransientStorePoolEnable()) {
//快速失败策略时
if (this.messageStore.getMessageStoreConfig().isFastFailIfNoBufferInStorePool()
&& BrokerRole.SLAVE != this.messageStore.getMessageStoreConfig().getBrokerRole()) {
//if broker is slave, don't fast fail even no buffer in pool
//计算TransientStorePool中剩余的buffer数量减去requestQueue中待分配的数量后，剩余的buffer数量
canSubmitRequests = this.messageStore.getTransientStorePool().remainBufferNumbs() - this.requestQueue.size();
}
}
AllocateRequest nextReq = new AllocateRequest(nextFilePath, fileSize);
//查看是否已经存在
boolean nextPutOK = this.requestTable.putIfAbsent(nextFilePath, nextReq) == null;
if (nextPutOK) {
//TransientStorePool 不足，不能创建，直接返回null
if (canSubmitRequests <= 0) {
log.warn("[NOTIFYME]TransientStorePool is not enough, so create mapped file error, " +
"RequestQueueSize : {}, StorePoolSize: {}", this.requestQueue.size(), this.messageStore.getTransientStorePool().remainBufferNumbs());
this.requestTable.remove(nextFilePath);
return null;
}
/**
* FIXME jannal 无界队列offer永远返回true，此处的判断毫无意义吧
*/
boolean offerOK = this.requestQueue.offer(nextReq);
if (!offerOK) {
log.warn("never expected here, add a request to preallocate queue failed");
}
canSubmitRequests--;
}
AllocateRequest nextNextReq = new AllocateRequest(nextNextFilePath, fileSize);
boolean nextNextPutOK = this.requestTable.putIfAbsent(nextNextFilePath, nextNextReq) == null;
if (nextNextPutOK) {
if (canSubmitRequests <= 0) {
log.warn("[NOTIFYME]TransientStorePool is not enough, so skip preallocate mapped file, " +
"RequestQueueSize : {}, StorePoolSize: {}", this.requestQueue.size(), this.messageStore.getTransientStorePool().remainBufferNumbs());
this.requestTable.remove(nextNextFilePath);
} else {
boolean offerOK = this.requestQueue.offer(nextNextReq);
if (!offerOK) {
log.warn("never expected here, add a request to preallocate queue failed");
}
}
}
// mmapOperation已经执行完成，并且创建MappedFile有异常
if (hasException) {
log.warn(this.getServiceName() + " service has exception. so return null");
return null;
}
AllocateRequest result = this.requestTable.get(nextFilePath);
try {
if (result != null) {
//默认5s，等待run方法中的mmapOperation执行释放countDown
boolean waitOK = result.getCountDownLatch().await(waitTimeOut, TimeUnit.MILLISECONDS);
// 超时直接返回null（此时不移除requestTable，下次可直接直接到wait这里，上面的缓存put无需再次执行）
if (!waitOK) {
log.warn("create mmap timeout " + result.getFilePath() + " " + result.getFileSize());
return null;
} else {
this.requestTable.remove(nextFilePath);
return result.getMappedFile();
}
} else {
//FIXME 这里完全没有必要打log，先put，然后get，其他线程也没有remove，所以是必然可以拿到的
log.error("find preallocate mmap failed, this never happen");
}
} catch (InterruptedException e) {
log.warn(this.getServiceName() + " service has exception. ", e);
}
return null;
}
mmapOperation
1、 mmapOperation方法主要做以下两件事情，而且除非线程被中断或者服务终止，否则这个过程一直进行；
- 初始化MappedFile
- 预热MappedFile
2、 mmapOperation源码；
-
从优先级队列中获取AllocateRequest
-
创建MappedFile
-
根据配置是否预热MappedFile（填充0字节），将MappedFile放入到AllocateRequest
-
如果出现IOException将AllocateRequest重新放入优先级队列
-
调用AllocateRequest的CountDownLatch#countDown方法通知putRequestAndReturnMappedFile线程
3、 源码逻辑；
/**
* Only interrupted by the external thread, will return false
*/
private boolean mmapOperation() {
boolean isSuccess = false;
AllocateRequest req = null;
try {
// 从优先级队列里获取AllocateRequest
req = this.requestQueue.take();
//从Map里获取AllocateRequest
AllocateRequest expectedRequest = this.requestTable.get(req.getFilePath());
if (null == expectedRequest) {
log.warn("this mmap request expired, maybe cause timeout " + req.getFilePath() + " "
+ req.getFileSize());
return true;
}
//putRequestAndReturnMappedFile里map与优先级队列并不是强一致，是最终一致的
if (expectedRequest != req) {
log.warn("never expected here, maybe cause timeout " + req.getFilePath() + " "
+ req.getFileSize() + ", req:" + req + ", expectedRequest:" + expectedRequest);
return true;
}
if (req.getMappedFile() == null) {
long beginTime = System.currentTimeMillis();
MappedFile mappedFile;
//堆外内存
if (messageStore.getMessageStoreConfig().isTransientStorePoolEnable()) {
try {
mappedFile = ServiceLoader.load(MappedFile.class).iterator().next();
mappedFile.init(req.getFilePath(), req.getFileSize(), messageStore.getTransientStorePool());
} catch (RuntimeException e) {
log.warn("Use default implementation.");
mappedFile = new MappedFile(req.getFilePath(), req.getFileSize(), messageStore.getTransientStorePool());
}
} else {
mappedFile = new MappedFile(req.getFilePath(), req.getFileSize());
}
long eclipseTime = UtilAll.computeEclipseTimeMilliseconds(beginTime);
//创建MappedFile 花费大于10ms打印日志
if (eclipseTime > 10) {
int queueSize = this.requestQueue.size();
log.warn("create mappedFile spent time(ms) " + eclipseTime + " queue size " + queueSize
+ " " + req.getFilePath() + " " + req.getFileSize());
}
// pre write mappedFile 默认warmMapedFileEnable=false，即默认不预热
if (mappedFile.getFileSize() >= this.messageStore.getMessageStoreConfig()
.getMapedFileSizeCommitLog()
&&
this.messageStore.getMessageStoreConfig().isWarmMapedFileEnable()) {
mappedFile.warmMappedFile(this.messageStore.getMessageStoreConfig().getFlushDiskType(),
this.messageStore.getMessageStoreConfig().getFlushLeastPagesWhenWarmMapedFile());
}
req.setMappedFile(mappedFile);
this.hasException = false;
isSuccess = true;
}
} catch (InterruptedException e) {
log.warn(this.getServiceName() + " interrupted, possibly by shutdown.");
this.hasException = true;
return false;
} catch (IOException e) {
log.warn(this.getServiceName() + " service has exception. ", e);
this.hasException = true;
if (null != req) {
//重新插入请求到队列
requestQueue.offer(req);
try {
Thread.sleep(1);
} catch (InterruptedException ignored) {
}
}
} finally {
//AllocateRequest计数器减一，表示MappedFile已经创建完成
if (req != null && isSuccess)
req.getCountDownLatch().countDown();
}
return true;
}
