Spring Boot Admin 实战

07、Spring Boot 整合Admin 实战 A

1 SpringBootAdmin 简介

1.1 概述

SpringBootAdmin 是一个非常好用的监控和管理的开源组件，该组件能够将 Actuator 中的信息进行界面化的展示，也可以监控所有 Spring Boot 应用的健康状况，提供实时警报功能。

1.2 功能特性

显示应用程序的监控状态
应用程序上下线监控
查看 JVM，线程信息
可视化的查看日志以及下载日志文件
动态切换日志级别
Http 请求信息跟踪
…

2 Server端整合

2.1 添加pom配置

<!--Admin+Actuator 健康信息健康-->
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-actuator</artifactId>
</dependency>
<dependency>
    <groupId>de.codecentric</groupId>
    <artifactId>spring-boot-admin-starter-server</artifactId>
</dependency>
<dependency>
    <groupId>de.codecentric</groupId>
    <artifactId>spring-boot-admin-starter-client</artifactId>
</dependency>

2.2 配置yaml参数

# Boot参数配置信息
spring:
  application:
    name: xs-monitor-server
  profiles:
    active: dev
  boot:
    admin:
      monitor:
        default-timeout: 5000
      client:
        url: http://localhost:${

     server.port}${

     spring.boot.admin.context-path}
       注册实例 优先使用IP
        instance:
          prefer-ip: true
      监控访问前缀信息
      context-path: /admin

# Actuator 监控端点的配置项
management:
  health:
    mail:
      enabled: false
  endpoints:
    web:
      base-path: /actuator
      exposure:
        include: '*'
  endpoint:
    health:
      show-details: always
    logfile:
      external-file: ${

     user.dir}/logs/${

     spring.profiles.active}/xs-monitor/xs-monitor-server/sys-console.log

2.3 编辑config配置信息

package com.xs.monitor.config;

import de.codecentric.boot.admin.server.config.EnableAdminServer;
import org.springframework.boot.autoconfigure.condition.ConditionalOnMissingBean;
import org.springframework.boot.autoconfigure.task.TaskExecutionAutoConfiguration;
import org.springframework.boot.task.TaskExecutorBuilder;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Lazy;
import org.springframework.scheduling.concurrent.ThreadPoolTaskExecutor;

import java.util.concurrent.Executor;
// @EnableAdminServer 添加此注解表示启用Admin监控
@Configuration
@EnableAdminServer
public class AdminServerConfig {



    @Lazy
    @Bean(name = TaskExecutionAutoConfiguration.APPLICATION_TASK_EXECUTOR_BEAN_NAME)
    @ConditionalOnMissingBean(Executor.class)
    public ThreadPoolTaskExecutor applicationTaskExecutor(TaskExecutorBuilder builder) {


        return builder.build();
    }
}

2.4 启动Server

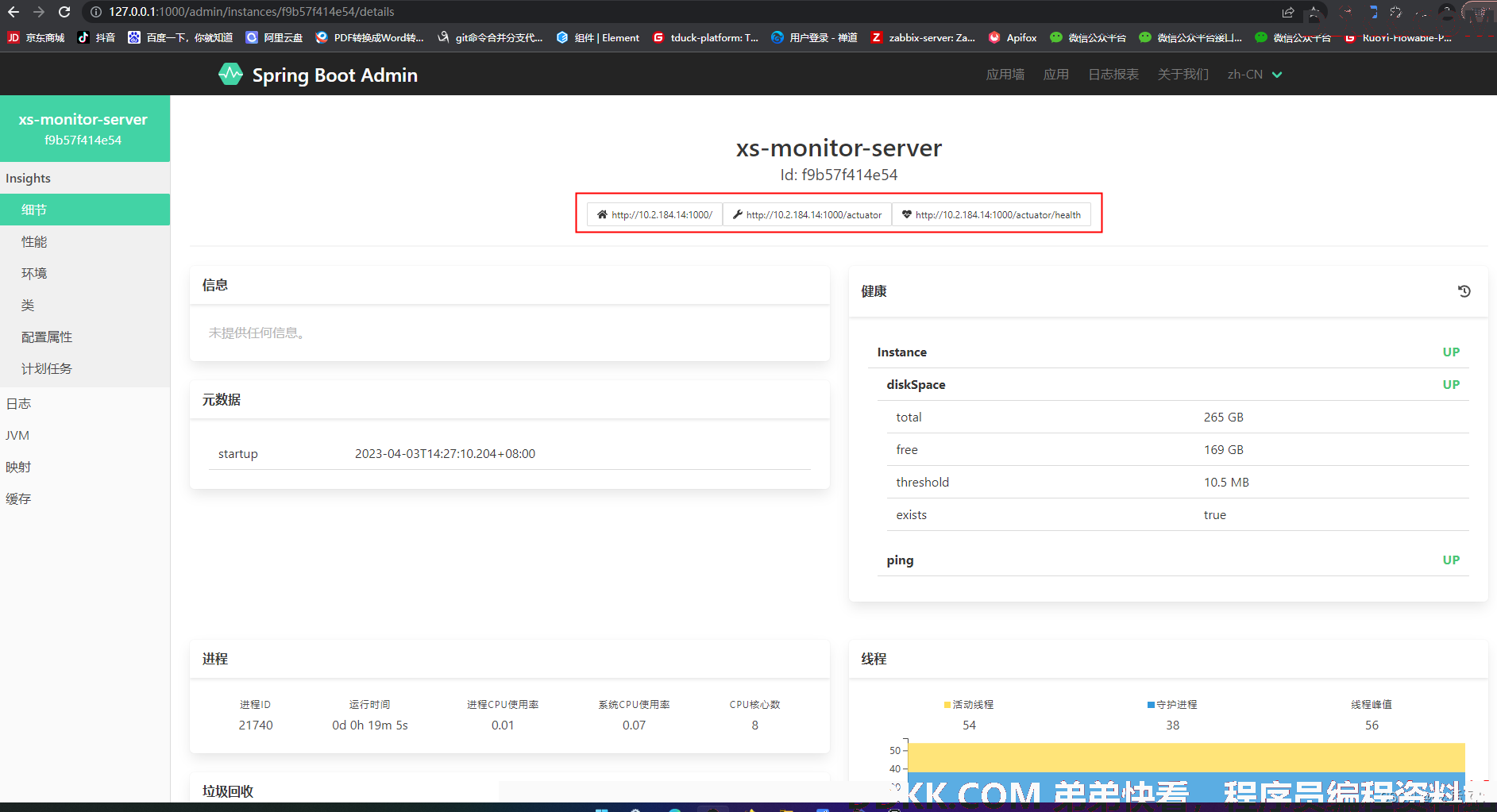

2.5 管理端查看

3 Client业务端整合

3.1 添加pom配置

业务端只需要client组件,不再需要Server端

<!--Spring Boot Admin 健康模块-->
<dependency>
    <groupId>de.codecentric</groupId>
    <artifactId>spring-boot-admin-starter-client</artifactId>
</dependency>
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-actuator</artifactId>
</dependency>

3.2 配置yaml参数

#配置
spring:
  application:
    name: xs-monitor-client
  profiles:
    active: dev
  boot:
    admin:
      client:
        url: http://localhost:1000/admin
       注册实例 优先使用IP
        instance:
          prefer-ip: true

# Actuator 监控端点的配置项
management:
  health:
    mail:
      enabled: false
  endpoints:
    web:
      base-path: /actuator
      exposure:
        include: '*'
  endpoint:
    health:
      show-details: always
    logfile:
      external-file: ${

     user.dir}/logs/${

     spring.profiles.active}/xs-monitor/xs-monitor-client/sys-console.log

3.3 新增Config配置

package com.xs.monitor.config;

import org.springframework.boot.autoconfigure.condition.ConditionalOnMissingBean;
import org.springframework.boot.autoconfigure.task.TaskExecutionAutoConfiguration;
import org.springframework.boot.task.TaskExecutorBuilder;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Lazy;
import org.springframework.scheduling.concurrent.ThreadPoolTaskExecutor;

import java.util.concurrent.Executor;
@Configuration
public class AdminServerConfig {



    @Lazy
    @Bean(name = TaskExecutionAutoConfiguration.APPLICATION_TASK_EXECUTOR_BEAN_NAME)
    @ConditionalOnMissingBean(Executor.class)
    public ThreadPoolTaskExecutor applicationTaskExecutor(TaskExecutorBuilder builder) {


        return builder.build();
    }
}
