04、Sharding-Sphere 实战：垂直分库，实现写入读取
概述：垂直分库即转库专用，不同的数据库中存放不同的表信息。比如学生和课程信息，我们将课程表存放与一个数据库中，学生信息存储于另一个库中，本章将介绍如何通过配置Sharding jdbc实现垂直分库操作。
环境：SpringBoot 2.2 + mybatis plus3.0 + Sharding jdbc4.0
需求：我们将用户表t_user 表存放在数据库user_db中。course表保持上一章节《03、Sharding-Sphere 实战：水平分库，实现写入读取》中的水平分库水平分表配置。我们在保存读取用户信息时在user_db库中操作，读写course表时在course_db_1、course_db_2表中操作。

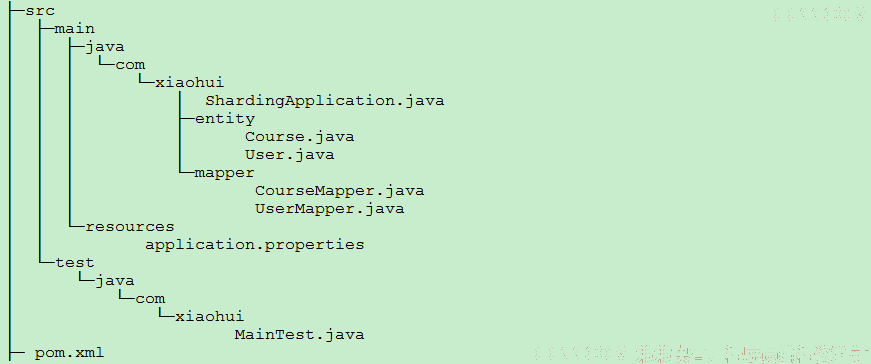

工程目录结构：
主要步骤：
1、 数据库环境准备；
2、 创建maven工程引入依赖；
3、 创建主启动类；
4、 创建业务代码；
5、 创建SpringBoot配置文件；
6、 编写测试类测试验证；
一、数据库环境准备
分表创建三个数据库 user_db、course_db_1、course_db_2。user_db库中创建t_user表，course_db12中分别创建course_1、course_2表
#课程表 course_1 course_2 结构一致
CREATE TABLE course_1 (
cid bigint(20) NOT NULL,
cname varchar(50) NOT NULL,
user_id bigint(20) NOT NULL,
cstatus varchar(10) NOT NULL,
PRIMARY KEY (cid)
) ENGINE=InnoDB DEFAULT CHARSET=utf8
#用户表
CREATE TABLE t_user (
user_id bigint(20) NOT NULL,
username varchar(50) NOT NULL,
ustatus varchar(50) NOT NULL,
PRIMARY KEY (user_id)
) ENGINE=InnoDB DEFAULT CHARSET=utf8
二、创建maven工程
pom.xml 引入相关依赖，内容如下：
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>org.sharding</groupId>
<artifactId>sharding</artifactId>
<version>1.0-SNAPSHOT</version>
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.2.2.RELEASE</version>
</parent>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
</dependency>
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>druid-spring-boot-starter</artifactId>
<version>1.1.20</version>
</dependency>
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>5.1.31</version>
</dependency>
<dependency>
<groupId>org.apache.shardingsphere</groupId>
<artifactId>sharding-jdbc-spring-boot-starter</artifactId>
<version>4.0.0-RC1</version>
</dependency>
<dependency>
<groupId>com.baomidou</groupId>
<artifactId>mybatis-plus-boot-starter</artifactId>
<version>3.0.2</version>
</dependency>
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>
</project>
三、创建主启动类
src/main/java/com/xiaohui/ShardingApplication.java
package com.xiaohui;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
@SpringBootApplication
@MapperScan("com.xiaohui.mapper")
public class ShardingApplication {
public static void main(String[] args) {
SpringApplication.run(ShardingApplication.class,args);
}
}
四、创建业务代码
编写数据库实体类以及表Dao层接口类，注意mybatis-plus 中接口层需要继承BaseMapper接口
src/main/java/com/xiaohui/entity/Course.java
package com.xiaohui.entity;
import lombok.Data;
@Data
public class Course {
private Long cid;
private String cname;
private Long userId;
private String cstatus;
}
由于user实体类与表名不匹配，所以需要使用mybatis-plus @TableName注解进行声明
package com.xiaohui.entity;
import com.baomidou.mybatisplus.annotation.TableName;
import lombok.Data;
@Data
@TableName(value="t_user")
public class User {
private Long userId;
private String username;
private String ustatus;
}
src/main/java/com/xiaohui/mapper/CourseMapper.java
package com.xiaohui.mapper;
import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.xiaohui.entity.Course;
import org.springframework.stereotype.Repository;
@Repository
public interface CourseMapper extends BaseMapper<Course> {
}
src/main/java/com/xiaohui/mapper/UserMapper.java
package com.xiaohui.mapper;
import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.xiaohui.entity.User;
import org.springframework.stereotype.Repository;
@Repository
public interface UserMapper extends BaseMapper<User> {
}
五、创建SpringBoot 配置文件(重点)
创建SpringBoot配置文件 application.properties
#sharding-jdbc 分片策略
#=================================数据源配置部分========================================
#数据源名称，多数据源以逗号分隔
spring.shardingsphere.datasource.names=ds0,ds1,ds2
#配置 ds0 ds1数据源具体内容
spring.shardingsphere.datasource.ds0.type=com.alibaba.druid.pool.DruidDataSource
spring.shardingsphere.datasource.ds0.driver-class-name=com.mysql.jdbc.Driver
spring.shardingsphere.datasource.ds0.url=jdbc:mysql://127.0.0.1:3306/course_db_1
spring.shardingsphere.datasource.ds0.username=root
spring.shardingsphere.datasource.ds0.password=root
spring.shardingsphere.datasource.ds1.type=com.alibaba.druid.pool.DruidDataSource
spring.shardingsphere.datasource.ds1.driver-class-name=com.mysql.jdbc.Driver
spring.shardingsphere.datasource.ds1.url=jdbc:mysql://127.0.0.1:3306/course_db_2
spring.shardingsphere.datasource.ds1.username=root
spring.shardingsphere.datasource.ds1.password=root
spring.shardingsphere.datasource.ds2.type=com.alibaba.druid.pool.DruidDataSource
spring.shardingsphere.datasource.ds2.driver-class-name=com.mysql.jdbc.Driver
spring.shardingsphere.datasource.ds2.url=jdbc:mysql://127.0.0.1:3306/user_db
spring.shardingsphere.datasource.ds2.username=root
spring.shardingsphere.datasource.ds2.password=root
#=================================数据节点配置部分======================================
#配置course表在数据库上的信息，在那些数据库里，以及库中的分表情况(tables 后面的course可以随便取名代表后面的匹配表)
spring.shardingsphere.sharding.tables.course.actual-data-nodes=ds$->{0..1}.course_$->{1..2}
spring.shardingsphere.sharding.tables.t_user.actual-data-nodes=ds$->{2}.t_user
#=================================数据库分库策略=======================================
# 配置默认的水平分库的策略 使用 user_id字段进行判断
#spring.shardingsphere.sharding.default-database-strategy.inline.sharding-column=user_id
#spring.shardingsphere.sharding.default-database-strategy.inline.algorithm-expression=ds$->{user_id % 2}
#数据库策略
spring.shardingsphere.sharding.tables.t_user.database-strategy.inline.sharding-column=user_id
spring.shardingsphere.sharding.tables.t_user.database-strategy.inline.algorithm-expression=ds2
# 配置course表的分库策略
spring.shardingsphere.sharding.tables.course.database-strategy.inline.sharding-column=user_id
spring.shardingsphere.sharding.tables.course.database-strategy.inline.algorithm-expression=ds$->{user_id % 2}
#=================================数据库分表策略========================================
#指定分片策略 约定cid值偶数添加到couse_1表，奇数添加到course_2表上
spring.shardingsphere.sharding.tables.course.table-strategy.inline.sharding-column=cid
spring.shardingsphere.sharding.tables.course.table-strategy.inline.algorithm-expression=course_$->{cid % 2 +1}
#表策略table-strategy
spring.shardingsphere.sharding.tables.t_user.table-strategy.inline.sharding-column=user_id
spring.shardingsphere.sharding.tables.t_user.table-strategy.inline.algorithm-expression=t_user
#==================================数据库字段生成策略====================================
###单表的水平拆分配置 指定course表里面主键cid的生成策略 SNOWFKAKE 雪花算法
spring.shardingsphere.sharding.tables.course.key-generator.column=cid
spring.shardingsphere.sharding.tables.course.key-generator.type=SNOWFLAKE
#字段生成策略key-generator
spring.shardingsphere.sharding.tables.t_user.key-generator.column=user_id
spring.shardingsphere.sharding.tables.t_user.key-generator.type=SNOWFLAKE
#==================================其他配置=============================================
#解决报错 Consider renaming one of the beans or enabling overriding...
spring.main.allow-bean-definition-overriding=true
#打开sql日志输出
spring.shardingsphere.props.sql.show=true
在垂直分库配置中主要声明部分在 数据节点配置中需要指定对应表所在的库。以及分库策略中配置对应的分库策略，以来实现专库专用。
spring.shardingsphere.sharding.tables.course.actual-data-nodes=ds$->{0..1}.course_$->{1..2}
spring.shardingsphere.sharding.tables.t_user.actual-data-nodes=ds$->{2}.t_user
spring.shardingsphere.sharding.tables.t_user.database-strategy.inline.sharding-column=user_id
spring.shardingsphere.sharding.tables.t_user.database-strategy.inline.algorithm-expression=ds2
spring.shardingsphere.sharding.tables.course.database-strategy.inline.sharding-column=user_id
spring.shardingsphere.sharding.tables.course.database-strategy.inline.algorithm-expression=ds$->{user_id % 2}
我们t_user表只有一个库所以我们在配置inline的分库表达式就直接写死为ds2库。
六、编写测试类测试验证
编写测试类：src/test/java/com/xiaohui/MainTest.java
package com.xiaohui;
import com.baomidou.mybatisplus.core.conditions.Wrapper;
import com.baomidou.mybatisplus.core.conditions.query.QueryWrapper;
import com.xiaohui.entity.Course;
import com.xiaohui.entity.User;
import com.xiaohui.mapper.CourseMapper;
import com.xiaohui.mapper.UserMapper;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;
import java.util.List;
@RunWith(SpringRunner.class)
@SpringBootTest
public class MainTest {
@Autowired
private CourseMapper courseMapper;
@Autowired
private UserMapper userMapper;
@Test
public void testUserAdd(){
User u = new User();
u.setUsername("王五");
u.setUstatus("1");
userMapper.insert(u);
}
@Test
public void testUserGet(){
QueryWrapper wrapper = new QueryWrapper<User>();
wrapper.eq("user_id", 563316786842304513L);
User user = userMapper.selectOne(wrapper);
System.out.println(user);
}
@Test
public void testCourseGet(){
QueryWrapper<Course> wrapper = new QueryWrapper<>();
wrapper.eq("cid",563102169142657024L);
wrapper.eq("user_id",102L);
Course course = courseMapper.selectOne(wrapper);
System.out.println(course);
}
@Test
public void testCourseDel(){
QueryWrapper<Course> wrapper = new QueryWrapper<>();
wrapper.eq("cid",557605627916976129L);
wrapper.eq("user_id",101L);
courseMapper.delete(wrapper);
}
}
- 执行新增测试方法testUserAdd(),控制台打印如下：
2023-02-02 10:59:47.944 INFO 8960 --- [ main] ShardingSphere-SQL : Logic SQL: INSERT INTO t_user ( username,ustatus ) VALUES ( ?,? )
2023-02-02 10:59:47.945 INFO 8960 --- [ main] ShardingSphere-SQL : Actual SQL: ds2 ::: INSERT INTO t_user (username, ustatus, user_id) VALUES (?, ?, ?) ::: [王五, 1, 563316786842304513]
通过sql 和数据库查看我们只在ds2即 user_db库中新增了一条数据。
执行查询用户测试方法testUserGet()，日志打印如下：
2023-02-02 11:08:57.926 INFO 8780 --- [ main] ShardingSphere-SQL : Logic SQL: SELECT user_id,username,ustatus FROM t_user WHERE user_id = ?
2023-02-02 11:08:57.927 INFO 8780 --- [ main] ShardingSphere-SQL : Actual SQL: ds2 ::: SELECT user_id,username,ustatus FROM t_user WHERE user_id = ? ::: [563316786842304513]
User(userId=563316786842304513, username=王五, ustatus=1)
- 执行课程查询方法，日志打印如下：
2023-02-02 11:12:56.141 INFO 7824 --- [ main] ShardingSphere-SQL : Rule Type: sharding
2023-02-02 11:12:56.143 INFO 7824 --- [ main] ShardingSphere-SQL : Logic SQL: SELECT cid,cname,user_id,cstatus FROM course WHERE cid = ? AND user_id = ?
2023-02-02 11:12:56.144 INFO 7824 --- [ main] ShardingSphere-SQL : Actual SQL: ds0 ::: SELECT cid,cname,user_id,cstatus FROM course_1 WHERE cid = ? AND user_id = ? ::: [563102169142657024, 102]
Course(cid=563102169142657024, cname=sql_2, userId=102, cstatus=1)
根据上面打印，均按照Sharding对应的配置规则进行正确的分库分表路由。成功的进行了新增以及查询操作。
