30、Kafka 实战 - Docker-compose部署Kafka集群

Docker-compose部署Kafka集群

删除Docker


#停止所有容器
docker stop $(docker ps -a -q)

#删除所有容器
docker rm $(docker ps -aq)

#删除所有镜像
docker rmi -f $(docker images -qa)

#删除旧Docker
sudo yum remove docker \
docker-client \
docker-client-latest \
docker-common \
docker-latest \
docker-latest-logrotate \
docker-logrotate \
docker-engine

安装Docker


#安装Docker
yum install docker -y

#启动Docker
service docker start

#停止Docker
service docker stop

#重启Docker
service docker restart

#配置Docker镜像加速器
sudo tee /etc/docker/daemon.json <<-'EOF'
{
    "registry-mirrors": ["https://mirror.ccs.tencentyun.com"]
}
EOF

#查看Docker运行状态
systemctl status docker

安装Docker-Compose

#安装docker-compose
curl -L https://get.daocloud.io/docker/compose/releases/download/1.29.2/docker-compose-uname \
-s-uname -m >` \
/usr/local/bin/docker-compose

chmod +x /usr/local/bin/docker-compose

docker-compose --version

上传Docker-Compose文件

docker-compose.yml

version: '3.1'

services:
  zookeeper:
    image: wurstmeister/zookeeper
    container_name: zookeeper
    ports:
      - 2181:2181
    environment:
      ZOOKEEPER_CLIENT_PORT: 2181
      ZOOKEEPER_TICK_TIME: 2000
      KAFKA_JMX_PORT: 39999
    restart: always

  kafka1:
    image: wurstmeister/kafka
    container_name: kafka1
    depends_on:
      - zookeeper
    ports:
      - 9092:9092
    environment:
      KAFKA_BROKER_ID: 0
      KAFKA_NUM_PARTITIONS: 2
      KAFKA_ZOOKEEPER_CONNECT: 81.68.232.188:2181 这里不能写zookeeper，要写ip
      KAFKA_ADVERTISED_LISTENERS: PLAINTEXT://81.68.232.188:9092 这里不能写zookeeper，要写ip
      KAFKA_LISTENERS: PLAINTEXT://0.0.0.0:9092
      KAFKA_OFFSETS_TOPIC_REPLICATION_FACTOR: 3
      KAFKA_GROUP_INITIAL_REBALANCE_DELAY_MS: 0
      KAFKA_JMX_PORT: 49999
    volumes:
      - /data/docker-compose/kafka/broker1/logs:/opt/kafka/logs
      - /var/run/docker.sock:/var/run/docker.sock
    restart: always

  kafka2:
    image: wurstmeister/kafka
    container_name: kafka2
    depends_on:
      - zookeeper
    ports:
      - 9093:9093
    environment:
      KAFKA_BROKER_ID: 1
      KAFKA_NUM_PARTITIONS: 2
      KAFKA_ZOOKEEPER_CONNECT: 81.68.232.188:2181 这里不能写zookeeper，要写ip
      KAFKA_ADVERTISED_LISTENERS: PLAINTEXT://81.68.232.188:9093 这里不能写zookeeper，要写ip
      KAFKA_LISTENERS: PLAINTEXT://0.0.0.0:9093
      KAFKA_OFFSETS_TOPIC_REPLICATION_FACTOR: 3
      KAFKA_GROUP_INITIAL_REBALANCE_DELAY_MS: 0
      KAFKA_JMX_PORT: 49999
    volumes:
      - /data/docker-compose/kafka/broker2/logs:/opt/kafka/logs
      - /var/run/docker.sock:/var/run/docker.sock
    restart: always

  kafka3:
    image: wurstmeister/kafka
    container_name: kafka3
    depends_on:
      - zookeeper
    ports:
      - 9094:9094
    environment:
      KAFKA_BROKER_ID: 2
      KAFKA_NUM_PARTITIONS: 2
      KAFKA_ZOOKEEPER_CONNECT: 81.68.232.188:2181 这里不能写zookeeper，要写ip
      KAFKA_ADVERTISED_LISTENERS: PLAINTEXT://81.68.232.188:9094 这里不能写zookeeper，要写ip
      KAFKA_LISTENERS: PLAINTEXT://0.0.0.0:9094
      KAFKA_OFFSETS_TOPIC_REPLICATION_FACTOR: 3
      KAFKA_GROUP_INITIAL_REBALANCE_DELAY_MS: 0
      KAFKA_JMX_PORT: 49999
    volumes:
      - /data/docker-compose/kafka/broker3/logs:/opt/kafka/logs
      - /var/run/docker.sock:/var/run/docker.sock
    restart: always

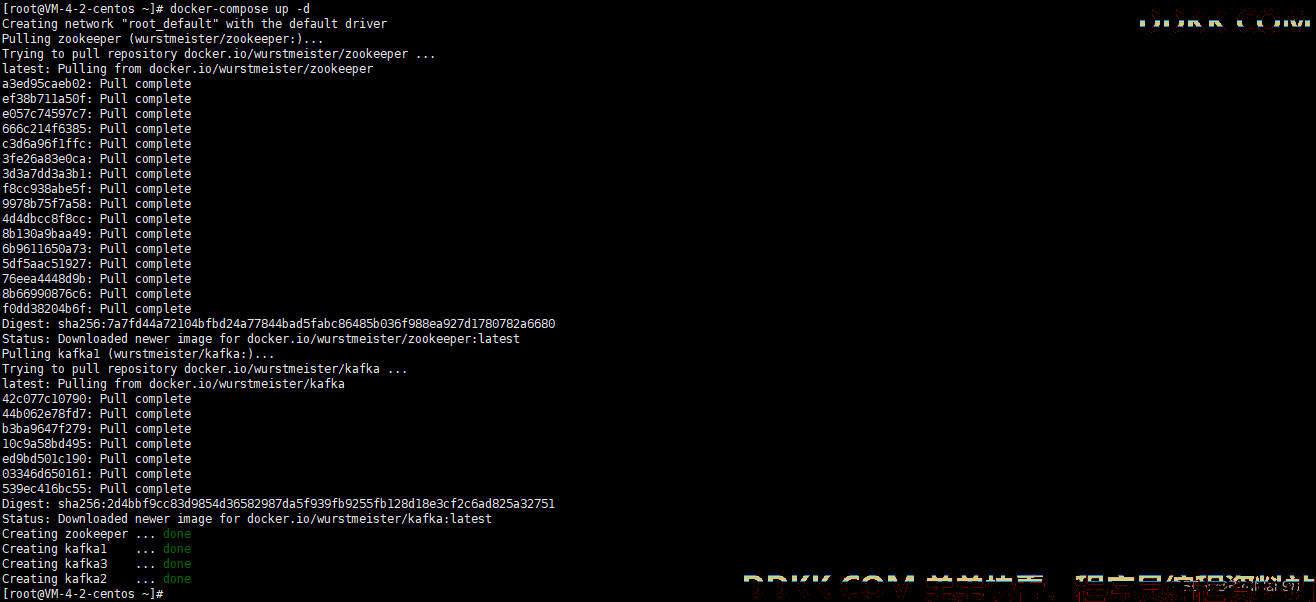

启动集群

cd /root

docker-compose up -d

docker ps

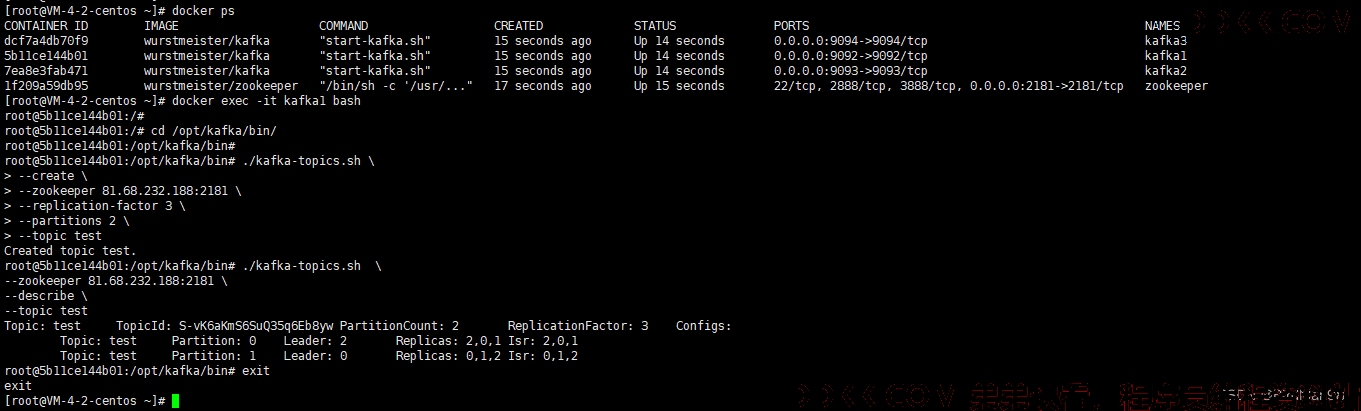

测试

  • 创建主题
docker exec -it kafka1 bash

cd /opt/kafka/bin/

./kafka-topics.sh \
--create \
--zookeeper 81.68.232.188:2181 \
--replication-factor 3 \
--partitions 2 \
--topic test
  • 查看主题
#查看主题详情
./kafka-topics.sh  \
--zookeeper 81.68.232.188:2181 \
--describe \
--topic test
  • 删除主题
./kafka-topics.sh  \
--delete \
--zookeeper 81.68.232.188:2181 \
--topic test



SpringBoot

可以连接SpringBoot做测试

  • YML
server:
  port: 80

spring:
  kafka:
    bootstrap-servers: 81.68.232.188:9092,81.68.232.188:9093,81.68.232.188:9094
    producer:
      retries: 3
      batch-size: 16384
      buffer-memory: 33554432
      acks: 1
      key-serializer: org.apache.kafka.common.serialization.StringSerializer
      value-serializer: org.apache.kafka.common.serialization.StringSerializer
    consumer:
      group-id: default-group
      enable-auto-commit: false
      auto-offset-reset: earliest
      key-deserializer:
        org.apache.kafka.common.serialization.StringDeserializer
      value-deserializer:
        org.apache.kafka.common.serialization.StringDeserializer
      max-poll-records: 500
    listener:
      ack-mode: MANUAL_IMMEDIATE
#  redis:
#    host: 172.16.253.21
  • POM
<parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>2.7.8</version>
    <relativePath/> <!-- lookup parent from repository -->
</parent>
....
<dependency>
    <groupId>org.springframework.kafka</groupId>
    <artifactId>spring-kafka</artifactId>
</dependency>
  • 生产者
@RestController
@RequestMapping("/msg")
public class MyKafkaController {



    private final static String TOPIC_NAME = "test";

    @Resource
    private KafkaTemplate<String,String> kafkaTemplate;

    @RequestMapping("/send")
    public String sendMessage(){


        kafkaTemplate.send(TOPIC_NAME,0,"key","this is a message!");
        return "send success!";
    }

}
  • 消费者

@Component
public class MyConsumer {



    @KafkaListener(topics = "test",groupId = "default-group")
    public void listenGroup(ConsumerRecord<String, String> record, Acknowledgment ack) {


        String value = record.value();
        System.out.println(value);
        System.out.println(record);
        //⼿动提交offset
        ack.acknowledge();
    }

//    @KafkaListener(groupId = "default-group",  topicPartitions = {


//            //@TopicPartition(topic = "test", partitions = {

      "0", "1" }),
//            @TopicPartition(topic = "test", partitions = "0",
//                    partitionOffsets = @PartitionOffset(partition = "1", initialOffset = "100"))
//    }, concurrency = "3") //concurrency就是同组下的消费者个数，就是并发消费数，建议⼩于等于分区总数
//    public void listenGroup(ConsumerRecord < String, String > record,
//                            Acknowledgment ack) {


//        String value = record.value();
//        System.out.println(value);
//        System.out.println(record);
//        //⼿动提交offset
//        ack.acknowledge();
//    }

}

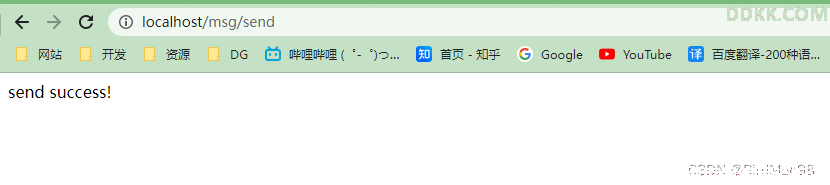

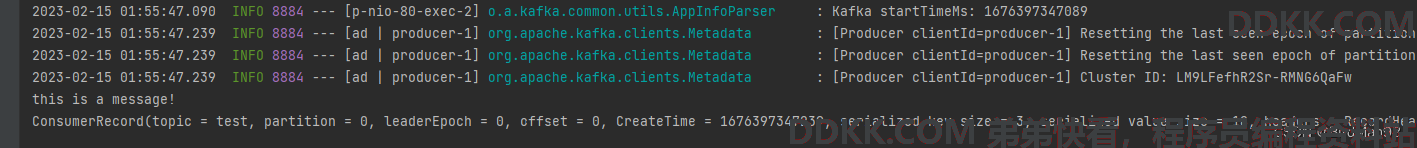

  • 测试
