PinPoint APM链路跟踪：监控报警 SpringCloud 服务
1、环境说明
spring boot 、spring cloud、mysql 、mybatis 、k8s、docker、redis、rocketmq
2、安装步骤
2.1 安装PinPoint
git clone https://github.com/pinpoint-apm/pinpoint-docker.git
cd pinpoint-docker
docker-compose pull && docker-compose up -d
安装过程
[root@monitor pinpoint-docker]# docker-compose pull && docker-compose up -dPulling pinpoint-mysql ... done
Pulling zoo1 ... done
Pulling pinpoint-hbase ... done
Pulling pinpoint-batch ... done
Pulling pinpoint-collector ... done
Pulling pinpoint-agent ... done
Pulling pinpoint-quickstart ... done
Pulling pinpoint-web ... done
Pulling zoo2 ... done
Pulling zoo3 ... done
Pulling jobmanager ... done
Pulling taskmanager ... done
Creating network "pinpoint-docker_pinpoint" with driver "bridge"
Creating volume "pinpoint-docker_data-volume" with default driver
Creating volume "pinpoint-docker_mysql_data" with default driver
Creating volume "pinpoint-docker_hbase_data" with default driver
Creating pinpoint-docker_zoo3_1 ... done
Creating pinpoint-docker_zoo2_1 ... done
Creating pinpoint-docker_zoo1_1 ... done
Creating pinpoint-mysql ... done
Creating pinpoint-flink-jobmanager ... done
Creating pinpoint-hbase ... done
Creating pinpoint-flink-taskmanager ... done
Creating pinpoint-batch ... done
Creating pinpoint-collector ... done
Creating pinpoint-web ... done
Creating pinpoint-agent ... done
Creating pinpoint-quickstart ... done
安装后启动的docker 容器
[root@datalink ~]# docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
fb54699553bf lihaixin/portainer "/portainer --templa…" 8 days ago Up 8 days 8000/tcp, 0.0.0.0:9000->9000/tcp, :::9000->9000/tcp portainer
e2ea6fab2277 pinpointdocker/pinpoint-batch:2.4.1 "sh /pinpoint/script…" 8 days ago Up 8 days pinpoint-batch
827ee01929f6 pinpointdocker/pinpoint-web:2.4.1 "sh /pinpoint/script…" 8 days ago Up 8 days 0.0.0.0:8080->8080/tcp, :::8080->8080/tcp, 0.0.0.0:9997->9997/tcp, :::9997->9997/tcp pinpoint-web
204c8526992f pinpointdocker/pinpoint-quickstart "catalina.sh run" 8 days ago Up 8 days 0.0.0.0:8085->8080/tcp, :::8085->8080/tcp pinpoint-quickstart
ff6d1a502934 pinpointdocker/pinpoint-agent:2.4.1 "/usr/local/bin/conf…" 8 days ago Up 8 days pinpoint-agent
5564d90ef82a pinpointdocker/pinpoint-collector:2.4.1 "sh /pinpoint/script…" 8 days ago Up 8 days 0.0.0.0:9991-9996->9991-9996/tcp, :::9991-9996->9991-9996/tcp, 0.0.0.0:9995-9996->9995-9996/udp, :::9995-9996->9995-9996/udp pinpoint-collector
c78f83d41893 pinpointdocker/pinpoint-flink:2.4.1 "/docker-bin/docker-…" 8 days ago Up 8 days 6123/tcp, 0.0.0.0:6121-6122->6121-6122/tcp, :::6121-6122->6121-6122/tcp, 0.0.0.0:19994->19994/tcp, :::19994->19994/tcp, 8081/tcp pinpoint-flink-taskmanager
7589edc596a1 pinpointdocker/pinpoint-flink:2.4.1 "/docker-bin/docker-…" 8 days ago Up 8 days 6123/tcp, 0.0.0.0:8081->8081/tcp, :::8081->8081/tcp pinpoint-flink-jobmanager
92425aa237df pinpointdocker/pinpoint-hbase:2.4.1 "/bin/sh -c '/usr/lo…" 8 days ago Up 8 days 0.0.0.0:16010->16010/tcp, :::16010->16010/tcp, 0.0.0.0:16030->16030/tcp, :::16030->16030/tcp, 0.0.0.0:60000->60000/tcp, :::60000->60000/tcp, 0.0.0.0:60020->60020/tcp, :::60020->60020/tcp pinpoint-hbase
3eab4570bf20 zookeeper:3.4.13 "/docker-entrypoint.…" 8 days ago Up 8 days 2888/tcp, 3888/tcp, 0.0.0.0:49154->2181/tcp, :::49154->2181/tcp pinpoint-docker_zoo3_1
f5eb8cb5aaa8 zookeeper:3.4.13 "/docker-entrypoint.…" 8 days ago Up 8 days 2888/tcp, 3888/tcp, 0.0.0.0:49153->2181/tcp, :::49153->2181/tcp pinpoint-docker_zoo1_1
637ae4c0084c zookeeper:3.4.13 "/docker-entrypoint.…" 8 days ago Up 8 days 2888/tcp, 3888/tcp, 0.0.0.0:49155->2181/tcp, :::49155->2181/tcp pinpoint-docker_zoo2_1
bc67523a7afe pinpointdocker/pinpoint-mysql:2.4.1 "docker-entrypoint.s…" 8 days ago Up 8 days 0.0.0.0:3306->3306/tcp, :::3306->3306/tcp, 33060/tcp pinpoint-mysql

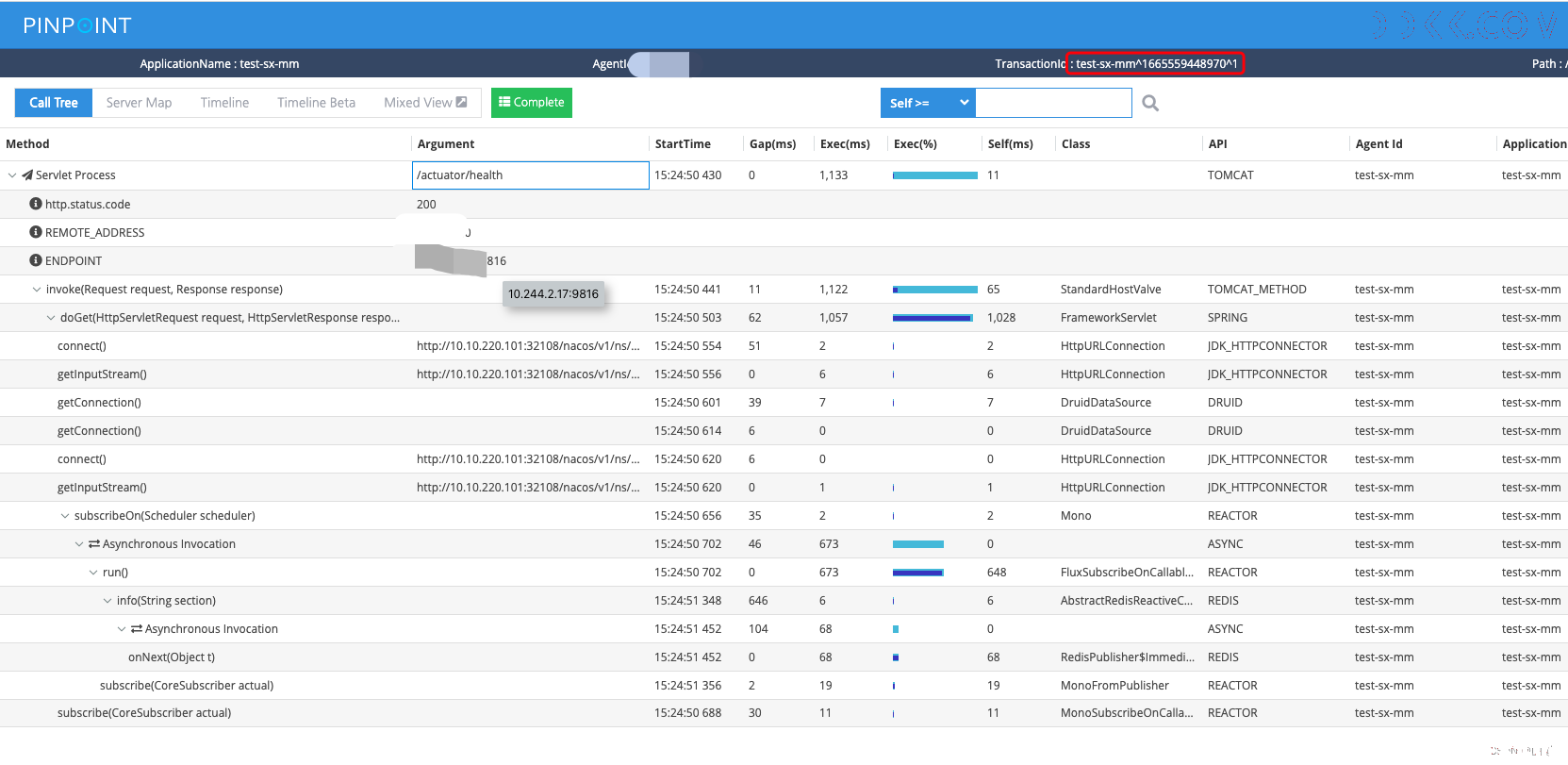

进入到web页面效果
2.2 安装agent

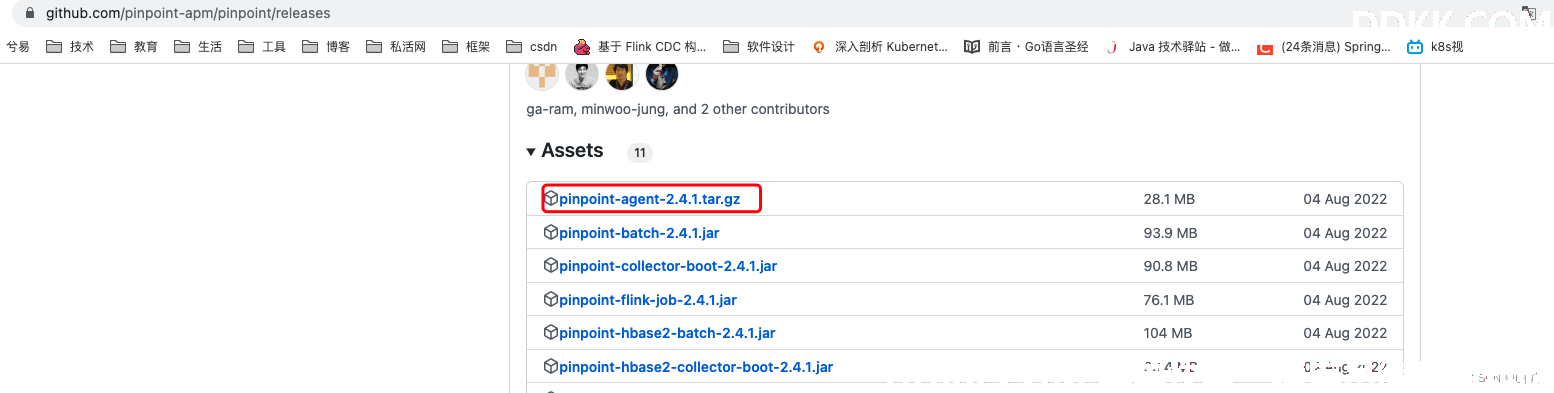

2.2.1 下载
2.2.2 agent配置
下载，解压后进入/pinpoint-agent-2.4.1/profiles目录，复制release文件夹，新增dev,prod,test文件夹
一个环境一个文件夹。
修改以下配置
1.收集服务的ip
profiler.transport.grpc.collector.ip=10.50.10.xx
profiler.collector.ip=10.50.10.xx
2.指定采集的是Tomcat或者Spring boot等
profiler.applicationservertype=SPRING_BOOT
3.if it's COUNTING(the default), then 1 out of n transactions will be sampled where n is the rate.
# eg. 1: 100% 20: 5% 50: 2% 100: 1%
profiler.sampling.counting.sampling-rate=1
4.数据采样率，搜集数据的比率，默认为20即为1/20 5%，如想改为100%即设为1
profiler.sampling.rate=1
2.2.3 JVM 配置
把刚下载配置好的agent文件夹放到基础镜像中，然后在打镜像的时候配置以下几个参数
<jvmFlag>-javaagent:/pinpoint-agent/pinpoint-bootstrap-2.4.1.jar</jvmFlag>
<jvmFlag>-Dpinpoint.agentId=${project.artifactId}</jvmFlag>
<jvmFlag>-Dpinpoint.applicationName=${project.artifactId}</jvmFlag>
<jvmFlag>-Dpinpoint.profiler.profiles.active=${spring.profiles.active}</jvmFlag>
2.2.4 日志中输出traceId
公司使用的slf4j实现类库是logback，如果你使用的是log4j的话，Pinpoint也提供了类似的配置项，大家可以自行查阅配置。
1、 设置配置项；
// 配置项在pinpoint.config中
profiler.logback.logging.transactioninfo = true
2、 修改日志输出pattern，增加[%X{PtxId:-0}]；
<property name="log.pattern" value="%d{HH:mm:ss.SSS} [%thread] %-5level %logger{20} - [%method,%line]-[%X{PtxId:-0}] - %msg%n" />

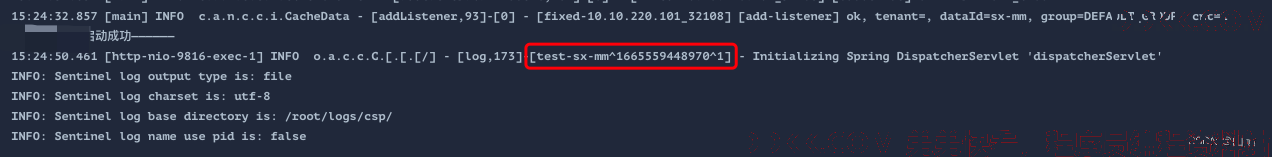

3、 效果；
3、部署问题
3.1 多个相同名称的项目放在一个pinpoint下监控
解决方法：给相同项目指定不同的agentId和applicationName，如：
<jvmFlag>-javaagent:/pinpoint-agent/pinpoint-bootstrap-2.4.1.jar</jvmFlag>
<jvmFlag>-Dpinpoint.agentId=${
spring.profiles.active}-${
project.artifactId}</jvmFlag>
<jvmFlag>-Dpinpoint.applicationName=${
spring.profiles.active}-${
project.artifactId}</jvmFlag>
<jvmFlag>-Dpinpoint.profiler.profiles.active=${
spring.profiles.active}</jvmFlag>
3.2 agent id 过长问题（最大长度不能超过24个字符）
pinpoint invalid Id. SystemProperties(-D) applicationName can only contain [a-zA-Z0-9], '.', '-', '_'. maxLength:24
3.2 k8s 多个副本pod ，agentId重复
解决方法：去掉pinpoint.agentId的配置，让agent自动生成agentId
